The ARK-1124C-S1A2 provides:

• 1 x VGA (up to 2048 x 1280 @ 60Hz)
• 4 x RS-232/422/485 serial ports with auto flow control
• 2 x USB 3.0
• 1 x GbE LAN (10/100/1000 Mbps, Intel i210, supports Wake on LAN)
• Audio line-out and line-in (Realtek ALC888S High Definition Audio)
• 1 x lockable DC jack power input

The ARK-1124C uses a 12V lockable DC jack power input (AT/ATX power type). Minimum power input is 12V at 3A, and the included power adapter is AC to DC, 12V/3A, 36W with a lockable DC jack. Typical power consumption is 5.5W, with a maximum of 10.2W. An optional 12~24V power module is available (via the AMO-P011 module, dual layer).

With extended temperature peripherals, the ARK-1124C operates from -20 to 60°C (-4 to 140°F) with 0.7m/s air flow. If a 2.5-inch hard disk is installed, the operating range is reduced to 0 to 40°C (32 to 104°F) with 0.7m/s air flow. Storage temperature is -40 to 85°C. The unit carries CE/FCC Class B, CCC, and BSMI EMC certifications, and UL, CB, CCC, and BSMI safety certifications. It is also RoHS compliant.

The ARK-1124C supports:

• DDR3L 1866 MHz memory, up to 8GB, via 1 x 204-pin SO-DIMM socket
• 1 x 2.5" SATA III drive bay (compatible with 9.5mm height drives)
• 1 x half-size mSATA (by CTOS or T-PN)
• 1 x full-size miniPCIe slot for WLAN/WWAN communication modules
• Optional iDoor expansion module (2nd layer)

The ARK-1124C supports Microsoft Windows 10 IoT Enterprise LTSB and Linux (support by project). An optional embedded OS part number (Win10 IoT Ent LTSC 2019 64bit ENG) is also available for order.

The ARK-1124C measures 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") and weighs 0.7 Kg (1.55 lb). It has an aluminum housing and supports optional DIN-Rail, Wall, and VESA mounting kits.

The ARK-1124C-S1A2 uses an Intel Celeron N3350 Dual Core SoC running at 1.1 GHz with turbo burst up to 2.4 GHz, and 2 MB L2 cache. It uses the AMI EFI 64-bit BIOS and Intel HD Graphics 500, which supports 4K codec decode and encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265/HEVC, VP8, and JPEG/MJPEG.

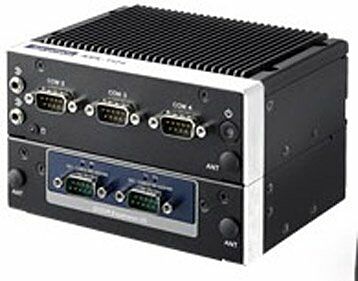

Yes. The ARK-1124C is Advantech iDoor module compatible and supports a dual-layer expansion option using the AMO-1101 mechanical kit. Available iDoor modules include CANBus, parallel LPT, USB, Giga LAN, isolated CANBus, isolated DI/DO, high speed COM, isolated RS-232/RS-422/485, and dual Intel I210 GbE LAN modules. An optional 12-24V DC input power module (AMO-P011) is also available for the expansion layer.
