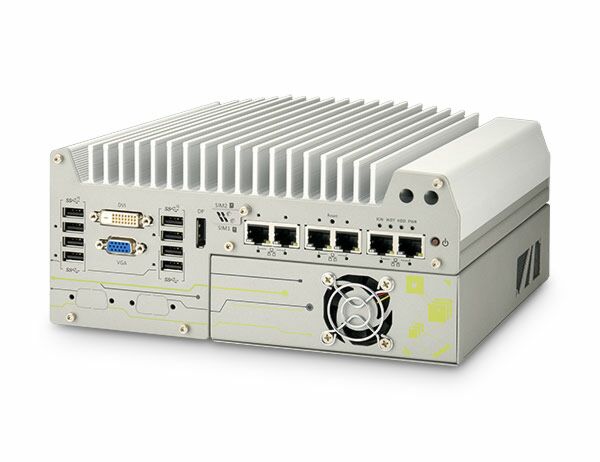

Nuvo-7168GC: Rugged Platform Supporting NVIDIA RTX A2000
Nuvo-7168GC SeriesStarting at $1,735.00
- Supports NVIDIA® RTX A2000 GPU
- -25°C to 60°C wide-temperature operation
- Intel® 9th/ 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
- 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
- M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Accommodates two 2.5” SATA HDD/ SSD with RAID 0/ 1 support
- MezIO™ interface for easy function expansion
Frequently Asked Questions
The system provides the following I/O:
- 6x Gigabit Ethernet ports (by I219 and I210 controllers), with ports 3-6 offering optional IEEE 802.3at PoE+ (100 W total power budget)
- 4x USB 3.1 Gen2 (10 Gbps) ports and 4x USB 3.1 Gen1 (5 Gbps) ports
- 1x VGA (1920x1200), 1x DVI-D (1920x1200), and 1x DisplayPort (up to 4096x2304)
- 2x software-programmable RS-232/422/485 ports (COM1/COM2) and 2x RS-232 ports (COM3/COM4)
- 1x 3.5 mm audio jack for mic-in and speaker-out
- 1x MezIO™ expansion port for additional I/O modules
The Nuvo-7168GC accepts 8-35V DC input through a 3-pin pluggable terminal block. There is also a separate 3-pin pluggable terminal block for remote control and PWR LED output.
Operating temperature depends on CPU configuration and GPU installation:
- With a 35W CPU and RTX A2000: -25°C to 60°C
- With a 65W CPU and RTX A2000, configured in 35W TDP mode: -25°C to 60°C
- With a 65W CPU and RTX A2000, configured in 65W TDP mode: -25°C to 50°C
Storage temperature is -40°C to 85°C, humidity 10%-90% non-condensing. Note: for i7-9700E and i7-8700 running at 65W mode, the highest operating temperature is limited to 50°C and thermal throttling may occur under sustained full load; CPU power can be configured in BIOS for higher operating temperature. A wide-temperature HDD or SSD is required for sub-zero operation.
The system meets CE/FCC Class A EMC standards per EN 55032 and EN 55035. It is also rated for MIL-STD-810G vibration (Method 514.6, Category 4) and shock (Method 516.6, Procedure I, Table 516.6-II) under operating conditions.
The system supports:
- 2x internal SATA ports for 2.5" HDD/SSD installation, with RAID 0/1 support
- 1x M.2 2280 M key NVMe socket (PCIe Gen3 x4) for NVMe SSD installation, supporting over 2000 MB/s read/write speeds
- 1x full-size mSATA port (mux with mini-PCIe)
- 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
- 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with a selected M.2 LTE module
- 1x PCIe x16 slot @Gen3, 16-lane PCIe signal in Cassette for installing the RTX A2000 GPU
- Up to 64 GB DDR4 2666/2400 SDRAM across two SODIMM slots
Yes. It has an M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with a selected M.2 LTE module. There is also a full-size mini PCI Express socket with an internal SIM socket (mux with mSATA) for additional wireless expansion.
The Nuvo-7168GC supports the NVIDIA RTX A2000 GPU (delivering 8 TFLOPS FP32 compute) via a PCIe x16 Gen3 slot with 16-lane PCIe signal routed through the Cassette module. It supports Intel 9th/8th-Gen Core hexa-core LGA1151 CPUs (35W/65W TDP), including i7-9700E/i7-9700TE/i7-8700/i7-8700T, i5-9500E/i5-9500TE/i5-8500/i5-8500T, and i3-9100E/i3-9100TE/i3-8100/i3-8100T, on the Intel Q370 platform controller hub.
The Nuvo-7168GC measures 240 mm (W) x 225 mm (D) x 111 mm (H) and weighs 4.5 kg. It uses a wall-mount mounting bracket. A patented damping bracket assembly is also available as an optional accessory for this and related Nuvo GC-series models.
The MezIO™ expansion port supports several optional modules, including:
- MezIO-C180: 4x RS-232/422/485 ports and 4x RS-232 ports
- MezIO-C181: 4x RS-232/422/485 ports and 4x RS-422/485 ports
- MezIO-D220: 8-CH isolated digital input and 8-CH isolated digital output
- MezIO-D230: 16-CH isolated digital input and 16-CH isolated digital output
- MezIO-V20-EP: ignition power control function for in-vehicle applications
- MezIO-U4: 4x USB 3.1 ports
- MezIO-G4: 4x GigE ports
- MezIO-G4P: 4x IEEE 802.3at PoE+ ports (only supported on Nuvo-7168GC-PoE)
| Manufacturer | Neousys |
|---|---|
| Short Description | Nuvo-7168GC series is a ruggedized AI inference platform supporting NVIDIA® RTX A2000 GPU which offers better longevity for industrial AI inference applications, such as machine vision inspection, machine automation, and intelligent video analytics. |
| Processor | Supporting Intel® 9th/ 8th Gen Core™ CPU (LGA1151 socket, 65W/35W TDP) |
| Graphics | Integrated Intel® UHD graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| Chipset | Intel® Q370 platform controller hub |
| AMT | Supports AMT 12.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for port 3 ~ port 6 100 W total power budget |
| Video Port | 1x VGA , supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signal in Cassette for installing RTX A2000 GPU |
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen3 x4) for NVMe SSD installation 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| SATA HDD | 2x internal SATA ports for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 1x 3-pin pluggable terminal block for 8 - 35V DC input |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 Kg |
| Mounting | Wall-mount mounting bracket |
| Operating Temperature | with 35W CPU and RTX A2000 -25°C ~ 60°C ** with 65W CPU and RTX A2000 -25°C ~ 60°C */ ** (configured as 35W TDP mode) -25°C ~ 50°C */ ** (configured as 65W TDP mode) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Cores | 12 |
| CPU Family | Intel Core |
| Base CPU Speed | 3.1 to 3.5 GHz |
| Video Output | Display Port, DVI-D, VGA |
| PoE Ports | 4 |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 3.1 | 5-8 |
| Max Memory | 64 GB |
| Effective Memory Speed | 2666 MHz |
| Form Factor | Fanless |
| On/Ignition | Remote On/Off |
