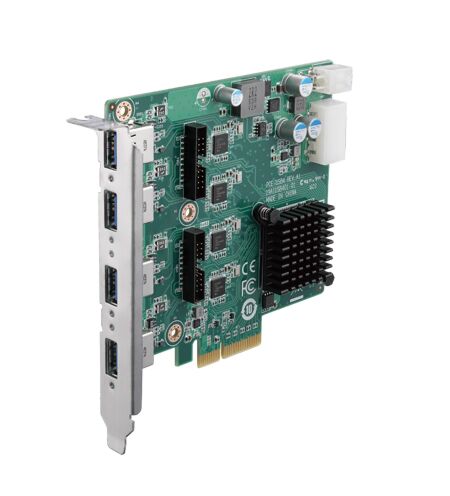

PCI Express x4, 4/8-Port USB 3.0 Expansion Card

PCE-USB4-00A1E-1

Starting at $240.00

Main Features

  • Four USB 3.0 host controllers
  • Support 1500mA Max. Current per Port
  • Supports four or eight USB 3.0 ports
  • 3 Ports with Locking connector compliant with USB3 Vision V1.0 Standard-A
  • Compliant with USB 3.0 Specification and Intel® xHCI Specification, Revision 1.0
  • PCI Express x4 interface
  • Supports Microsoft Windows 7/8.1 and Linux operating systems
PDF Document - Data Sheet PCE-USB SERIES
Data Sheet PCE-USB SERIES
(Size: 609.8 KB)

System Configuration


* Selection required

Your Configuration
communication card for industrial environments
PCI Express x4, 4/8-Port USB 3.0 Expansion Card

In stock

$240.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

PCE-USB4 is a 4-port PCIe x4 expansion card aimed at industrial imaging applications. Featuring four independent Renesas μPD720202 USB 3.0 host controllers, a Gen 2 PCI Express® x4 interface, and a per-port bandwidth of 5 Gbps when operating four ports simultaneously, PCE-USB4 delivers maximal per-port performance. PCE-USB4 features four USB 3.0 ports (for expansion, PCE-USB8 features eight USB 3.0 ports) with 1500 mA current to ensure stable power for external USB devices. PCE-USB4 is a high-bandwidth industrial-power expansion card designed for machine vision, factory automation, and medical applications, as well as any other applications that require high data transfer speeds.
PDF Document - Data Sheet PCE-USB SERIES
Data Sheet PCE-USB SERIES
(Size: 609.8 KB)
Specifications
ManufacturerAdvantech
USB 3.03-4, 5-6, 7+
Operating SystemWindows 7, Windows 10, Linux
Operating Temperature

0 ~ 60 °C

Storage Temperature-40 ~ 85 °C
Dimension118 x 111 mm (4.64" x 4.37")
