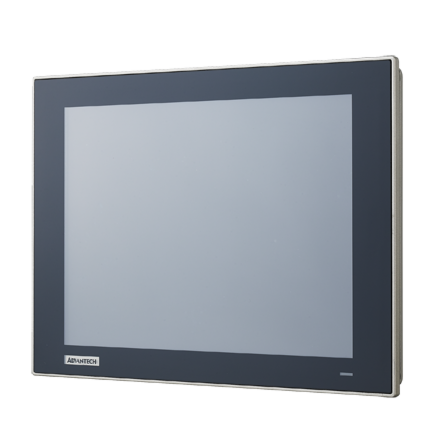

12" XGA TFT LED LCD Thin-Client Terminal with Intel Atom/Celeron
TPC-1251T (B)Starting at $1,450.00
- Industrial-grade 12" XGA TFT LCD with 50K lifetime and LED backlight
- Intel Atom E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Advantech iDoor technology and SSD/HDD bay
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports VESA mount (100 x 100 mm)
- Supports Advantech’s SNMP Subagent software
- Supports Advantech’s WISE-PaaS/RMM remote management software
Frequently Asked Questions
The unit provides the following I/O:
- 1 x RS-232
- 1 x RS-232/422/485
- 1 x USB 3.0
- 3 x USB 2.0
- 2 x Intel I210 10/100/1000 BASE-T LAN ports
- 1 x iDoor expansion slot
- 1 x Antenna port
- 1 x Power input
The rear panel also includes an HDD/SSD bay access point.
The TPC-1251T(B) takes 24 VDC +/- 20% power input. Power consumption is listed as TBD in the datasheet. An optional 60 W, 24 VDC / 2.5 A external power supply (PWR-247-CE) is available, along with regional power cables (US, EU, UK, China/Australia).
The unit is rated for an operating temperature of -20 ~ 60 °C (-4 ~ 140 °F) and a storage temperature of -30 ~ 70 °C (-22 ~ 158 °F). Humidity tolerance is 10 ~ 95% RH at 40 °C, non-condensing. The front panel is IP66-rated, and the unit has a fanless, sealed design suited for industrial environments.
The TPC-1251T(B) is certified BSMI, CCC, CE, FCC Class A, and UL.
The system ships with 1 x SODIMM slot populated with 4 GB DDR3L SDRAM, expandable up to 8 GB. It supports 1 x 2.5" SATA SSD in the internal storage bay, plus a full-size mini PCIe slot that supports mSATA signals and Advantech iDoor technology for additional expansion modules (e.g., fieldbus, isolated DIO, additional LAN, or wireless).
The TPC-1251T(B) supports Microsoft Windows Embedded Standard 7 (WES7, 32/64-bit), Windows 7 (32/64-bit), and Windows 10 Enterprise LTSB. Advantech also offers pre-built embedded OS images, including WS7P x86/x64 MUI images and a Win10 x64 LTSC image.
The unit measures 311.8 x 238 x 55.4 mm (12.28 x 9.37 x 2.18 in) and weighs 3.12 kg (6.88 lb). It supports desktop, wall, or panel mounting, and includes a 100 x 100 mm VESA mount option. Panel cutout dimensions are 303 x 229 mm (11.93 x 9.02 in).
The base unit does not include built-in wireless or cellular hardware, but the mini PCIe/iDoor expansion slot and antenna port allow adding 3G/GPS/GPRS/Wi-Fi communication modules through Advantech's iDoor technology.
The TPC-1251T(B) uses a true-flat 5-wire analog resistive touchscreen with a lifespan of 36 million touches at a single point and light transmission above 75%. The 12" XGA TFT LED LCD has a max resolution of 1024 x 768, 16.2M colors, 600 cd/m2 luminance, a 178/178 viewing angle, 1000:1 contrast ratio, and 50,000-hour backlight life.
How-to Guides
- Power off the unit and disconnect the power supply.
- Access the SODIMM slot inside the chassis.
- Remove the existing 4 GB DDR3L SODIMM module if upgrading.
- Install a compatible DDR3L SODIMM module, up to 8 GB maximum supported capacity.
- Reassemble the chassis and reconnect power.
- Power off the unit and disconnect the power supply.
- Open the HDD/SSD bay (item A on the rear view).
- Insert the 2.5" SATA SSD into the bay.
- Secure the drive and close the bay cover.
- Reconnect power and boot the system.
- Power off the unit and disconnect the power supply.
- Locate the iDoor slot (item B on the rear view), which uses the full-size mini PCIe slot with mSATA support.
- Install the desired iDoor module, such as a fieldbus, isolated digital I/O, additional LAN, or communication module.
- Connect any required external antenna to the antenna port (item H) if the module requires wireless connectivity.
- Reassemble the chassis and reconnect power.
- Choose a mounting method: desktop, wall, panel, or VESA (100 x 100 mm).
- For panel mounting, prepare a cutout of 303 x 229 mm (11.93 x 9.02 in) in the mounting surface.
- Insert the unit into the cutout or attach using the VESA mount kit as appropriate.
- Secure the unit according to the selected mount hardware.
- Connect power and I/O cables to the rear panel.
The TPC-1251T(B) thin-client terminal is the next-generation model of Advantech’s TPC-1251T(A) industrial panel PC. Equipped with a 12" XGA TFT LED LCD, low-power Intel Atom E3845, 1.91GHz, quad-core processor, and 4 GB of DDR3L SDRAM, TPC-1251T(B) delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-1251T(B) supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with an IP66-rated front panel, a die-cast aluminum alloy front bezel, and a 100 x 100 VESA mount kit. Moreover, with the provision of a full-size mini PCIe slot that supports mSATA signals and Advantech’s iDoor technology, TPC-1251T(B) can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 3G/GPS/GPRS/Wi-Fi communication capabilities.
| Manufacturer | Advantech |
|---|---|
| Short Description | The TPC-1251T(B) thin-client terminal is the next-generation model of Advantech’s TPC-1251T(A) industrial panel PC. Equipped with a 12" XGA TFT LED LCD, low-power Intel Atom E3845, 1.91GHz, quad-core processor, and 4 GB of DDR3L SDRAM, TPC-1251T(B) delivers high-performance computing in a compact, fanless system. |
| CPU Cores | 4 |
| CPU Family | Intel Atom |
| Base CPU Speed | Under 2.0 Ghz |
| Resolution | 1024 x 768 |
| Screen Size | 10.1-15" |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 3-4 |
| USB 3.0 | 1-2 |
| Max Memory | 4 GB, 8 GB |
| Operating System | Windows 7, Windows 10 |
| Form Factor | Panel PC |
| Native Storage Type | 2.5" SSD |
| BIOS | AMI UEFI |
| Certification | BSMI, CCC, CE, FCC Class A, UL |
| Cooling System | Fanless design |
| Enclosure | Front bezel: Die-cast aluminum alloy Back housing: SECC |
| Mounting | Desktop/wall/panel |
| CPU | Intel® Atom™ E3845, 1.91 GHz, quad core |
| Memory | 1 x SODIMM with 4 GB DDR3L SDRAM (up to 8 GB)1 x 2.5" SATA SSD |
| Storage | 1 x 2.5" SATA SSD |
| Network (LAN) | 2 x Intel® I210; 10/100/1000 BASE-T |
| I/O | 1 x RS-232 1 x RS-232/422/485 1 x USB 3.0 3 x USB 2.0 1 x iDoor slot |
| Watchdog TImer | 1 ~ 255 sec (system) |
| Display Type | XGA TFT LED LCD |
| Display Size | 12" |
| Max Resolution | 1024 x 768 |
| Max Colors | 16.2M |
| Luminance | 600 cd/m2 |
| Viewing Angle | 178/178 |
| Backlight Lifetime | 50,000 hr |
| Contrast Ratio | 1000:1 |
| Light Transmission | Above 75% |
| Resolution | Linearity |
| Type | 5-wire analog resistive |
| Humidity | 10 ~ 95% RH @ 40 °C, non-condensing |
| Ingress Protection | IP66-rated front panel |
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -30 ~ 70 °C (-22 ~ 158 °F) |
| Vibration Protection | With SSD: 1 Grms (5 ~ 500 Hz) (operating, random vibration) |
| Power Input Voltage | 24 VDC +/- 20% |
| Power Consumption | TBD |
| OS Support | Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit), Windows 10 Enterprise LTSB |
| Weight | 3.12 kg (6.88 lb) |
| Dimension | 311.8 x 238 x 55.4 mm (12.28 x 9.37 x 2.18 in) |
