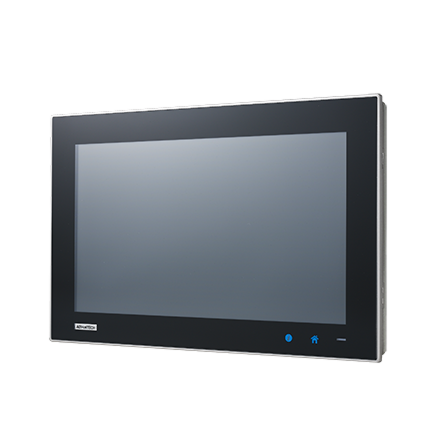

15.6" WXGA TFT LED LCD Thin-Client Terminal with Intel Atom Processor

TPC-1551WP
$1,380.00

Main Features

  • Industrial-grade 15.6" WXGA TFT LCD with 50K lifetime and LED backlight
  • Intel® Atom™ E3827 1.75 GHz dual-core processor with 4 GB DDR3L SDRAM
  • 16:9 widescreen display with PCAP multi-touch control
  • IP66-rated front panel and panel mount
  • Built-in intelligent home key and iKey for intuitive operation
  • Front-facing LED indicators to show operating status
  • Supports Advantech’s iDoor technology for integrating optional accessories
  • Chassis grounding protection
  • Anti-scratch surface with 7H hardness
  • Supports AC/DC input with optional power adapter
  • Supports Advantech’s SNMP Subagent software
  • Supports Advantech’s WISE-PaaS/RMM remote management software
PDF Document - TPC-1551WP Data Sheet
TPC-1551WP Data Sheet
(Size: 2.1 MB)
The TPC-1551WP thin-client terminal is equipped with a 15.6" SXGA TFT LCD, low-power Intel® Atom™ E3827 1.75 GHz dual-core processor, and 4 GB DDR3L SDRAM to deliver sufficient computing performance in a compact, fanless system. For enhanced durability, TPC-1551WP features a true-flat touchscreen with IP66-rated front panel, die cast aluminum alloy front bezel, and projected capacitive touch control. Because of the system’s compact but robust design, it can be easily deployed into existing infrastructure. Moreover, Advantech’s iDoor technology can be integrated via the mini PCIe slot in order to provide additional I/O connectors, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM to support diverse industrial automation applications.
PDF Document - TPC-1551WP Data Sheet
TPC-1551WP Data Sheet
(Size: 2.1 MB)
Specifications
ManufacturerAdvantech
CPU FamilyIntel Atom
Base CPU SpeedUnder 2.0 Ghz
Resolution1366 x 768
Screen Size15.1-19"
LAN Ports1-4
USB 2.01-2
USB 3.01-2
Max Memory4 GB, 8 GB
Operating SystemWindows 7, Windows 10
Effective Memory Speed1600 MHz
Form FactorFanless
Native Storage Type2.5" SSD
BIOSAMI UEFI
CertificationBSMI, CCC, CE, FCC Class A, UL
Cooling SystemFanless design
Enclosure

Front bezel: Die cast aluminum alloy
Back housing: SECC

MountingDesktop, wall, and panel mount
CPUIntel® Atom™ E3827 1.75 GHz Processor
Memory4 GB (Optional 8 GB) DDR3L 1600 MHz SODIMM SDRAM
Storage

1 x CFast

1 x 2.5" SATA SSD (optional)

Network (LAN)2 x 10/100/1000BASE-T
I/O

1 x RS-232
1 x RS-232/422/485
1 x USB 3.0
1 x USB 2.0

Expansion Slots 1 x Full-size mini PCIe
Watchdog TImer1 ~ 255 sec (system)
Display TypeWXGA TFT LED LCD
Display Size15.6"
Max Resolution1366 x 768
Max Colors16.7M
Luminance400
Viewing Angle170/160
Backlight Lifetime50,000 hr
Contrast Ratio500:1
Light Transmission90% ± 3%
Resolution 2048 x 2048 dot
TypeProjected capacitive
Humidity

10 ~ 95% RH @ 40 °C, non-condensing

Ingress ProtectionFront panel: IP66
Operating Temperature 0 ~ 55 °C (32 ~ 131 °F)
Storage Temperature-20 ~ 60 °C (-4 ~ 140 °F)
Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)

Power Input Voltage24 VDC ± 20%
Power Consumption48 W (Typical)
OS Support

Microsoft® WES7 (32/64-bit),

Windows 7 (32/64-bit),

Windows 10 Enterprise LTSB

Weight5 Kg (11.02 lbs)
Dimension419.7 x 269 x 61.9 mm (16.52 x 10.59 x 2.44 in)
