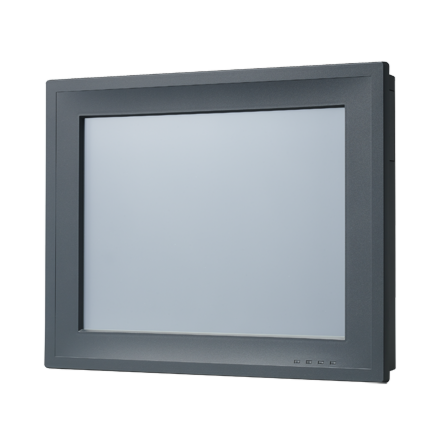

15" Fanless Panel PC with Intel Atom Quad-Core Processor
PPC-3150Starting at $1,575.00
- 15" XGA TFT LCD with resistive touchscreen
- Intel Atom E3845 quad-core, 1.91 GHz, processor
- Fanless, slim design
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level)
Frequently Asked Questions
The PPC-3150 provides the following I/O:
- 4 x RS-232 (2 of which are internal ports for an optional COM module)
- 1 x isolated RS-422/485
- 1 x GPIO (8 channels, TTL level, reserved)
- 1 x USB 3.0 and 3 x USB 2.0
- 2 x Gigabit Ethernet (Intel I210)
- 1 x D-SUB VGA port
- 1 x DisplayPort 1.1a port
- 1 x Line-Out, 1 x Mic-In, and 2 x 1 W internal speakers
The PPC-3150 accepts a DC input of 9 ~ 32 VDC (6 A ~ 2 A) via a DC power socket, with an output power rating of 50 W. In a burn-in test on Windows 7 (32-bit) with 4 GB DDR3L memory, a 500 GB 2.5" SATA III HDD, and mSATA 32 GB MLC storage, measured power consumption was 30 W.
With a 2.5" SATA HDD, the operating temperature range is 0 ~ 50 °C (32 ~ 122 °F). With mSATA or a 2.5" SSD, the operating temperature range extends to -20 ~ 60 °C (-4 ~ 140 °F). Storage temperature is -40 ~ 60 °C (-40 ~ 140 °F), and relative humidity is 10 ~ 95% at 40 °C (non-condensing).
The PPC-3150 has EMC certifications of BSMI, CE, and FCC Class A, and safety certifications of CB, CCC, BSMI, and UL. The front panel is IP65 compliant. It also meets IEC 60068-2-27 (shock) and IEC 60068-2-64 (vibration) standards.
The PPC-3150 supports up to 8 GB of DDR3L memory via a single 204-pin slot. Primary storage is a 2.5" SATA bay. Additional optional storage includes a full-size mSATA slot, a CFast card module, a CF card module, or an internal USB connector for a USB dongle (optional module).
The PPC-3150 supports WES7, Windows 7, Windows 8, and Windows 8.1.
The PPC-3150-RE4AE model measures 396.5 x 317.6 x 65.3 mm (15.6 x 12.5 x 2.57 in) and weighs 5.3 kg (11.6 lb). The PPC-3150-RE4BE/PE4BE model measures 392.2 x 313.5 x 55.1 mm (15.4 x 12.3 x 2.1 in). VESA mounting uses M4 screws with an 8 mm screw depth.
Yes. The PPC-3150 supports installation of an optional Wi-Fi module (Advantech PPC-WLAN-C1E) via the full-size mini PCIe slot, with antenna holes and connectors provided on the chassis.
The PPC-3150 provides one PCI (standard) or one PCIe x1 expansion slot (selectable via riser card), plus a full-size mini PCIe slot for other expansion options such as a Wi-Fi module. The PCI or PCIe card installed must not exceed 176 mm in length and 107 mm in width.
How-to Guides
- Before connecting the power cable, verify the system's power mode setting (AT or ATX) matches your requirements. Flip the AT/ATX switch to AT mode if needed (default is ATX mode).
- Connect the 2-pin male connector of the power cable (provided in the accessory box) to the DC power socket (9 ~ 32 VDC).
- Use the power button located on the bottom right of the panel PC to power the unit on.
- Remove the 11 screws and four plugs from the rear cover to take off the rear cover.
- Remove the eight screws on the heatsink and remove the heatsink.
- Insert the memory card into the memory slot.
- Place the thermal pad (provided in the accessory box) directly on top of the memory card and CPU, then replace the heatsink.
- Remove the rear cover (see memory card installation, Step 1).
- Remove the four screws on the VESA mount plate and remove the plate.
- Remove the four screws on the HDD cover and remove it.
- Affix the HDD to the HDD bracket using four screws from the accessory box, then connect the HDD data cable to the HDD.
- Replace the HDD bracket, secure it in place, and connect the other end of the HDD data cable to the mainboard.
- Remove the rear cover and VESA mount plate as described in the HDD installation steps.
- For a full-size mini SATA card: insert the card into the mainboard slot and secure it with two M2.5x4 screws, then place the thermal pad on top of the card.
- For a half-size mini SATA card: insert the card into the mainboard slot and secure it with a copper cylinder screw, then place the thermal pad on top of the card.
- Replace the VESA mount plate and rear cover, securing them with screws.
- Power on the system and press <Del> to enter the BIOS Setup Utility.
- Click on Super IO Configuration in the Advanced tab.
- Click on Serial Port 3 Configuration to open the submenu.
- Select COM Port Mode to set the COM3 operation mode (RS422 or RS485).
- To enable RS-485 termination, set the COM3 Terminal option to Enabled in the same submenu.
- Press <F4> to save and exit; otherwise the settings will not be saved.
| Manufacturer | Advantech |
|---|---|
| Short Description | The PPC-3150 is a 15" fanless panel PC equipped with a high-performance Intel Atom E3845 quad-core, 1.91 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-3150 can be integrated with fieldbus protocols or proprietary cards for increased application potential. |
| CPU Cores | 2 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz |
| Brightness | 400+ nit |
| Resolution | 1024 x 768 |
| Screen Size | 10.1-15" |
| Video Output | Display Port, VGA |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| USB 3.0 | 3-4 |
| Max Memory | 16 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 1866 MHz, 2400 MHz |
| Form Factor | Panel PC |
| Native Storage Type | 2.5" SSD |
| Mounting | VESA |
| Memory | 1 slot SODIMM 1866/2133/2400 max 16GB |
| Watchdog TImer | 255 levels |
| Display Type | 15" TFT LED |
| Display Size | 15" |
| Max Resolution | 1024 x 768 |
| Luminance | 500 |
| Viewing Angle | 88(left), 88(right), 88(up), 88(down) |
| Backlight Lifetime | 70,000hr |
| Contrast Ratio | 2500 |
| Light Transmission | 85% +-3% |
| Humidity | 10-95% at 40C non condensing |
| Operating Temperature | 0-50C |
| Storage Temperature | -40-60C |
| Shock | IEC 60068-2-27 |
| EMC | CE, FCC class B, BSMI |
| Weight | 5.4 kg |
| Dimension | 312.5 x 391.4 x 55.35mm OD |
