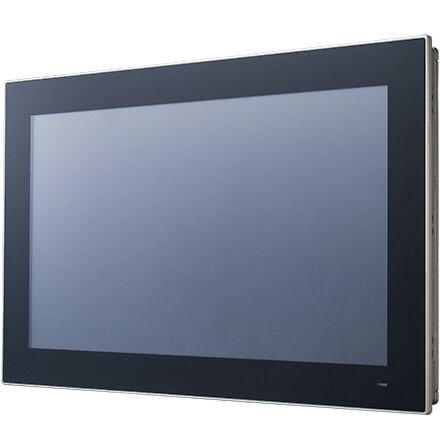

18.5" Fanless Panel PC with Intel Core i Processor
PPC-3181SW-P65AUAn Alternative Product May Be Available!
Contact us for more information at 866-412-6278 or enter your information below.
The PPC-3181SW is an all-in-one light panel PC with a wide format 18.5" industrial-grade LCD. Powered by 6th generation Intel Core i processor, PPC-3181SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3181SW features a true-flat touchscreen with IP65-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.
- Industrial-grade 18.5" LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 6th generation Intel® Core™ i processor
- Up to 16 GB DDR4 SDRAM
- Compact, fanless design with aluminum alloy enclosure
- IP65-rated front panel
- Supports dual displays (1 x external HDMI)
- Supports full-size mini PCIe expansion
- Supports USB 3.0
- Supports VESA 100
- Supports TPM 2.0 (optional)
The PPC-3181SW is an all-in-one light panel PC with a wide format 18.5" industrial-grade LCD. Powered by 6th generation Intel Core i processor, PPC-3181SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3181SW features a true-flat touchscreen with IP65-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.
| Manufacturer | Advantech |
|---|---|
| Short Description | The PPC-3181SW is an all-in-one light panel PC with a wide format 18.5" industrial-grade LCD. Powered by 6th generation Intel Core i processor, PPC-3181SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3181SW features a true-flat touchscreen with IP65-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications. |
| Processor | i3-6100U, i5-6300U, i7-6600U (Optional) |
| Memory | 1 x SODIMM DDR4 1866/2133 MHz (max. 16GB) (1.2 V) |
| Watchdog TImer | 255 timer levels, set up by software |
| mSATA | 1 x mSATA bay |
| 2.5" Drive | 1 x 2.5" SATA bay |
| Power Input Voltage | 12 ~ 24 V DC |
| Power Type | 65W |
| Dimension | 488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in) |
| Weight | 5.7 kg (12.56 lb) |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) for SSD |
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Humidity | 10 ~ 95% @ 40 °C (non-condensing) |
| Vibration | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @ with HDD;2Grms@ with SSD, follow IEC 60068-2-64 |
| Shock | Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
| EMC | CE, FCC Class B, BSMI |
| Viewing Angle | 85 (left), 85 (right), 80 (up), 80 (down) |
| Luminance | 450 |
| Contrast Ratio | 1000 |
| Backlight Lifetime | 50,000 hr |
| Max Resolution | 1366 x 768 |
| Display Type | 18.5" TFT LCD (LED backlight) |
| Light Transmission | 90 % ± 3 % |
| Power Consumption | 65W |
