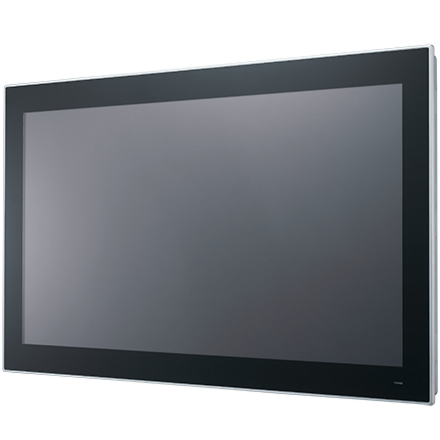

Intel PENTIUM APL N4200 Fanless 23.8" P
PPC-324W-PN40AUStarting at $1,895.00
Features
- 23.8" true-flat TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Configurable RS-232/422/485 ports via BIOS
- Automatic data flow control over RS-485
- Wide range DC support (12 ~ 24 VDC)
- Supports dual displays
- IP65-rated front panel
Frequently Asked Questions
The unit provides the following I/O:
- 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485
- 2 x USB 3.0, 2 x USB 2.0
- 1 x Line-out
- 1 x HDMI
- 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT)
- 1 x DC-In power connector
The PPC-324W-PN40AU accepts a wide-range DC input of 12 ~ 24 VDC and has a power consumption of 70W.
Operating temperature depends on the storage configuration: 0 ~ 50 °C (32 ~ 122 °F) when using an SSD, or 0 ~ 40 °C (32 ~ 104 °F) when using an HDD. Storage temperature range is -20 ~ 60 °C (-4 ~ 140 °F).
The unit is certified for EMC compliance under CE, FCC Class B, BSMI, and EN 60601-1-2, and safety compliance under CB, UL, and CCC. The front panel is IP65 compliant.
The system supports 1 x SODIMM DDR3L 1600/1866 memory module, up to a maximum of 8 GB. Storage options include 1 x 2.5" SATA bay (optional, requires a bracket module for installation) and 1 x mSATA bay. A single Mini PCIe expansion slot is also provided.
The PPC-324W-PN40AU supports Microsoft® Windows 10 (64-bit), Windows 10 IoT LTSC, Linux, and Android 8.1.
The unit measures 595.9 x 374.1 x 58.4 mm (23.5" x 14.7" x 2.3"). The panel cutout dimensions for mounting are 586.5 x 364.8 mm (23.09 x 14.36 in).
Wireless connectivity is available as an optional add-on. The PPC-WLAN-C1E M.2 Wi-Fi module with antenna cable (2T2R support) can be ordered separately for installation via the internal Mini PCIe/M.2 expansion slot.
Several mounting accessories are available as separate order items: PPC-174T-WL-MTE (wall mount kit), PPC-STAND-A1E (stand), and PPC-ARM-A03 (VESA standard arm mount).
The PPC-324W-PN40AU is the same 23.8" widescreen panel PC with PCT multi-touch and Intel Pentium® N4200 quad-core processor as the PPC-324W-PN40A, but it is designated for U.S. only.
How-to Guides
- Obtain the
PPC-HDD-N4200HDD bracket module, which is required to install a 2.5" SATA drive in this system. - Mount the 2.5" SATA HDD or SSD into the bracket module.
- Install the bracket module assembly into the internal 2.5" SATA bay of the PPC-324W-PN40AU.
- Note that using an SSD allows for an extended operating temperature range of 0 ~ 50 °C, while an HDD limits operation to 0 ~ 40 °C.
- Locate the internal mSATA bay for storage expansion.
- Locate the internal Mini PCIe expansion slot, which can also accommodate the optional
PPC-WLAN-C1EM.2 Wi-Fi module with antenna cable. - Install the chosen mSATA drive or Mini PCIe/Wi-Fi module into the appropriate slot.
- Route the antenna cable (if installing the Wi-Fi module) to the designated antenna opening on the enclosure.
- Confirm the power source supplies within the accepted wide-range DC input of 12 ~ 24 VDC.
- Connect the power leads to the DC-In terminal labeled "H" on the I/O panel.
- Ensure the connected power supply can support the system's power consumption of 70W.
- Use one of the listed compatible power cords/adapters (e.g.
96PSA-A90W19OT-3) if an external power supply is required.
- Select the appropriate mounting accessory:
PPC-ARM-A03for VESA arm mounting,PPC-174T-WL-MTEfor wall mounting, orPPC-STAND-A1Efor a stand. - Attach the chosen mounting hardware to the rear of the panel PC using the appropriate mounting points.
- If mounting into a panel cutout, ensure the cutout dimensions are 586.5 x 364.8 mm (23.09 x 14.36 in).
- Secure the unit according to the selected mounting kit's hardware instructions.
| Manufacturer | Advantech |
|---|---|
| Memory | 1 x SODIMM, DDR3L 1600/1866, max. 8 GB |
| Watchdog TImer | 255 timer levels, set up by software |
| Display Type | 23.8" TFT LCD (LED backlight) |
| Max Resolution | 1920 x 1080 |
| Luminance | 350 |
| Viewing Angle | 89 (Left), 89 (Right), 89 (Up), 89 (Down) |
| Backlight Lifetime | 30,000 hr |
| Contrast Ratio | 1000 |
| Light Transmission | ≥ 85% |
| Humidity | 10 ~ 95% @ 40 °C (Non-Condensing) |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) with SSD
|
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Shock | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 |
| EMC | CE, FCC Class B, BSMI, EN 60601-1-2 |
| Dimension | 595.9 x 374.1 x 58.4 mm (23.5" x 14.7" x 2.3") |
