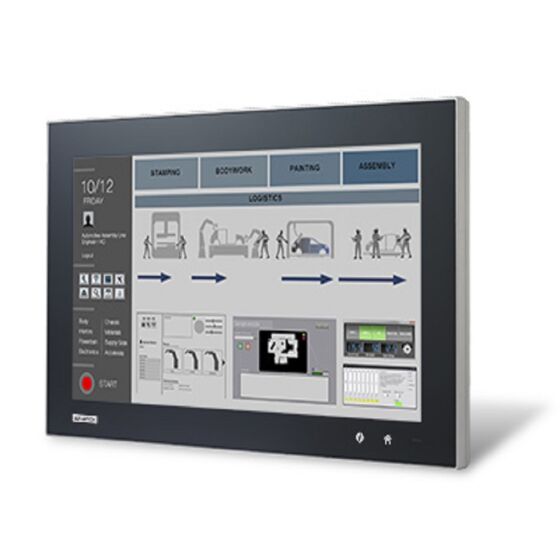

23.8" Touch Panel Computer with FHD TFT LED LCD Core Processors

TPC-324W

Starting at $2,185.00

Main Features

  • ƒIndustrial-grade 23.8" FHD TFT LCD with 30K lifetime and LED backlight
  • 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
  • Dual channel memory slots support up to 64G in total
  • Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
  • True-flat touchscreen with P-CAP multi-touch control and IP66-rated front panel
  • Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
  • Diverse system I/O and isolated digital I/O via iDoor technology
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Support TPM2.0 hardware security
PDF Document - Data Sheet TPC-324W
Data Sheet TPC-324W
(Size: 793.5 KB)

System Configuration


* Selection required

Your Configuration
TPC-324W 23.8" Touch Panel Computer with FHD TFT LED LCD Core Processors
23.8" Touch Panel Computer with FHD TFT LED LCD Core Processors

In stock

Add to Favorites

$2,185.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

TPC-324W touch panel computer is equipped with 23.8" FHD TFT LED LCD, low-power 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor, and 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system. To provide enhanced durability and satisfy diverse applications of industrial automation, TPC-324W features IP66-rated front panel protecting against dust and water ingress, and two extra expansion M.2 M Key, B Key slots supporting NVMe, SATA or 5G application. With Advantech's iDoor technology integrated via mini PCIe slot for function expansions such as additional I/O ports, isolated digital I/O, fieldbus protocols, GPS/GPRS/Wi-Fi communication and MRAM. The integrated DP and audio ports allow a secondary monitor and speakers to be attached for increased functionality.
PDF Document - Data Sheet TPC-324W
Data Sheet TPC-324W
(Size: 793.5 KB)
Specifications
ManufacturerAdvantech
CPU FamilyIntel Core
Resolution640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1920 x 1080
Screen Size5-7", 7.1-10", 10.1-15", 15.1-19", 20" and up
Operating SystemWindows 10, Linux
BIOSAMI UEFI
CertificationBSMI, CCC, CE, FCC Class A, CB/UL
Cooling SystemFanless design
Enclosure

Front bezel: Die cast aluminum alloy

Back housing: Die cast aluminum alloy

MountingVESA Mount, Desktop, Wall or Panel Mount
CPU8th Gen. Intel® Core™ i3- 8145UE 2.20 GHz Dual-core/ i5-8365UE 1.60 GHz Quad-core/ i7-8665UE 1.70 GHz Quad-core processor
MemoryDual channel DDR4 SO-DIMM (Each channel supports up to 32G) 1 x 8G DDR4 SO-DIMM (Built-in)
Storage

1 x M.2 M key 2280 (SATA or NVMe PCIe x4)

1 x M.2 B key 2242 (SATA / PCIe) 3042, 3052 (5G)

1 x 2.5" SSD/ HDD (SATA, Max. 7mm)

Network (LAN)2 x 10/100/1000BASE-T
I/O

2 x RS-232/422/485

1 x USB 2.0

4 x USB 3.2 (Gen 2)

1 x iDoor slot

1 x Displayport (Video output)

1 x Audio line out/ mic in

Watchdog TImer15-255 sec (system)
Display TypeFHD TFT LED LCD
Display Size23.8'' (16:9)
Max Resolution1920 x 1080
Max Colors16.7M
Luminance350
Viewing Angle178°/178°
Backlight Lifetime30,000hrs
Contrast Ratio1000:1
Light Transmission90% ± 3%
TypePCAP
Humidity10 ~ 95% RH @ 40°C, non-condensing
Ingress ProtectionIP66-rated front panel
Operating Temperature-10~50°C (14~122°F) (w/o air flow)
Storage Temperature-20~70°C (-4~158°F)
Vibration Protection

With SSD: 1 Grms (5 ~ 500 Hz)

(Operating, random vibration)

Power Input Voltage24 VDC ± 20%
Power Consumption56.31W (Typical)
OS SupportWin 10, Android, Linux
Weight9.3kg (20.5lbs)
Dimension595.9 x 374.1 x 70 mm (23.46 x 14.73 x 2.76 in)
