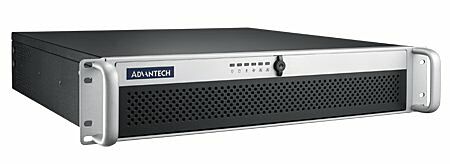

Advantech 2U Rackmount Short Depth Chassis for ATX and mATX Motherboard

ACP-2020

Starting at $445.00

Main Features:

  • 398 mm short depth 2U rackmount chassis
  • Supports ATX and mATX form factor motherboard
  • Dual front USB 3.0
  • Support 350W 80 plus single flex ATX power supply or 500W 2U redundant power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • Built-in Intelligent System Module enabling whole system fan control and remote manageability
PDF Document - ACP-2020 Datasheet
ACP-2020 Datasheet
(Size: 951.4 KB)
PDF Document - ACP-2020 User Manual
ACP-2020 User Manual
(Size: 3.4 MB)

System Configuration


* Selection required

ACP-2020MB-35ZE - chassis W/ PS8-350FATX-XE
Your Configuration
ACP-2020 Advantech 2U Rackmount Short Depth Chassis for ATX and mATX Motherboard
Advantech 2U Rackmount Short Depth Chassis for ATX and mATX Motherboard

In stock

Add to Favorites

$445.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

PDF Document - ACP-2020 Datasheet
ACP-2020 Datasheet
(Size: 951.4 KB)
PDF Document - ACP-2020 User Manual
ACP-2020 User Manual
(Size: 3.4 MB)
Specifications
ManufacturerAdvantech
SATA2 x 2.5" SATA - Optional
Power AdapterSingle FlexATX 350W
Fan1 ( 8 cm, 41 CFM )
Air FilterYes
VibrationOperating Vibration (5~500 Hz) 1 Grms|Non-Operating Vibration (5 ~ 500 Hz) Grms
Native Storage Type2.5" SSD
Humidity10 ~ 85% @40C, non-condensing
Operating Temperature0°C~ 40°C (32°F ~ 104° F)
Shock10 G (with 11 ms duration, half sine wave)
Weight8.6 kg ( 18.96 lbs )
Dimension482 x 88 x 398 mm ( 18.96" x 3.46" x 15.67" )
