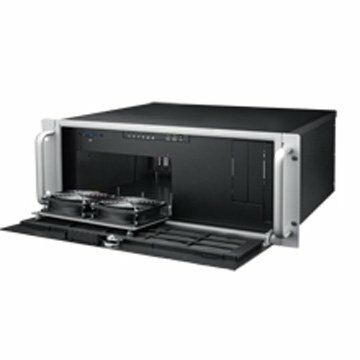

Advantech Compact 4U Rackmount Chassis for Half-size SBC or ATX/MicroATX Motherboard

ACP-4020

This product is no longer available.

Main Features:

  • Compact 4U rackmount chassis, with only 348mm depth
  • Supports 14-slot BP for half-size SBC or ATX/MicroATX motherboard
  • Shock-resistant disk drive bay holds one internal 2.5"
  • Two front-accessible 3.5" drives,
  • One slim optical disk drive
  • Supports 80plus single power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and audible alarm notification for system fault detection
  • Smart fan speed control for system fans
  • Remote management (with SUSIAccess 2.1)
Specifications
ManufacturerAdvantech
Fan2(9cm / 53 CFM)
Air FilterYes
Vibration1 Grms
Native Storage Type2.5" SSD, 3.5" HDD
Humidity10 ~ 85% @ 40°C, non-condensing
Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature-20°C ~ 60°C (-4°F ~ 140°F)
Shock2 G
Weight8.5 kg (18.7 lb)
Dimension482 mm x 348 mm x 177 mm (19" x 13.7" x 7")
