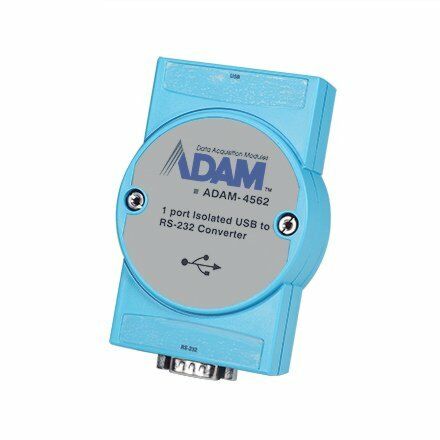

1 port isolated USB to RS232 converter

ADAM-4562-AE
$100.00

ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you dont need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. This makes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices. Compliant with USB V1.1, ADAM-4561/4562 features several powerful functions such as high-speed 115.2 kbps transmission, support for various operating systems, independentRS-232/422/485 ports and more. By simply plugging in a USB hub, ADAM-4561/4562 eliminates the configuration issues associated with high-priced, older card solutions. You only have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort.

Main Features:

  • Full compliance with USB V1.1 specifications
  • Transmission speed up to 115.2 kbps
  • Isolation protection 3000 VDC provided
  • Automatic RS-485 data flow control
  • No external power supply necessary; the hub derives its power from the USB port
  • Plug & Play installation
  • No additional IRQs or I/O ports required
  • Hot swap function supported
PDF Document - ADAM-4562-AE Datasheet
ADAM-4562-AE Datasheet
(Size: 427.3 KB)
PDF Document - ADAM-4562-AE Datasheet
ADAM-4562-AE Datasheet
(Size: 427.3 KB)
Specifications
ManufacturerAdvantech
Humidity5~95 %RH
Operating Temperature-10~70 °C (14~158 °F)
Storage Temperature-25~85°C (-13~185°F)
