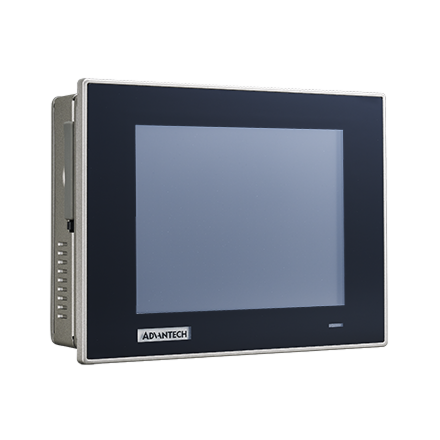

Advantech 5.7"/ 6.5" TFT LED LCD Intel Atom Thin Client Terminal
TPC-651TStarting at $955.00
Main Features:
- Industrial 5.7" VGA TFT LCD with 50K Lifetime LED Backlight
- Intel Atom E3827 1.75 GHz Dual-core Processor with 4GB DDR3L SDRAM
- Support wide operating temperatures -20~60C
- True-flat with IP66 certified front panel protection
- Front LED Indicator to Show Operating Status
- Durable 5-wire Resistive Touch Screen
- Full-size Mini PCIe Expansion Support
- Supports iDoor technology for diverse applications (optional accessory required)
- Compact Fanless Embedded System with Al Alloy Front Bezel, Chassis Grounding Protection
- AC/DC support (option by Power adapter)
- Supports Advantech SNMP Subagent
- Supports Advantech SusiAccess Remote Device Management Software
Frequently Asked Questions
The rear panel provides:
- 2 x 10/100/1000BASE-T LAN
- 1 x RS-232
- 1 x RS-232/422/485
- 1 x USB 3.0
- 1 x USB 2.0
- 1 x CFast slot
- 1 x full-size mini PCIe expansion slot
The TPC-651T requires 24V DC +/- 20% input and has a typical power consumption of 19.2 W. It also supports AC/DC input with an optional power adapter.
The unit operates from -20 to 60 °C (-4 to 140 °F) and has a storage temperature range of -30 to 70 °C (-22 to 158 °F). It is certified to BSMI, CCC, CE, FCC Class A, and UL.
The system ships with 1 x SODIMM slot populated with 4 GB DDR3L SDRAM, and supports up to 8 GB. Storage is provided via 1 x CFast slot; an optional external HDD/SSD/iDoor kit (TPC-1251T-EHKE) is also available.
The TPC-651T supports Microsoft® WES7 (32/64-bit), WE8S (64-bit), Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), and Windows 10 Enterprise LTSB.
The unit measures 199 x 152 x 58.9 mm (7.83 x 5.98 x 2.32 in) and weighs 1.5 kg (3.3 lb) net. It supports panel and wall mounting. Panel cutout dimensions are 189.1 x 142.1 mm (7.44 x 5.59 in).
The TPC-651T has a true-flat, IP66-rated front panel with a die-cast aluminum alloy bezel and a 5-wire resistive touchscreen rated for 36 million touches at a single point.
Yes. The system includes a full-size mini PCIe slot that supports Advantech's iDoor technology, allowing integration of optional accessories such as isolated digital I/O, fieldbus protocols (CANBus, ProfiBus), additional Gigabit LAN, RS-232/422/485 ports, and 802.11 a/b/g/n Wi-Fi with Bluetooth 4.0.
All three use the same Intel® Atom™ E3827 1.75 GHz dual-core processor with 4 GB RAM. TPC-651T-E3AE has a 5.7" true-flat touchscreen. TPC-651H-E3AE has a non-flat, IP65-certified traditional TPC front panel. TPC-651T-6E3AE has a 6.5" true-flat touchscreen.
How-to Guides
- The TPC-651T ships with 1 x SODIMM slot populated with 4 GB DDR3L SDRAM.
- The slot supports upgrades up to 8 GB DDR3L SDRAM.
- Refer to Advantech documentation for access procedures, as the datasheet does not detail chassis disassembly steps.
- Confirm the power source supplies 24V DC +/- 20%.
- Connect the power cable to the power receptor (labeled G in the rear view diagram).
- Optionally use the PWR-247-DE 60W 24V/2.5A DC power supply accessory with the appropriate regional power cable (US, EU, UK, or China/Australia plug).
- Choose either panel or wall mounting, both of which are supported.
- For panel mounting, use the panel cutout dimensions of 189.1 x 142.1 mm (7.44 x 5.59 in).
- Secure the unit according to the overall dimensions of 199 x 152 x 58.9 mm.
- Obtain the TPC-1251T-EHKE HDD/SSD and iDoor extension kit, which is required for iDoor modules.
- Select the desired iDoor module (e.g., PCM-26D2CA-AE for CANBus, PCM-27D24DI-AE for isolated digital I/O, or PCM-24S2WF-AE for Wi-Fi/Bluetooth).
- Install the module into the full-size mini PCIe slot via the extension kit.
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 2 |
| CPU Family | Intel Atom |
| Base CPU Speed | Under 2.0 Ghz |
| Brightness | 400+ nit |
| Resolution | 640 x 480 |
| Screen Size | 5-7" |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 8 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | < 1600 HHz, 1600 MHz |
