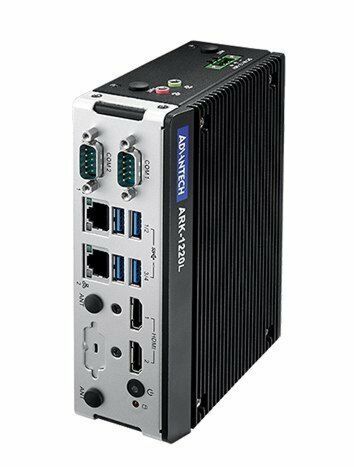

Advantech Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC

ARK-1220L

Starting at $710.00

Main Features:

  • Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
  • DIN-Rail system with essential I/O ports on front-side bezel
  • 2 x Intel GbE and 4 x USB 3.0
  • Dual HDMI display up to 4K resolution
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
  • 1 x 2.5" SATA III SSD and 1 x full-size mSATA
  • 12V ~ 28V wide range power input
  • -30C ~ 70C extended operating temperature
  • Advantech WISE-PaaS support
PDF Document - ARK-1220L Datasheet
ARK-1220L Datasheet
(Size: 1.3 MB)

System Configuration


* Selection required

Your Configuration
rugged Intel Atom PC
Advantech Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC

In stock

$710.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

PDF Document - ARK-1220L Datasheet
ARK-1220L Datasheet
(Size: 1.3 MB)
Specifications
ManufacturerAdvantech
CPU Cores4
CPU FamilyIntel Atom
Base CPU SpeedUnder 2.0 Ghz
Video OutputHDMI
LAN Ports1-4
Serial Ports1-2
USB 3.03-4
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed1866 MHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Full
MountingDIN-rail/Wall Mount
MemoryDDR3L 1866 MHz 8 GB
Watchdog TImer255 levels timer interval, setup by software
Humidity95% @ 40° C (non-condensing)
Operating TemperatureWith extended temp. peripherals: -30°C ~ 70°C (-22°F ~ 158°F)|w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0°C ~ 40°C (32°F ~ 104°F) with 0.7 m/s air flow
Storage Temperature-40°C ~ 85°C (-40°F ~ 185°F)
ShockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMCCE/FCC Class B, CCC, BSMI
Power Input Voltage12 ~ 28 VDC
Weight1.2 kg (2.65lb)
Dimension53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49")
