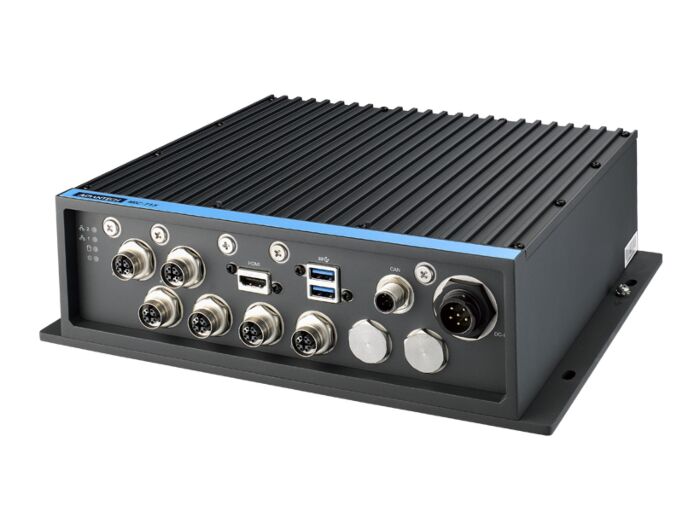

MIC-715 AI Inference System Based on NVIDIA Jetson Xavier NX
MIC-715Starting at $3,010.00
Main Features
- Compact, IP67 rated, waterproof fanless design
- Embedded NVIDIA® Jetson™ Xavier NX
- Supports 4 x IEEE 802.3af compliant PoE
- Linux OS with board support package (BSP)
- Supports deep learning trained models
- Supports wide operating temperature range
Frequently Asked Questions
The MIC-715-NX provides:
- 6 x 10/100/1000 Mbps Ethernet ports (4 support PoE, IEEE 802.3af) via M12 X-coded 8-pin female connectors
- 1 x HDMI display output (max resolution 3840x2160 @ 60Hz)
- 2 x USB 3.0 external ports
- 1 x Micro USB (OTG)
- 2 x CANBus ports
The system accepts 12/24V DC input (12-6A) with ignition support, via an M16 6-pin male connector. The default setting is 12V DC. If using a 24V source, the case must be opened and the SW1 DIP switch adjusted to 01 for 24V DC input.
The MIC-715-NX operates from -25 to 60 °C with 0.7 m/s airflow (Max-P ARM mode). It supports 95% humidity at 40 °C (non-condensing), 3 Grms vibration (5-500 Hz, random, 1 hr/axis), and 10G/11ms shock. The unit has a ruggedized IP67 waterproof fanless design.
The MIC-715-NX is CB/UL/CE/FCC/CCC certified and RoHS compliant. Note: it does not have RED certification.
The system includes 16GB of eMMC flash and 8GB LPDDR4 memory. Expansion options include:
- 2 x mPCIe slots (signal: PCIe + USB)
- 1 x M.2 3052 slot (B-Key, signal: PCIe + USB)
- 1 x M.2 2280 slot (M-Key, NVMe, PCIe x1)
- 1 x Nano SIM slot
- 1 x Micro SD slot
The MIC-715-NX is built on the NVIDIA Jetson Xavier NX module, featuring a 6-core NVIDIA Carmel ARM v8.2 64-bit CPU and a 384-core NVIDIA Volta GPU with 48 Tensor Cores, delivering up to 21 TOPS of AI performance.
The MIC-715-NX runs Linux OS with a board support package (BSP), specifically Jetpack version 4.4.1 or above.
The MIC-715-NX measures 275 x 220 x 80 mm (10.8" x 8.7" x 3.2") and weighs 4.5 kg. It is designed for desktop installation.
Yes. The MIC-715-NX supports Allxon 24/7 remote monitoring and OTA (over-the-air) deployment. Devices can be enrolled through the Allxon Portal for centralized cloud-based management.
How-to Guides
- Note that the default power setting for the MIC-715-NX is 12V DC input.
- If your power source is 24V, open the case to access the internal DIP switch.
- Locate the SW1 DIP switch.
- Adjust SW1 to position 01 to configure the unit for 24V DC input.
- Go to the Allxon device enrollment page at https://allxon.com/jetson/device_enroll/.
- Enroll the MIC-715-NX in the 24/7 secure service.
- Access the centralized Allxon Portal to use remote device management and OTA deployment features.
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 2, 4 |
| CPU Family | Jetson AGX Xavier |
| USB 3.0 | 1-2 |
| Operating System | Linux |
| CPU | ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3 x dual-core CPU clusters (six NVIDIA Carmel processor cores) (Max. Operating Frequency: 1.9 GHz) |
| Memory | 8 GB 128-bit LPDDR4x DRAM |
| Operating Temperature | -25 ~ 60 °C (-13 ~ 140 °F) with 0.7 m/s air flow (Max-P ARM mode) |
| Vibration Protection | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Power Input Voltage | Power adaptor: 9 ~ 36VDC (16A~4A) |
| Weight | 4.5 kg/9.9 lb |
| Dimension | 275 x 220 x 80 mm (10.8 x 8.7 x 3.2 in) |
