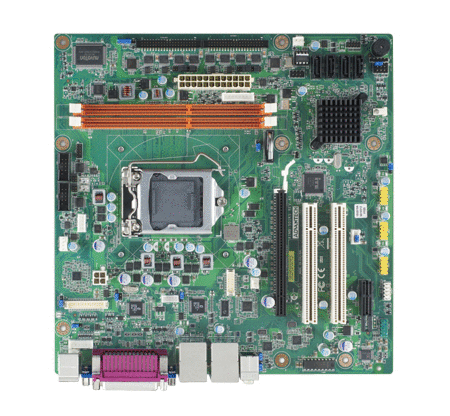

MicroATX with VGA/LVDS 10 COM/10 USB/DU

AIMB-501G2-KSA1E
$300.00

Main Features:

  • Supports Intel Core i7/i5/i3 processor with H61 chipset
  • Two DIMM sockets support up to 8 GB DDR3 1066/1333 MHz SDRAM
  • Supports dual display of VGA, DVI, LVDS and two GbE LAN
  • Supports 10 COM, 10 USB 2.0, TPM 1.2 (optional)
  • Supports SUSIAccess and Embedded Software APIs
PDF Document - AIMB-501 Series Datasheet
AIMB-501 Series Datasheet
(Size: 951 KB)
Specifications
ManufacturerAdvantech
CPU Cores2, 4
CPU FamilyIntel Celeron, Intel Core, Intel Pentium
Base CPU Speed2.1 to 3.0 GHz, 3.1 to 3.5 GHz
Video OutputDVI-I, VGA
LAN Ports1-4
Serial Ports7+
USB 2.05-6
Max Memory16 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz, 1600 MHz
