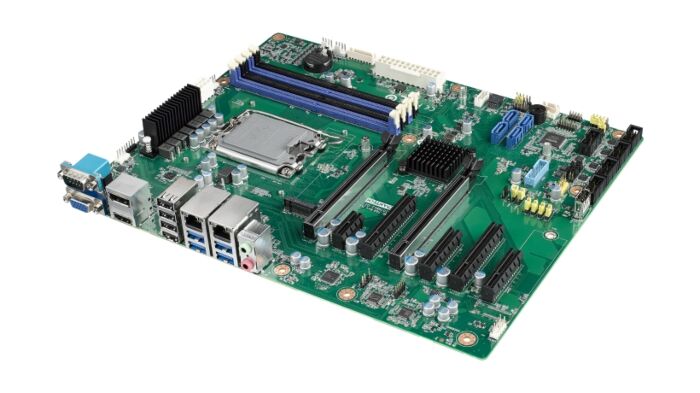

AIMB-788E: LGA1700 12th/13th/14th Generation Intel Core ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
AIMB-788EStarting at $810.00
LGA1700 12th/13th/14th Intel Core i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, and M.2.
- Intel 12th/13th/14th generation Core i9/i7/i5/i3 & Pentium/Celeron processor with Q670E/R680E chipset
- Four DIMM sockets up to 192 GB DDR5 5600
- Triple display DP/HDMI/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 1
- iBMC remote out-of-band power management solution on DeviceOn
Frequently Asked Questions
The AIMB-788E supports Intel 12th, 13th, and 14th generation Core i9/i7/i5/i3 and Pentium/Celeron processors in an LGA1700 socket, paired with the Q670E or R680E chipset. Legacy platforms are not supported.
The board provides triple display output: 1 x VGA (up to 1920 x 1200 @ 60Hz), 1 x HDMI (up to 3840 x 2160 @ 60Hz), and 1 x DisplayPort (up to 4096 x 2304 @ 60Hz).
The board has 4 x 288-pin DIMM sockets supporting dual channel DDR5 5600, up to 192 GB total. The standard AIMB-788E-00A1 and -10A1 use non-ECC UDIMM, while the AIMB-788E-0RA1 version supports ECC UDIMM.
The AIMB-788E provides 4 internal SATA 3.0 channels with RAID 0, 1, 5, 10 support, and an internal M.2 slot (PCIe x4 Gen 4, M-key, 2280 type). The AIMB-788E-10 version adds a second M.2 slot (1 x PCIe x4 Gen 4, 1 x PCIe x4 Gen 3, M-key 2280). Expansion slots include 1 x PCIe x1 (Gen 4), PCIe x4 slots, PCIe x8 slots, and 2 x PCIe x16 slots (Gen 5 x8 link and Gen 4 x8 link).
Power-on figures are based on an Intel Core i-series 65W CPU with 4 x DDR5 32 GB modules. Required voltage rails and typical currents are: +3.3V at 1.54 A, +5V at 1.96 A, +12V at 0.07 A, +5Vsb at 0.08 A, -12V at 0.04 A, and -5V at 0.01 A.
Operating temperature is 0 ~ 60 °C (32 ~ 140 °F), depending on CPU loading and system thermal solution. Non-operating (storage) temperature is -40 ~ 85 °C. Operating humidity is 95% at 40 °C non-condensing, and non-operating humidity is 95% at 60 °C non-condensing.
Rear I/O includes 8 USB ports (4 x USB 3.2 Gen 1, 4 x USB 2.0) and 1 x RS-232 serial port. Internal headers add 5 more USB ports (2 x USB 3.2 Gen 1, 2 x USB 2.0 via headers, 1 x USB 2.0 Type-A) and 5 more serial ports (4 x RS-232, 1 x RS-232/422/485).
The board measures 304.8 x 244 mm (12" x 9.6"), an ATX form factor.
All three versions use the same USB, SATA, COM, and GbE LAN counts, and support AMT and iBMC. The AIMB-788E-00A1 uses the Q670E chipset with non-ECC UDIMM DDR5 and 1 M.2 slot. The AIMB-788E-10A1 also uses Q670E with non-ECC UDIMM DDR5 but adds a second M.2 slot (2 total). The AIMB-788E-0RA1 uses the R680E chipset with ECC UDIMM DDR5 support and 2 M.2 slots.
The board has an SPI header for an optional dTPM 2.0 module (part number PCA-TPMSPI-00A1), which is required to enable TPM and vPro technologies. Intel PTT is also ready for Windows 11 support.
How-to Guides
- Order the optional dTPM 2.0 SPI module, part number
PCA-TPMSPI-00A1. - Install the dTPM 2.0 module onto the board's SPI header.
- Note that a dTPM 2.0 module is required to enable TPM technologies, and Intel PTT is ready for Windows 11 as an alternative if a physical module is not installed.
- Use Advantech's proprietary CPU cooler for the AIMB-788E, listed under optional accessories (part number
1970005349T000), rated for CPUs with a base power of 35~125W, for 2U, 4U, and wall-mount chassis. - Do not use other brands' CPU coolers, as they are not compatible with the AIMB-788E.
- Avoid coolers with a fan mounted to the side, since this type is not allowed due to heat dissipation requirements on the MOSFET.
LGA1700 12th/13th/14th Intel Core i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, and M.2.
| Product Available On | May 31, 2025 |
|---|---|
| Manufacturer | Advantech |
| Short Description | LGA1700 12th/13th/14th Intel Core i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, and M.2. |
| Certification | CE, FCC |
| CPU | 14th Generation Processors: I9-14900 I9-14900T I7-14700 I7-14700T I5-14500 I5-14500T I5-14400 I5-14400T I5-14400F I3-14100 I3-14100T 300 300T 13th Generation Processors: i9-13900(E) i9-13900TE i7-13700(E) i7-13700T(E) i5-13500(E) i5-13500T(E) i5-13400(E) i3-13100(E) i3-13100T(E) 12th Generation Processors: i9-12900(E) i9-12900TE i7-12700(E) i7-12700TE i5-12500(E) i5-12400 i5-12500TE i3-12100(E) i3-12100TE Pentium G7400E Pentium G7400TE Celeron G6900E Celeron G6900TE |
| Frequency | 14th Generation Processors: I9-14900: 2.0 GHz I9-14900T: 1.1 GHz I7-14700: 2.1 GHz I7-14700T: 1.3 GHz I5-14500: 2.6 GHz I5-14500T: 1.7 GHz I5-14400: 2.5 GHz I5-14400T: 1.5 GHz I5-14400F: 2.5 GHz I3-14100: 3.5 GHz I3-14100T: 2.7 GHz 300: 3.9 GHz 300T: 3.4 GHz 13th Generation Processors: i9-13900(E): 2.0 GHz i9-13900TE: 1.1 GHz i7-13700(E): 2.1 GHz i7-13700T(E): 1.4 GHz i5-13500(E): 2.5 GHz i5-13500T(E): 1.6 GHz i5-13400(E): 2.5 GHz i3-13100(E): 3.4 GHz i3-13100T(E): 2.5 GHz 12th Generation Processors: i9-12900(E): 2.4 GHz i9-12900TE: 1.1 GHz i7-12700(E): 2.1 GHz i7-12700TE: 1.4 GHz i5-12500(E): 3.0 GHz i5-12400: 2.5 GHz i5-12500TE: 1.9 GHz i3-12100(E): 3.3 GHz i3-12100TE: 2.1 GHz Pentium G7400E: 3.6 GHz Pentium G7400TE: 3.0 GHz Celeron G6900E: 3.0 GHz Celeron G6900TE: 2.4 GHz |
| L3 Cache | 14th Generation Processors: I9-14900: 36 MB I9-14900T: 36 MB I7-14700: 33 MB I7-14700T: 33 MB I5-14500: 24 MB I5-14500T: 24 MB I5-14400: 20 MB I5-14400T: 20 MB I5-14400F: 20 MB I3-14100: 12 MB I3-14100T: 12 MB 300: 6 MB 300T: 6 MB 13th Generation Processors: i9-13900(E): 36 MB i9-13900TE: 36 MB i7-13700(E): 30 MB i7-13700T(E): 30 MB i5-13500(E): 24 MB i5-13500T(E): 24 MB i5-13400(E): 20 MB i3-13100(E): 12 MB i3-13100T(E): 12 MB 12th Generation Processors: i9-12900(E): 30 MB i9-12900TE: 30 MB i7-12700(E): 25 MB i7-12700TE: 25 MB i5-12500(E): 18 MB i5-12400: 18 MB i5-12500TE: 18 MB i3-12100(E): 12 MB i3-12100TE: 12 MB Pentium G7400E: 6 MB Pentium G7400TE: 6 MB Celeron G6900E: 4 MB Celeron G6900TE: 4 MB |
| Memory | Technology: Dual Channel DDR5 5600 Non-ECC UDIMM; Dual Channel DDR5 5600 ECC UDIMM (AIMB-788E-0R version) Max Capacity: 192 GB Sockets: 4 x 288-pin DIMM |
| Network (LAN) | Interface: 10/100/1000 Mbps Controller: GbE LAN1: Intel I219-LM (PHY); GbE LAN2: Intel I210-AT Connector: 2 x RJ-45 |
| I/O | VGA: 1 (Resolution up to 1920 x 1200 @ 60Hz) HDMI: 1 (Resolution up to 3840 x 2160 @ 60Hz) DisplayPort: 1 (Resolution up to 4096 x 2304 @ 60Hz) Ethernet: 2 USB: 8 (4 x USB 3.2 Gen 1, 4 x USB 2.0) Audio: 2 (Line-out, Mic-in) Serial: 1 (RS-232) |
| Expansion Slots | PCIe x1: 1 (Gen 4) PCIe x4: 2 (1 x Gen 4 x4 link, 1 x Gen 3 x4 link); 1 (AIMB-788E-10 version, 1 x Gen 4 x4 link) PCIe x8: 2 (1 x Gen 4 x4 link, 1 x Gen 3 x4 link) PCIe x16*: 2 (1 x Gen 5 x8 link, 1 x Gen 4 x8 link) * The PCIe x16 slot, from CPU, can only support graphic cards and storage cards according to the specification recommended by Intel. Other types of add-on cards might not work properly. For the compatible device list validated on the PCIe x16 slot, please refer to the user manual. |
| Watchdog TImer | Output: System reset Interval: Programmable 1 ~ 255 sec |
| Power Consumption | Power On: Intel Core i 65W , DDR5 32 GB x 4 Voltage: +3.3 V +5 V +12 V +5 Vsb -12 V -5 V Current: 1.54 A 1.96 A 0.07 A 0.08 A 0.04 A 0.01 A |
| Dimension | 304.8 x 244 mm (12" x 9.6") |
