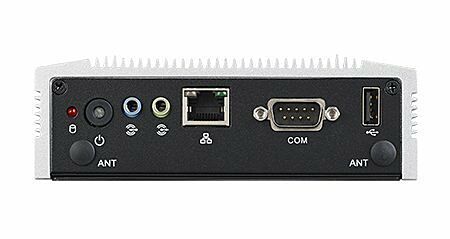

Advantech ARK-1123C Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC

ARK-1123C-S3A2E

Starting at $610.00

Main Features:

  • Intel Atom Processor E3825 Dual Core 1.33 GHz SoC
  • 1 x 2.5" SATA HDD/SSD Bay & 1 x VGA
  • 2 x GbE for Multiple Internet Transmission
  • 2 x RS-232/422/485 (BIOS selection)
  • 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
  • 1 x Half Size MiniPCIe (ex. mSATA)
  • Optional VESA / DIN Rail / Wall Mounting kits
  • Threaded DC jack design
  • Supports SUSIAccess and Embedded Software APIs

System Configuration


* Selection required

ARK-1123C-S3A2E
Your Configuration
ARK-1123C-S3A2E Advantech ARK-1123C Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC
Advantech ARK-1123C Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC

In stock

Add to Favorites

$610.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Specifications
ManufacturerAdvantech
ProcessorIntel® Atom™ Processor E3825 Dual Core SoC
ChipsetIntel Atom SoC integrated
AudioALC-888S, High Definition Audio. Line-out & Line-in
Mini PCI-E1 x Full-size Mini PCIe, supports WLAN or WWAN module|1 x Half-size Mini PCIe, supports mSATA module
mSATALeverage MiniPCIe #2 slot (Suggest to assembly by CTOS or T-Part due to complex installation)
DC InputSingle 12 VDC
Power AdapterAC to DC, DC12 V/3 A, 36 W with threaded design
ConstructionAluminum housing
VibrationWith mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis
MountingVESA/DIN Rail/Wall Mounting Kits (Optional)
MemoryDDR3L 1066 MHz 8 GB 1 x 204-pin SO-DIMM
Humidity95% @ 40 C (non-condensing)
Operating TemperatureWith extended temperature SSD/mSATA/RAM: -30° ~ 70°C with 0.7m/s air flow With standard temperature HDD/SSD/mSATA/RAM peripherals:0°C ~ 40°C with 0.7m/s air flow
Storage Temperature-40°C ~ 85°C (-40°F ~185°F)
ShockWith mSATA/SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration
EMCCE/FCC Class B, CCC, BSMI
Dimension133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")
