Intel J1900 QC 2.0GHz D1 ADP 62368

ARK-1123H-U0A3

Starting at $675.00

Main Features:

  • Intel Celeron J1900 Quad Core 2.0 GHz SoC
  • 1 x 2.5" SATA HDD/SSD Bay
  • 2 x GbE for Multiple Internet Transmission
  • 2 x Independent HDMI
  • 1 x RS-232/422/485 (BIOS selection)
  • 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
  • 1 x Half Size MiniPCIe (ex. mSATA)
  • Optional VESA / DIN Rail / Wall Mounting kits
  • Threaded DC jack design
  • Supports SUSIAccess and Embedded Software APIs
  • Support WIFI 802.11 a/b/g/n bundled for IoT Gateway
PDF Document - Data Sheet ARK-1123H-U0A3
Data Sheet ARK-1123H-U0A3
(Size: 1.4 MB)

System Configuration


* Selection required

Intel J1900 QC 2.0GHz D1 ADP 62368
Your Configuration
ARK-1123H-U0A3 Intel J1900 QC 2.0GHz D1 ADP 62368
Intel J1900 QC 2.0GHz D1 ADP 62368

In stock

Add to Favorites

$675.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

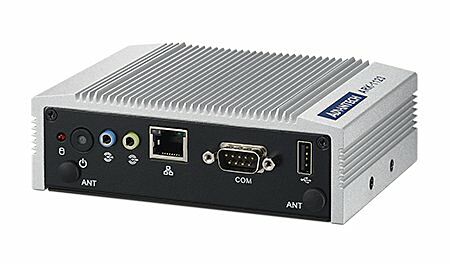

Intel® Celeron® Quad Core J1900 SoC with Dual HDMI/GbE IoT Fanless BOX PC
PDF Document - Data Sheet ARK-1123H-U0A3
Data Sheet ARK-1123H-U0A3
(Size: 1.4 MB)
Specifications
ManufacturerAdvantech
ProcessorIntel® Celeron™ Processor J1900 Quad Core 2.0 GHz SoC
ChipsetIntel Atom SoC integrated
AudioALC-888S, High Definition Audio. Line-out & Line-in
Mini PCI-E1 x Full-size Mini PCIe, supports WLAN or WWAN module |1 x Half-size Mini PCIe, supports Half-size mSATA module
mSATALeverage MiniPCIe #2 slot (Suggest to assembly by CTOS or T-Part due to complex installation)
DC InputSingle 12 VDC
Power AdapterAC to DC, DC12 V/3 A, 36 W with threaded design
ConstructionAluminum housing
VibrationWith mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis
CPU Cores4
CPU FamilyIntel Celeron
Base CPU Speed2.1 to 3.0 GHz
Video OutputHDMI
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.01-2
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Mini
MountingVESA/DIN Rail/Wall Mounting Kits (Optional)
CPUIntel® Celeron® Processor J1900 Quad Core 2.0 GHz SoC
Frequency2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled)
L2 Cache2 MB
MemoryDDR3L 1333 MHz 8GB 1 x 204-pin SO-DIMM
Network (LAN)

LAN #1 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

LAN #2 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Watchdog TImer255-level timer interval, setup by software
Humidity95% @ 40 C (non-condensing)
Operating Temperature

With extended temperature SSD/mSATA/RAM : -20°C ~ 60°C with 0.7m/s air flow
With standard temperature HDD/SSD/mSATA/RAM peripherals:0°C ~ 40°C with 0.7m/s air flow

Storage Temperature-40°C ~ 85°C (-4°F ~ 185°F)
Shock

With mSATA/SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration

EMCCE/FCC Class B, CCC, BSMI
SafetyUL, CCC, BSMI, CB
Power Input Voltage12 VDC
Power Consumption

Typical: 5.64W

Max: 14.04W

Dimension133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")
