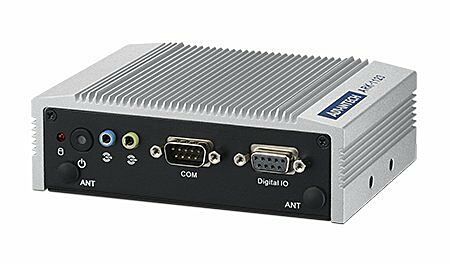

ARK-1123L A4 Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC

ARK-1123L A4 Series

Starting at $550.00

Main Features:

  • Intel Atom Processor E3825 Dual Core 1.33 GHz SoC
  • 1 x 2.5" SATA HDD/SSD Bay
  • 1 x GbE & 1 x VGA & 1 x GPIO
  • 1 x RS-232 & 1 x RS-232/422/485
  • 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
  • 1 x Half Size MiniPCIe (ex. mSATA)
  • Optional VESA / DIN Rail / Wall Mounting kits
  • Threaded DC jack design
  • Supports SUSIAccess and Embedded Software APIs
PDF Document - ARK-1123L-A4 Data Sheet
ARK-1123L-A4 Data Sheet
(Size: 1.9 MB)

System Configuration


* Selection required

Your Configuration
Intel industrial pc
ARK-1123L A4 Intel Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC

In stock

$550.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Specifications
Product Available OnOct 15, 2023
ManufacturerAdvantech
CPU Cores2
CPU FamilyIntel Atom
Base CPU SpeedUnder 2.0 Ghz
Video OutputVGA
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.01-2
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Mini
MountingVESA/DIN Rail/Wall Mounting Kits (Optional)
MemoryDDR3L 1066 MHz 8GB 1 x 204-pin SO-DIMM
Humidity95% @ 40 C (non-condensing)
Operating TemperatureWith extended temperature SSD/mSATA/RAM: -30°C ~ 70°C with 0.7m/s air flow|With standard temperature HDD/SSD/mSATA/RAM peripherals:0°C ~ 40°C with 0.7m/s air flow
Storage Temperature-40°C ~ 85°C (-40°F ~ 185°F)
ShockWith mSATA/SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration
EMCCE/FCC Class A, CCC, BSMI
Dimension133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")
