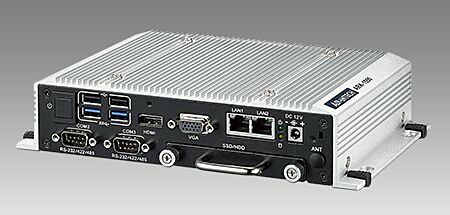

Advantech Intel Core i5, 4300U 1.9GHz, Slim and Panel Mountable Fanless Box PC

ARK-1550-S9A1E

Starting at $1,390.00

Main Features

  • i5-4300U 1.9 GHz
  • One Removable 2.5 inch SATA Drive Bay and mSATA slot
  • Triple Independent Displays by VGA + HDMI + LVDS (LVDS option)
  • Optional VESA / DIN Rail Mounting kits
  • Supports 2 x GbE LAN and GPIO
  • Built-in 1 x full size MiniPCIe (i.e.: 3G module) and
  • 1 x half size MiniPCIe slot (i.e.: WIFI module)
PDF Document - ARK-1550 Datasheet
ARK-1550 Datasheet
(Size: 835.7 KB)
PDF Document - ARK-1550 User Manual
ARK-1550 User Manual
(Size: 2.5 MB)

System Configuration


* Selection required

ARK-1550-S9A1E
Your Configuration
ARK-1550-S9A1E Advantech Intel Core i5, 4300U 1.9GHz, Slim and Panel Mountable Fanless Box PC
Advantech Intel Core i5, 4300U 1.9GHz, Slim and Panel Mountable Fanless Box PC

In stock

Add to Favorites

$1,390.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

PDF Document - ARK-1550 Datasheet
ARK-1550 Datasheet
(Size: 835.7 KB)
PDF Document - ARK-1550 User Manual
ARK-1550 User Manual
(Size: 2.5 MB)
Specifications
ManufacturerAdvantech
ProcessorIntel® i5-4300U Dual Core 1.9 GHz (Up to 2.9 GHz w/ Turbo Boost 2.0 enabled)
GraphicsIntel GT2-4400 Graphics
Mini PCI-E1 x Full-size Mini PCIe, supports mSATA storage or WWAN module|1 x Half-size Mini PCIe, supports WLAN module
mSATALaverage MiniPCIe #1 slot
DC Input12 VDC
ConstructionAluminum housing
Operating SystemWindows 7, Windows 10, Linux
MountingDesk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional)
MemoryDDR3L 1600 MHz 8GB 1 x 204-pin SO-DIMM
Operating TemperatureWith extended temperature SSD/mSATA/RAM :-20°C ~ 55°C with 0.7m/s air flow|With standard temperature HDD/SSD/mSATA/RAM peripherals:0°C ~ 40°C with 0.7m/s air flow
Storage Temperature-40°C ~ 85°C
EMCCE/FCC Class A, CCC, BSMI
Dimension223 x 46.6 x 133.0 mm (8.69"" x 1.81"" x 5.18"")
