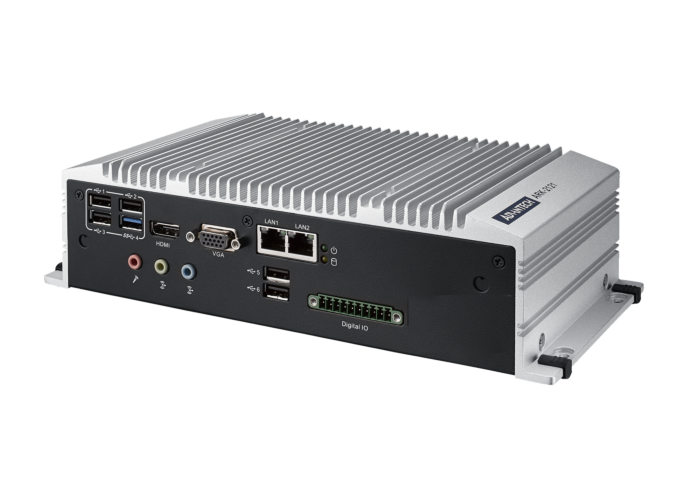

ARK-2121F-U0A2E Advantech Fanless Box PC with Intel Celeron Quad Core Processor

Starting at $860.00

Main Features

  • Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
  • VGA and HDMI dual independent display
  • 6 x COM, 6 x USB, isolated DIO
  • 9 ~ 36 VDC wide range power input
  • -20°C~ 70° C extend temperature operating
  • Mini PCIe expansion with SIM holder for communication module
  • mSATA and 1 x 2.5" SATA storage device
  • Optional DVI/2nd HDMI/4x GbE by project support
  • Internal USB for security dongle
ARK-2121F-U0A2E Datasheet
(Size: 1.5 MB)
Core System Configuration
ARK-2121F-U0A2E

* Required Fields

Your Configuration
ARK-2121F-U0A2E Advantech Fanless Box PC with Intel Celeron Quad Core Processor
Advantech Fanless Box PC with Intel Celeron Quad Core Processor

In stock

Add to Favorites

$860.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Specifications
ProcessorIntel® Celeron® Processor J1900 Quad Core SoC 2.0 GHz
GraphicsIntel® Celeron® J1900 SoC integrated, 7th Gen. Intel Graphic core
Video Port1 x VGA Up to 2048 x 1152 @ 60Hz| 1 HDMI port (default), HDMI 1.4a for HD video playback, 1080P at 60Hz (2nd HDMI support by project only)
AudioRealtek ALC888S, High Definition Audio|Line-out,Mic-in,Line-in
Mini PCI-E2 x full size Mini PCIe (1 with SIM holder)
SATASupports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)
mSATA 1 x full size mSATA socket, with USB signal co-lay
Power AdapterAC to DC, DC19 V/3.42 A, 65 W (Optional)
Dimension264.5mm x 68.4mm x 133.0 mm (10.41" x 2.69" x 5.24")
Construction Aluminum housing
Mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting
Operating TemperatureWith extended temperature peripherals: -20°C ~ 70°C (-4°F ~ 158°F)|With 0.7m/s air flow with 2.5-inch hard disk 0° ~ 45°C (32° ~ 112°F) with 0.7m/s air flow
Storage Temperature-40°C ~ 85°C (-40° ~ 185°F)
Humidity95% @ 40°C (non-condensing)
VibrationWith SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
ShockWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMCCE/FCC Class A, CCC, BSMI
ManufacturerAdvantech
