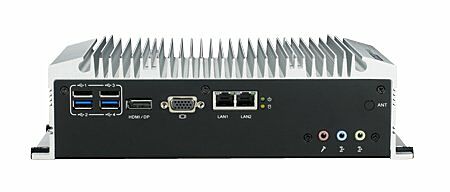

Advantech Intel 3rd Generation Core i3-3217UE/i7-3517UE High Performance Fanless Embedded Box PC

ARK-2150L-S7A1E

Starting at $1,665.00

Main Features

  • Intel Core i3 and i7 processors + Intel QM77 PCH, 1 x DDR3/DDR3L
  • SO-DIMM support up to 8 GB
  • DirectX11, OpenGL3.1, OpenCL1.1, dual independent display: VGA + HDMI/ DisplayPort
  • Supports Intel AMT8.0,
  • Supports up to 2 x GbE, 2 x USB 3.0, 4 x USB 2.0 and 4 x COMs ports
  • Supports 1 x internal mSATA socket and 1 x 2.5" HDD drive bay
  • Lockable DC input jack
  • Supports iManager, SUSIAccess and Embedded Software APIs
  • IP40
PDF Document - ARK-2150L-S7A1E Datasheet
ARK-2150L-S7A1E Datasheet
(Size: 1.3 MB)

System Configuration


* Selection required

ARK-2150L-S7A1E
Your Configuration
ARK-2150L-S7A1E Advantech Intel 3rd Generation Core i3-3217UE/i7-3517UE High Performance Fanless Embedded Box PC
Advantech Intel 3rd Generation Core i3-3217UE/i7-3517UE High Performance Fanless Embedded Box PC

In stock

Add to Favorites

$1,665.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Specifications
ManufacturerAdvantech
ProcessorIntel® Celeron™ 1047UE 17 W 1.4 GHz 2MB|Intel® Core™ i3-3217UE 17 W 1.6 GHz 3MB|Intel® Core™ i7-3517UE 17 W 1.7 GHz (up to 2.8GHz) 4MB
Video Port1 x VGA up to 2048 x 1536| HDMI:1920 x 1200 @ 60Hz
AudioHD Audio Realtek ALC892, High Definition Audio (HD) 1 (Line-in, Line out, Mic-in)
DC Input21.48W
Power AdapterLithium 3 V / 210 mAH
CPU Cores2
CPU FamilyIntel Celeron, Intel Core
Base CPU SpeedUnder 2.0 Ghz
Video OutputDisplay Port, VGA, HDMI
LAN Ports1-4
Serial Ports3-4
USB 2.03-4
USB 3.01-2
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed1600 MHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Full
MountingDesk/ Wall/ VESA/ DIN-Rail mounting
MemoryDDR3 1600MHz, DDR3L 1333 MHz 8 GB 1 x 204-pin SODIMM
EMCCE, FCC Class A, CCC, BSMI
Dimension264.5 x 133.0 x 75.1 mm
