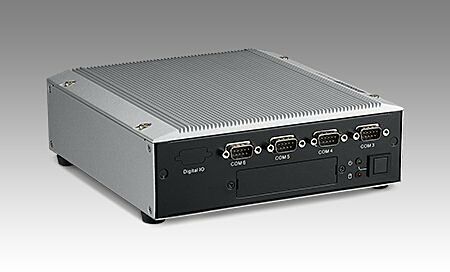

Intel Celeron J1900 D1 QC with 6 COM an

ARK-6322-Q0A2E

Starting at $590.00

Main Features:

  • Intel Celeron Quad Core J1900 2.0GHz SoC
  • DDR3L 1333 MHz SO-DIMM memory support up to 8GB
  • Dual display : VGA + DisplayPort
  • Multiple I/O: 1 x USB 3.0, 7 x USB 2.0, 2 x LAN and 6 x COM
  • Support 1 x Full-size and 1 x half-size MiniPCIe
  • Lockable DC jack design
  • Optional iDoor Modules
  • Optional VESA / Wall Mounting kits
  • Supports SUSIAccess and Embedded Software APIs
PDF Document - ARK-6322-Q0A2E Datasheet
ARK-6322-Q0A2E Datasheet
(Size: 1003.5 KB)

System Configuration


* Selection required

Your Configuration
ARK-6322-Q0A2E Intel Celeron J1900 D1 QC with 6 COM an
Intel Celeron J1900 D1 QC with 6 COM an

In stock

Add to Favorites

$590.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

PDF Document - ARK-6322-Q0A2E Datasheet
ARK-6322-Q0A2E Datasheet
(Size: 1003.5 KB)
Specifications
ManufacturerAdvantech
ProcessorIntel® Celeron™ Processor J1900 Quad Core
Video PortVGA+DP
AudioRealtek ALC892, High Definition Audio, Line-out or Mic-in
Mini PCI-E1 x Full-size Mini PCIe, supports mSATA module and WWAN module|1 x Half-size Mini PCIe, supports WLAN module
SATA HDD1 x SATA HDD Bay for 2.5" or 3.5" device with maximum height 26.1mm
mSATA1 x mSATA share with mini-PCIe slot
ConstructionAluminum housing
VibrationWith HDD: 0.5 Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis
MountingWall mounting kit (optional)| VESA mounting kit (optional)
Memory2 x 204-pin SO-DIMM Dual channel DDR3L 1333MHz SDRAM
Watchdog TImer255-level timer interval, setup by software
Humidity95% @ 40°C (non-condensing)
Operating TemperatureWith extended temperature peripherals/SSD: 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow|With 3.5-inch hard disk 0°C ~ 40°C (32°F ~ 104°F) with 0.7 m/s air flow;|With 2.5-inch hard disk 0°C ~ 45°C (32°F ~ 112°F) with 0.7 m/s air flow
Storage Temperature-40°C ~ 85°C (-40°F ~ 185°F)
ShockWith HDD: 10 G, IEC 60068-2-27, half sine, 11 ms duration
EMCCE/FCC Class A, CCC, BSMI
Power Input Voltage12 VDC, ± 10%
Weight2.0 kg
Dimension200mm x 64mm x 200 mm
