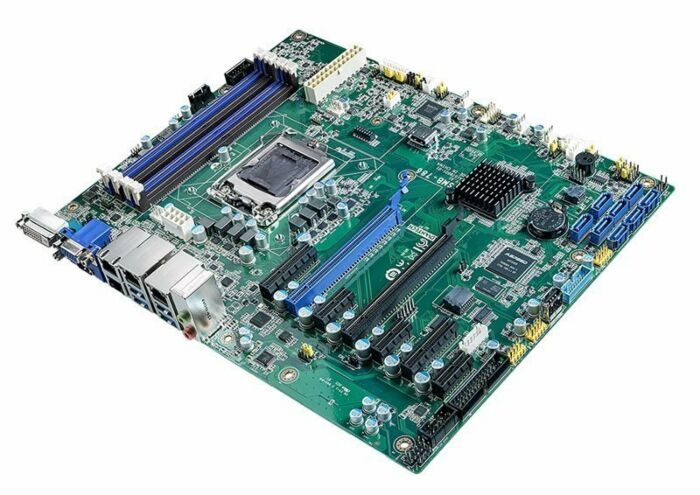

LGA 1151 ATX Server Board C246 GbEx2

ASMB-786G2-00A1
$630.00

Main Features

  • Supports LGA 1151 Intel® Xeon® & 8th Generation Core™ i7/i5/i3 processors
  • DDR4 2666/2400/2133 MHz ECC/Non-ECC UDIMM up to 64 GB
  • 1 Gen 3.0 PCIe x16 link (or two PCIe x16 slots with x8 link), two PCIe x4, and three PCIe x1 slots
  • Triple displays - DVI-D, VGA and HDMI 2.0 ports
  • 8 SATA3 ports and four USB 3.1 ports
  • 2 X RJ45 Ethernet Connectors
  • Rackmount optimized placement with positive air flow design
  • 0 ~ 60° C ambient operation temperature range
PDF Document - ASMB-786G2-00A1 Datasheet
ASMB-786G2-00A1 Datasheet
(Size: 992.5 KB)
PDF Document - ASMB-786G2-00A1 Datasheet
ASMB-786G2-00A1 Datasheet
(Size: 992.5 KB)
Specifications
ManufacturerAdvantech
CPU Cores4, 6
CPU FamilyIntel Core, Intel Xeon
Base CPU SpeedUnder 2.0 Ghz, 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz
Video OutputDVI-I, VGA, HDMI
LAN Ports1-4
Serial Ports1-2
USB 3.11-4
Max Memory32 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed2400 MHz, 2666 MHz
