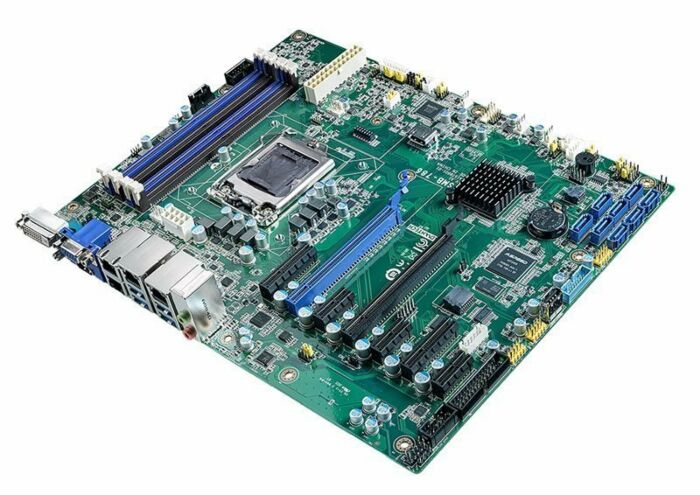

LGA 1151 Intel® Xeon® E & 8th/9th Generation Core™ ATX Server Board
ASMB-786G4-00A1/U $895.00
Main Features
- Supports LGA 1151 Intel® Xeon® & 8th Generation Core™ i7/i5/i3 processors
- DDR4 2666/2400/2133 MHz ECC/Non-ECC UDIMM up to 128GB
- 1 Gen 3.0 PCIe x16 link (or two PCIe x16 slots with x8 link), two PCIe x4, and three PCIe x1 slots
- Triple displays - DVI-D, VGA and HDMI 2.0 ports
- 8 SATA3 ports and six USB 3.1 ports
- 4 X RJ45 Ethernet Connectors
- Rackmount optimized placement with positive air flow design
- 0 ~ 60° C ambient operation temperature range
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 4, 6 |
| CPU Family | Intel Core, Intel Xeon |
| Base CPU Speed | Under 2.0 Ghz, 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz |
| Video Output | DVI-I, VGA, HDMI |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 3.1 | 1-4 |
| Max Memory | 32 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 2400 MHz, 2666 MHz |
