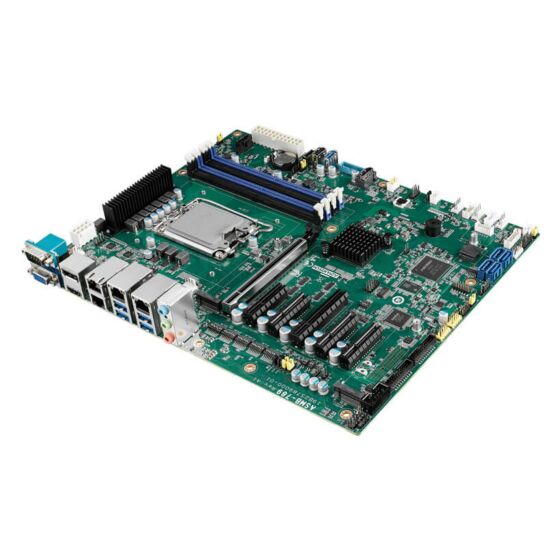

ASMB-789: LGA1851 Intel Core Ultra 9/7/5 ATX with 4x DDR5, 5xPCIe, 7xUSB 3.2, 4xSATA3, Quad/Dual LAN
ASMB-789LGA1851 Intel Core Ultra 9/7/5 ATX with 4x DDR5, 5xPCIe, 7xUSB 3.2, 4xSATA3, and Quad/Dual LAN.
- LGA 1851 Intel Core Ultra 9/7/5 processors with W880 chipset
- DDR5 ECC/Non-ECC 5600/4800/4400/MT/s UDIMM up to 192 GB
- one PCIe x 16 (Gen5), one PCIe x 8 (Gen5) and five PCIe x 4 slots
- Triple displays - DP, VGA, and HDMI 2.0 ports
- Four SATA 3 ports and seven USB 3.2 ports
- One M.2 2280 (PCIe x4)
- Rackmount optimized placement with positive air flow design
- 0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range
Frequently Asked Questions
The ASMB-789 uses an Intel® LGA 1851 socket and supports Intel® Core™ Ultra 9/7/5 processors with a TDP up to 125W, paired with the Intel® W880 chipset.
The board has 4 DDR5 UDIMM slots (dual channel, ECC/Non-ECC) supporting speeds of 5600*/4800/4400 MT/s, with a maximum total capacity of 192 GB. Note: 5600 MT/s is only supported with 1 DIMM per channel (2 DIMMs total).
There are 7 total PCI/PCIe slots: one PCIe x16 (Gen5), one PCIe x8 (Gen5 x16 link), and five PCIe x4 slots (Gen4). One of the x4 slots can optionally be configured as an M.2 2280 slot on the G4 SKU. There is also a dedicated M.2 2280 (PCIe Gen4 x4) connector for storage.
The board provides triple display support via one VGA port (up to 1920 x 1200 @ 60 Hz), one HDMI 2.0 port (up to 4096 x 2160 @ 60 Hz), and two DisplayPort connectors (up to 8K60 Hz 30bpp with DSC).
The board provides 9 USB connectors total: 3 x USB 3.2 Gen 1 (2 ports), 5 x USB 2.0 (6 ports), and 1 x USB Gen2 Type E. The rear panel also has 4 external USB 3.2 Gen 2 ports. For serial connectivity, there are 5 serial port headers (2 x RS-232 dual-port for 4 ports, plus 1 x RS-232 single-port), and 1 external serial port is included via a COM cable in the package.
The ASMB-789 operates from 0 to 60 °C (32 to 140 °F) ambient, though the actual range depends on CPU speed and cooler solution. Humidity tolerance is up to 95% RH non-condensing at 40 °C.
Windows 10/11 (64-bit) and Windows Server 2022 (64-bit) have been validated on the ASMB-789.
The board uses a 24-pin SSI power connector plus an 8-pin SSI 12V power connector. Example current draw at power-on with an Ultra9 285 3.7GHz CPU and 128GB DDR5 5600 (32GB x4) is: 3.3V @ 2.02A, 5V @ 2.54A, 12V @ 0.39A, 12V_8P @ 0.69A, 5VSB @ 0.09A.
The G2 version (ASMB-789G2-00A1) has 2 RJ-45 LAN ports and no IPMI support. The G4 versions (ASMB-789G4-00A1 and ASMB-789G4-00A1U) have 4 RJ-45 LAN ports and include IPMI (Y). All versions share the same W880 chipset, DDR5 memory support, VGA+DP+HDMI display outputs, and 4 SATA III ports.
The ASMB-789 is an ATX form factor board with dimensions of 304.8 x 244 mm (12 x 9.6 in).
How-to Guides
- Locate the onboard M.2 2280 connector (PCIe Gen4 x4 link).
- Insert the M.2 2280 module into the slot at the correct angle.
- Secure the module using the M.2 device screw included in the packing list (part number 1930005673-11).
- Connect a 24-pin SSI power connector to the main board power input.
- Connect the 8-pin SSI 12V power connector to supply additional CPU power.
- Verify voltage rails (3.3V, 5V, 12V, 12V_8P, 5VSB) are within the specified power requirements before powering on.
- Determine your CPU's TDP (up to 125W supported).
- Choose from the optional Advantech CPU coolers: LGA 1700 CPU cooler for 3U/4U tower (CPU 230W at ambient 30°C), LGA 1700 cooler for 2U/4U chassis (CPU 125W), or LGA 1700 cooler for 2U/4U chassis (CPU under 65W).
- Install the proprietary ASMB-789 CPU cooler purchased from Advantech; other brands may not be compatible.
- Use the COM1 cable included in the packing list (part number 1700001788) to connect to a serial port header.
- Route the cable to the external serial port location.
- Connect your RS-232 serial device to the external port.
