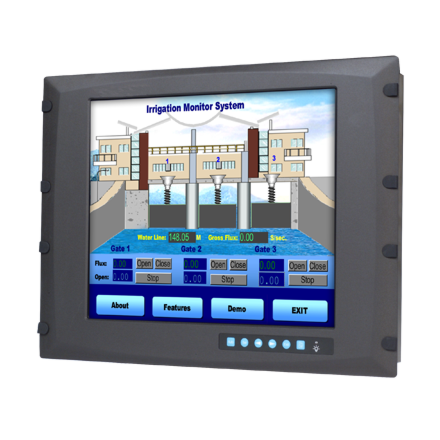

8U 17"SVGA WT Ind. Monitor w/Resistive
FPM-3171G-R3BEStarting at $1,640.00
Main Features:
- 17" SXGA TFT LED LCD with 50,000 backlight life time
- Robust design with stainless steel chassis and aluminum front panel
- Anti-glare screen with tempered glass and IP65 certified front panel
- Lockable OSD control pad on rear cover
- Supports industrial 24VDC power input
- Supports panel, wall, desktop, rack or VESA arm mounting
- Supports 8U pre-drill Rackmount mounting hole
Frequently Asked Questions
The monitor has a VGA port and a DVI-D port for direct video signal connections.
The FPM-3171G can be powered via a Phoenix jack accepting 24 VDC input, or via a DC jack accepting 12 VDC input from a power adapter. Power consumption is 23W (+/-20%).
The monitor operates from -20 to 60 °C (-4 to 140 °F) and can be stored from -30 to 80 °C (-22 to 176 °F), with storage humidity up to 90% at 50 °C non-condensing. The front panel is IP65 compliant.
The monitor is certified to BSMI, CCC, CE, FCC Class A, and UL standards.
The FPM-3171G uses a resistive touchscreen with a Penmount 6000 driver. It connects via RS-232 or USB, has a lifespan of 35 million touches at a single point, light transmission greater than 80%, and touch resolution linearity of +/-20% (power consumption +5V @ 100mA).
The touchscreen driver supports Windows XP, 2000, Vista, 7, 8/8.1, 10, as well as XP/7/8/10 Embedded, CE, and Linux.
The monitor supports panel, wall, desktop, VESA arm, and 19" rackmount mounting. It also has 8U pre-drilled rackmount mounting holes, and direct rack mounting does not require an additional accessory.
The FPM-3171G has a 17" SXGA TFT LCD with LED backlight, maximum resolution of 1280 x 1024, 16.7M colors, a viewing angle of 160/140 (H/V), luminance of 350 cd/m2, a contrast ratio of 1000:1, and a backlight life of 50,000 hours.
The FPM-3171G measures 482 x 354.8 x 63.5 mm (18.98 x 13.97 x 2.52 in) and weighs 9.25 kg (20.39 lb) net. The panel cutout dimensions are 447.2 x 329.2 mm (17.6 x 12.96 in).
How-to Guides
- Choose either the Phoenix jack (24 VDC input) or the DC jack (12 VDC input) power connection depending on your available power adapter.
- If using the DC jack, connect a compatible power adapter such as the 96PSA-A60W12V1-1 (100-240V 60W 12V 5A).
- If using the Phoenix jack, connect a compatible power adapter such as the 96PSA-A60W24T2 (100-240V 60W 24V 2.5A).
- Use the appropriate regional power cable (US, EU, UK, or China/Australia plug, 1.8 M) to connect the adapter to mains power.
- Use the 8U pre-drilled rackmount holes on the chassis for direct rack mounting; no additional accessory is required.
- Align the monitor with the rack's mounting holes, noting the rackmount hole diameters of 6.5 mm (vertical) and 9 mm (horizontal).
- Secure the monitor to the rack using appropriate hardware matching these hole dimensions.
- Connect the touchscreen to the host computer using either the T/S RS-232 port or the T/S USB port on the I/O panel.
- Install the Penmount 6000 touchscreen driver on the host system.
- Select the appropriate driver package for your operating system (Windows XP, 2000, Vista, 7, 8/8.1, 10, or XP/7/8/10 Embedded, CE, or Linux).
FPM-3171G is a 17" color TFT LCD flat panel monitor specifically designed for industrial applications. With a display size of 17", FPM-3171G provides an adequate display area with sharp and vivid images. The monitor also supports direct VGA signal transmissions, allowing users to upgrade the displays without altering the existing infrastructure. The provision of OSD function keys makes it easy to adjust the onscreen display. Furthermore, the stainless steel chassis and IP65-rated aluminum front panel ensure suitability for industrial applications.
| Manufacturer | Advantech |
|---|---|
| Brightness | 300-399 nit |
| Resolution | 1280 x 1024 |
| Screen Size | 15.1-19" |
| Video Output | DVI-D, VGA |
| Operating System | Windows 7, Windows 10, Linux |
| Certification | BSMI, CCC, CE, FCC Class A, UL |
| Mounting | Panel, wall, desktop, VESA arm, and 19" rackmount |
| Memory | 1 x 204-pin SO-DIMM DDR3L 1333 MHz 7 GB |
| Display Type | SXGA TFT LCD with LED backlight |
| Display Size | 17" |
| Max Resolution | 1280 x 1024 |
| Max Colors | 16.7M |
| Luminance | 350 |
| Viewing Angle | 160/140 |
| Backlight Lifetime | 50,000 hours |
| Contrast Ratio | 1000:1 |
| Light Transmission | > 80% |
| Humidity | 90% @ 50 °C non-condensing |
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -30°C ~ 80°C (-22°F ~ 176°F) |
| Vibration Protection | 5 ~ 500 Hz, 1 Grms (Operating, Random) |
| Power Input Voltage | Phoenix Jack: 24 VDC input. DC Jack: 12 VDC Input |
| Power Consumption | 23W +20% |
| OS Support | Windows XP,2000,Vista,7,8/8.1,10 , XP/7/8/10 Embedded,CE,Linux |
| Weight | 9.25kg |
| Dimension | 482 x 354.8 x 63.5 mm (18.98 x 13.97 x 2.52 in) |
