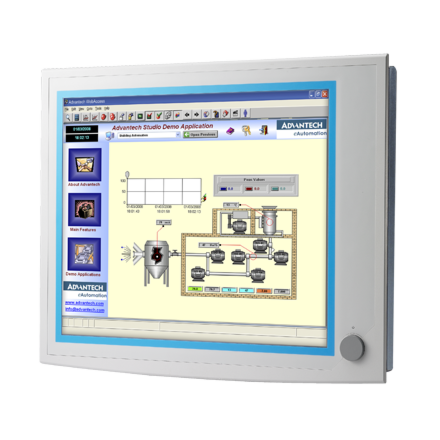

19" SXGA Ind.LED Monitor w/ Resistive T

FPM-5191G-R3BE

Starting at $1,225.00

Main Features:
  • 19" SXGA TFT LCD LED backlight
  • Direct VGA & DVI-D input interface
  • Lockable OSD keys with 2 user-defined contrast/brightness settings
  • Flat-sealed front panel
  • Robust design with anti-rust chassis and aluminum die-cast front panel
  • Front accessible USB connector
  • Combo RS-232 & USB interface for touchscreen function (optional)
  • Supports industrial 10-30 VDC power input with phoenix jack
  • Supports panel, wall, desktop, rack or VESA arm mounting
  • Front panel is IP65 compliant
PDF Document - FPM-5191G-R3BE Datasheet
FPM-5191G-R3BE Datasheet
(Size: 508.7 KB)

System Configuration


* Selection required

Your Configuration
FPM-5191G-R3BE 19" SXGA Ind.LED Monitor w/ Resistive T
19" SXGA Ind.LED Monitor w/ Resistive T

In stock

Add to Favorites

$1,225.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

The FPM-5000G series comprises 15", 17", and 19" flat-panel color monitors with LED backlights that provide an ample display area and sharp, vivid images. Specifically designed for industrial applications, these monitors support Direct VGA and DVI-D signal transmissions, which allow VGA control cards to be integrated in the system. The onscreen display output can be adjusted using two user-defined function keys. The front-accessible USB connector provides easy access to the controller, while the wide-range (10 ~ 30 VDC) power support makes these monitors ideal for factory and machine automation display applications.

PDF Document - FPM-5191G-R3BE Datasheet
FPM-5191G-R3BE Datasheet
(Size: 508.7 KB)
Specifications
ManufacturerAdvantech
Video Port1 x VGA|1 x DVI
Brightness300-399 nit
Resolution1280 x 1024
Screen Size15.1-19"
Video OutputDVI-D, VGA
Operating SystemWindows 7, Windows 10, Linux
CertificationBSMI, CCC, CE, FCC Class A, UL
Enclosure

Front panel: Aluminum and flat-sealed. Rear cover: Anti-rust coating

MountingPanel, wall, desktop, VESA arm, or 19" rackmount
Display Type19" SXGA
Display Size19"
Max Resolution1280 x 1024
Max Colors16.7 M
Luminance350
Viewing Angle170/160
Backlight Lifetime50,000 Hours
Contrast Ratio1000:1
Light Transmission> 80%
Type5-wire resistive
Humidity

10 ~ 90% non-condensing

Operating Temperature0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature-20°C ~ 60°C (-4°F ~ 140°F)
Power Input Voltage10v - 30v
Power Consumption32 W + 20%
OS SupportWindows XP, Vista,7, 8,10,XPe and Linux
Weight24 lbs
Dimension481.93mm x 384.6mm x 59 mm
