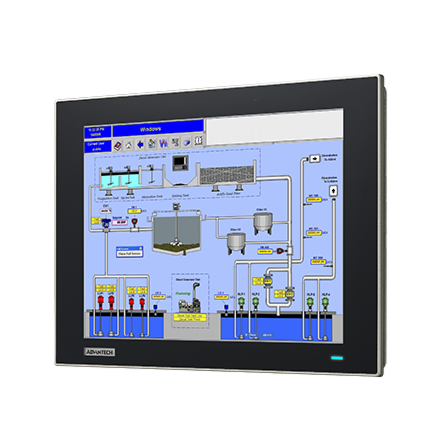

12.1" XGA Ind Monitor w/Resistive TS (V

FPM-7121T-R3AE

Starting at $980.00

Main Features:

  • 12.1" XGA TFT LED LCD with 50,000 backlight life time
  • Robust design with IP66 compliance aluminum front panel
  • Wide operating temperature support -20~60 C
  • Anti-glare screen with tempered glass
  • Supports Panel, Wall, Desktop, Rack or VESA arm mounting
  • Combo RS-232 & USB interface for touchscreen function
  • OSD control pad on rear cover
  • Lockable I/O connectors
PDF Document - FPM-7121T-R3AE Datasheet
FPM-7121T-R3AE Datasheet
(Size: 554.8 KB)

System Configuration


* Selection required

FPM-7121T-R3AE
Your Configuration
FPM-7121T-R3AE 12.1" XGA Ind Monitor w/Resistive TS (V
12.1" XGA Ind Monitor w/Resistive TS (V

In stock

Add to Favorites

$980.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

FPM-7000T series monitors are the first, true-flat, 4:3, industrial-grade monitors. The 5-wire resistive touchscreen is enclosed in a highly durable, die cast aluminum alloy front bezel that provides IP66-rated protection from water and dust ingress. Additionally, the FPM-7000T series monitors support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to ensure easy installation and support for diverse environments.

PDF Document - FPM-7121T-R3AE Datasheet
FPM-7121T-R3AE Datasheet
(Size: 554.8 KB)
Specifications
ManufacturerAdvantech
Video PortVGA & DP
ConstructionFront bezel: Die-cast Aluminum alloy, Rear housing: SECC
Vibration 5 ~ 500 Hz, 1 Grms (Operating, Random)
Brightness400+ nit
Resolution1024 x 768
Screen Size10.1-15"
Video OutputDisplay Port, VGA
Operating SystemWindows 7, Windows 10, Linux
CertificationBSMI, CCC, CE, FCC Class A, UL
Enclosure

Front panel: Die cast magnesium alloy. Rear cover: SECC

MountingStand, Wall, Panel and VESA 75x75 & 100x100mm
Display TypeXGA TFT LED LCD
Display Size12.1"
Max Resolution1024 x 768
Max Colors16.2M
Luminance600
Viewing Angle160/140
Backlight Lifetime50,000 hours
Contrast Ratio700:1
Light TransmissionAbove 75%
Type5-wire, analog resistive
Humidity10 ~ 90% non-condensing
Operating Temperature-20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature-30°C ~ 70°C (-22°F ~ 158°F)
Power Input VoltagePhoenix Connector: 24 VDC input
Power Consumption15 W + 20%
OS SupportWindows XP, Vista,7, 8,10,XPe and Linux
Weight2.6kg (5.73 lbs)
Dimension311.8mm x 238mm x 44.5 mm (12.38" x 9.37" x 1.76")
