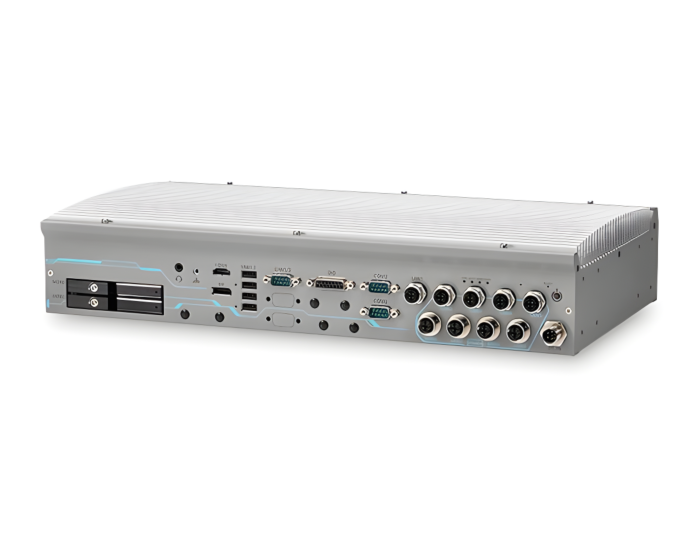

GT-92GC Series: 19" Rack Mount EN50155 Railway Computer with NVIDIA RTX 2000 ADA GPU
GT-92GC SeriesGT-92GC is a 19” rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging the Intel 14th/13th/12th-Gen platform and NVIDIA RTX 2000 ADA. Thanks to its high performance and flexible camera expansion, GT-92GC is ideal for multicamera applications requiring real-time responses, e.g., AI inspection, robotic guidance, and autonomous machines.
- Intel 14th/13th/12th-Gen LGA1700 processor (35W/65W)
- Fanless GPU computer with NVIDIA RTX 2000 ADA
- 2U 19” chassis for rack-mount or wall-mount
- 8V to 48V wide-range DC input via M12 L-Coded connector
- 8x GbE PoE+, 1x GbE ports via M12 X-Coded connectors
- On-board isolated CAN bus for in-vehicle communication
- 1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storage
- 2x full-size mPCIe sockets with internal SIM sockets
- -25°C to 55°C wide-temperature fanless operation
GT-92GC is a 19” rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging the Intel 14th/13th/12th-Gen platform and NVIDIA RTX 2000 ADA. Thanks to its high performance and flexible camera expansion, GT-92GC is ideal for multicamera applications requiring real-time responses, e.g., AI inspection, robotic guidance, and autonomous machines.
GT-92GC has a proven thermal design to guarantee reliable system operation from -25°C to 55°C. It features a passive-cooling design for the motherboard and 70W GPU card. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, GT-92GC is ideal for various vision-based AI application deployments. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5" SATA HDD/SSD to expand storage capacity.
With performance enhancements and comprehensive I/Os, GT-92GC is the perfect edge AI inference platform for industrial environments such as inspection vehicles, smart agriculture, and autonomous machines.
| Product Available On | Jan 5, 2030 |
|---|---|
| Manufacturer | Neousys |
| Short Description | GT-92GC is a 19” rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging the Intel 14th/13th/12th-Gen platform and NVIDIA RTX 2000 ADA. Thanks to its high performance and flexible camera expansion, GT-92GC is ideal for multicamera applications requiring real-time responses, e.g., AI inspection, robotic guidance, and autonomous machines. |
| Processor | Supporting Intel 14th-Gen Core CPU (LGA1700 socket, 65W/35W TDP) Supporting Intel 13th-Gen Core CPU Supporting Intel 12th-Gen Core CPU (LGA1700 socket, 65W/35W TDP) |
| Graphics | Integrated Intel UHD Graphics 770 (32EU) |
| Memory | Up to 64 GB ECC/non-ECC DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel R680E platform controller hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | 8x IEEE 802.3at PoE+ PSE with |
| Video Port | 1x HDMI 1.4, supporting 4096×2160 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Mini PCI-E | 2x full-size mini PCI Express socket with SIM slot |
| SATA HDD | 2x hot-swappable HDD trays for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| DC Input | 43V to 160V DC input (M12 K-coded) |
| Remote Ctrl. & Status Output | Built-in ignition power control |
| Dimension | 440mm (W) x 250mm (D) x 88mm (H) (excl. rack-mount bracket) |
| Weight | 7.7 kg |
| Mounting | Rack-mounting (optional) and wall-mounting (optional) |
| Operating Temperature | With 35W CPU: With 65W CPU: 2For 65W CPUs, the recommended DC input range is 18V to 48V. |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| EMC | EN 50121 (EN 50155 EMC) |
