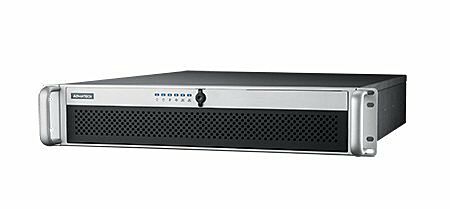

Advantech 2U Rackmount Chassis for ATX Motherboard with 4 SAS/SATA HDD Trays

HPC-7242MB-00XE

Starting at $580.00

Main Features:

  • Supports ATX motherboard in 2U rackmount chassis
  • Shock-resistant disk drive bay holds four hot-swap 3.5 inch and 2.5 inch SAS/SATA disk trays for RAID 5/10 support, one slim optical disk drive, and two 2.5 inch internal drives
  • Supports 80plus single and redundant power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and audible alarm notification for system fault detection
  • Smart fan speed control for system fans
  • Remote management (with SUSIAccess)
PDF Document - HPC-7242MB-00XE Datasheet
HPC-7242MB-00XE Datasheet
(Size: 1.2 MB)

System Configuration


* Selection required

Your Configuration
HPC-7242MB-00XE Advantech 2U Rackmount Chassis for ATX Motherboard with 4 SAS/SATA HDD Trays
Advantech 2U Rackmount Chassis for ATX Motherboard with 4 SAS/SATA HDD Trays

In stock

Add to Favorites

$580.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Specifications
ManufacturerAdvantech
Remote Ctrl. & Status Output CPU/System fan speed , CPU/System temperature , motherboard voltage
VibrationOperating: 1 Grms|Storage: 2 Grms
HumidityOperating: 10 ~ 95% @ 40°C, non-condensing|Storage: 10 ~ 95% @ 60°C, non-condensing
Operating Temperature0°C ~ 45°C
Storage Temperature -40°C ~ 70°C (-40°F ~ 156°F)
Shock10 G (with 11 ms duration, half sine wave)
Weight13.7 kg (30.12 lb)
