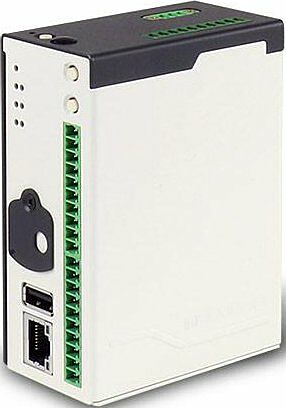

IGT-20 Neousys ARM-based Fanless IIoT and Automation Gateway

Starting at $299.00

  • Industrial grade ARM-based system with pre-installed Debian
  • Compact size, designed for wireless gateway applications
  • Operating temperature from -25°C to 70°C
  • 8V to 25V wide-range DC input
  • Rich Local I/Os, such as USIM Slot, USB, 10/100M LAN, and RS-232/422/485
  • Microsoft Azure Certified for IoT
IGT-20 User Manual
(Size: 1.7 MB)
IGT-20 Data Sheet
(Size: 354.8 KB)
Core System Configuration
IGT-20

* Required Fields

Your Configuration
IGT-20 Neousys ARM-based Fanless IIoT and Automation Gateway
Neousys ARM-based Fanless IIoT and Automation Gateway

In stock

Add to Favorites

$299.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Neousys IGT-20 series, equipped with AM3352 from Texas Instrument's Sitara AM335x family, is an ARM-based Box PC aimed at Industrial Internet of Things (IIoT) Gateway and Industry 4.0 applications. As required by any industrial applications, IGT-20 series is shipped as a ready system preinstalled with Debian and is in compliance with common industrial certifications such as CE/FCC, shock and vibration. It has a power input range of 8 to 25 VDC and a wide operating temperature from -25°C to 70°C to ensure IGT-20 series continues to function under harsh industrial conditions. IGT-20 series has I/Os that are applicable to a range of industrial grade sensors. It features one USB2.0, one 10/100M LAN, COM ports and an optional CAN bus port (IGT-21 only). In addition to the ports mentioned, there are built-in isolated digital input channels that accept discrete signals from various sensors, buttons or switches. There are also built-in isolated digital output channels to control actuators and indicators. Communication wise, IGT-20 series has a mini PCIe slot and an external USIM holder allowing it to transmit acquired data and system status via 3G, 4G or WiFi (mini PCIe WiFi module). There is an opening on top of IGT-20 series for users to mount the SMA connector of the wireless module. In terms of storage, IGT-20 series has dual microSDHC slots, one internal and one external. This design allows users to separate system/ user data and can expedite in OS deployment for mass production. IGT-20 series also provides six LED indicators and two function buttons that can be programmed by users. The function buttons can act as controls for IGT-20 series and exclude the need for external input devices, such as keyboard/ mouse.
IGT-20 User Manual
(Size: 1.7 MB)
IGT-20 Data Sheet
(Size: 354.8 KB)
Specifications
ProcessorTI Sitara AM3352 1GHz Processor
Memory1GB DDR3L SDRAM
DIO4-CH isolated DI and 4-CH isolated DO
Mini PCI-E1x full-size mPCIe with SIM holder, USB 2.0 only
DC Input1x DC-input connector
Dimension1x full-size mPCIe with SIM holder, USB 2.0 only
Weight0.4 Kg
MountingDIN-Rail Mounting
Operating Temperature-25°C ~ 70°C
Vibration5 Grms
EMCCE/FCC Class A, according to EN 55032
ManufacturerNeousys
