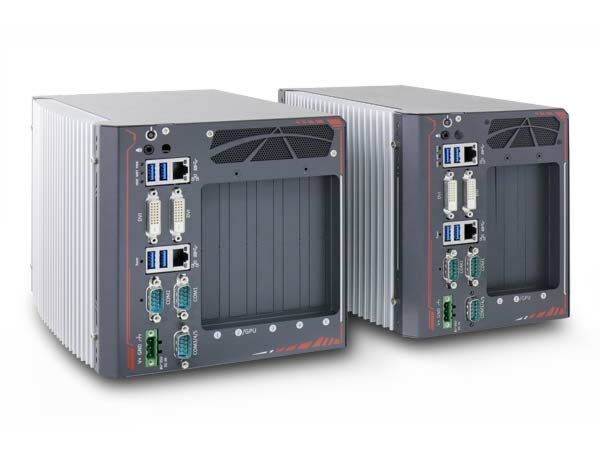

Nuvo-8000 Series Intel 9th/8th-Gen Core Box-PC with up to 5 PCIe/ PCI Slots
Nuvo-8000Starting at $1,130.00
Main Features
- Supports Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3, Pentium® and Celeron® LGA1151 CPU
- Up to five expansion slots, a mixed combination of x16 PCIe, x4 PCIe, and PCI slots
- Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
- 2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
- Dual DVI display outputs
- Up to 2x 2.5" SATA HDD/ SSD accommodation and 1x mSATA socket
- Wall-mounting and rack-mounting available
Frequently Asked Questions
The Nuvo-8000 series provides the following I/O:
- 2x Gigabit Ethernet ports (1x Intel® I219-LM, 1x Intel® I210-IT)
- 2x DVI-D connectors, each supporting up to 1920x1200 resolution
- 4x USB 3.1 Gen1 (5 Gbps) ports
- 1x internal USB 2.0 port with Type-A connector and 2x internal USB 2.0 ports with 2x8 pin box headers
- 5x COM ports: COM1 (RS-232/422/485, software-programmable), COM2 (RS-422/485, software-programmable), and COM3/COM4/COM5 (3-wire RS-232)
- 1x 3.5 mm audio jack for mic-in and speaker-out
The Nuvo-8000 accepts 8~35VDC input through a 3-pin pluggable terminal block.
The Nuvo-8000 operates from -25°C to 60°C and can be stored from -40°C to 85°C. Humidity tolerance is 10%~90%, non-condensing. It is rated for operating vibration per MIL-STD-810G Method 514.6 Category 4, and operating shock per MIL-STD-810G Method 516.6, Procedure I, Table 516.6-II. It carries CE/FCC Class A EMC certification according to EN55032 & EN55035.
The system supports up to 32 GB of DDR4 2666 SDRAM in one SODIMM slot. For storage, it has 2x internal SATA ports for 2.5" HDD/SSD installation and 1x full-size mSATA socket (muxed with USB 2.0 signals).
The Nuvo-8000 series supports Intel® 9th/8th-Gen Core™ CPUs in the LGA1151 socket, including Core™ i7-9700TE/i7-8700*/i7-8700T, Core™ i5-9500TE/i5-8500*/i5-8500T, Core™ i3-9100TE/i3-8100*/i3-8100T, Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP), and Celeron® G4900T (2M Cache, 2.9GHz, 35W TDP). Note: due to thermal limitations, 65W CPUs are configured to operate in 35W mode by default.
The four models differ in expansion slot configuration:
- Nuvo-8003: 3x PCIe expansion slots (1x PCIe x16, 1x PCIe x8, 1x PCIe x4), no PCI slots
- Nuvo-8023: 3x PCIe (1x x16, 2x x4) and 2x PCI slots
- Nuvo-8032: 2x PCIe (1x x16, 1x x8) and 3x PCI slots
- Nuvo-8041: 1x PCIe (x16) and 4x PCI slots
The Nuvo-8003 has a smaller chassis (154 mm W) while the Nuvo-8023/8032/8041 share a larger chassis (185 mm W); both are 235 mm (D) x 174 mm (H). The Nuvo-8003 weighs 3 Kg and the others weigh 3.6 Kg.
Wall-mounting is standard. DIN-rail mounting and rack-mounting are available as optional configurations.
Yes. In addition to the integrated Intel® UHD Graphics 630, the system can support an independent 125W NVIDIA® GPU installed via the x16 PEG port.
How-to Guides
- Confirm your power source is within the supported 8~35VDC input range.
- Connect the power leads to the 3-pin pluggable terminal block located on the front panel.
- Optionally, use one of the listed AC/DC power adapters (PA-120W-OW, PA-160W-OW, or PA-280W-ET2) with cord-end terminals designed for the terminal block.
- For standard installation, use the wall-mount configuration the unit ships with.
- For DIN-rail installation, use the optional DIN-Rail mounting kit.
- For rack installation, use the optional Rmkit-Nuvo6000 rack mounting assembly (compatible with Nuvo-6000/8000 series).
- Install up to two 2.5" SATA HDD/SSD drives using the two internal SATA ports.
- Optionally install a storage device in the full-size mSATA socket, noting that it is muxed with USB 2.0 signals.
Nuvo-8000 series systems are cost-effective box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.
There are four models in the Nuvo-8000 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, Nuvo-8000 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.
Nuvo-8000 series systems are designed with satisfying industrial demands in mind. Retaining traditional IPC expansion capabilities and fulfilling diverse application requirements in an extremely compact form-factor with industrial-grade reliability.
| Manufacturer | Neousys |
|---|---|
| Processor | Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-9700TE/ i7-8700*/ i7-8700T
- Intel® Core™ i5-9500TE/ i5-8500*/ i5-8500T
- Intel® Core™ i3-9100TE/ i3-8100*/ i3-8100T
- Intel® Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP)
- Intel® Celeron® G4900T (2M Cache, 2.9GhHz, 35W TDP) |
| Graphics | Integrated Intel® UHD Graphics 630, or independent 125W GPU via x16 PEG port |
| Memory | Up to 32 GB DDR4 2666 SDRAM (one SODIMM slot) |
| Chipset | Intel® H310 platform controller hub |
| Video Port | 2x DVI-D connectors, each supporting 1920x1200 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| SATA HDD | 2x internal SATA ports for 2.5” HDD/ SSD installation |
| mSATA | 1x full-size mSATA port |
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC DC input |
| Dimension | Nuvo-8003 154 mm (W) x 235mm (D) x 174 mm (H) Nuvo-8023, Nuvo-8032, Nuvo-8041 185 mm (W) x 235 mm (D) x 174 mm (H) |
| Weight | 3 Kg & 3.6 Kg |
| Mounting | Wall-mount (standard) DIN-Rail mounting (optional) Rack-mount (optional) |
| Operating Temperature | -25 C ~ 60 C |
| Storage Temperature | -40 C ~ 85 C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN55032 & EN55035 |
| Base CPU Speed | Under 2.0 Ghz, 2.1 to 3.0 GHz, 3.1 to 3.5 GHz |
| Video Output | DVI-D |
| Serial Ports | 1-2, 3-4 |
| USB 2.0 | 1-2, 3-4 |
| USB 3.1 | 1-4 |
| Max Memory | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
