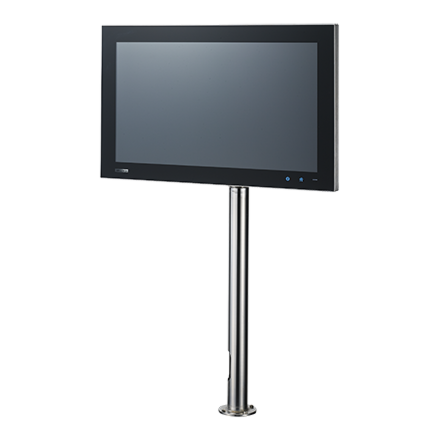

Advantech 21.5" Full HD TFT LED LCD Industrial Multi-Touch Panel PC

IPPC-5211

Starting at $3,000.00

Main Features:

  • Stainless steel chassis with IP69K waterproof rating
  • The detachable product portfolio with accessories for various applications
  • Intel Celeron Processor J1900
  • Operating temperature : 0 ~ 50
  • 21.5" Full HD TFT LED LCD display
  • 16:9 widescreen with PCT multi-touch
  • Supports iDoor or antenna
  • Built-in function and home key button used for intuitive UI
  • Fully flat glass front panel with 7H hardness
  • Supports 4 GB DDR3L SO-DIMM
  • Fanless cooling system
  • Front LED indicator to show operating status
  • Supports Advantech SNMP subagent



PDF Document - IPPC-5211WS-J3AE Datasheet
IPPC-5211WS-J3AE Datasheet
(Size: 629.3 KB)

System Configuration


* Selection required

IPPC-5211WS-J3AE
Your Configuration
IPPC-5211 Advantech 21.5" Full HD TFT LED LCD Industrial Multi-Touch Panel PC
Advantech 21.5" Full HD TFT LED LCD Industrial Multi-Touch Panel PC

In stock

Add to Favorites

$3,000.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Specifications
ManufacturerAdvantech
ProcessorIntel® Celeron® J1900 2 GHz Processor
SATA2.5" SATA
VibrationWith HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
CPU FamilyIntel Celeron
Base CPU SpeedUnder 2.0 Ghz
Brightness300-399 nit
Resolution1920 x 1080
Screen Size20" and up
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.01-2
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed1600 MHz
Form FactorPanel PC
MountingVESA and flange adapter for arm and foot system
Memory4 GB DDR3L SO-DIMM, up to 8GB
Humidity10 ~ 95% RH @ 40° C, non-condensing
Operating Temperature0 ~ 50° C (32 ~ 122° F)
Storage Temperature-20 ~ 60° C (-4 ~ 140° F)
EMCIP69k, CE, FCC Class A, UL, CCC, BSMI
Weight15.8 kg
Dimension555mm x 346.5mm x 81mm (21.85" x 13.64" x 3.19")
