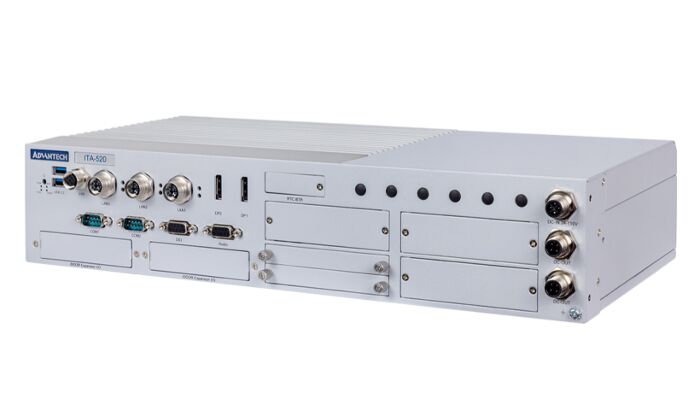

ITA-520: Railway Certified 11th Gen Intel Core H-Series Fanless Computer
ITA-520 Series- 11th Gen Intel Core H-Series platform with RM590E
- SuperCap-based power backup module for power failure
- Featured Time-Sensitive Network technology
- Virtualization ability for multi tasks acceptable
- Support advanced 5G and Wi-Fi 6 wireless connectivity
- LAN bypass for redundant connectivity to communicate with other devices
- Compliant with EN 50155 OT4
- Wide range 24 - 110Vdc power input, compliant with EN 50155
- Support variety of communication modules by iDoor technology
- No RED certification
Frequently Asked Questions
The ITA-520 provides the following I/O:
- 4 x USB 3.2 Type-A connectors
- 1 x USB 2.0, M12 A-Coded (F)
- 2 x DB9 serial ports, RS-232/422/485 with 2KV isolation, supporting auto-flow control
- 1 x DB9 DIO port (4-bit DI / 4-bit DO) with 2KV isolation
- 2 x DisplayPort (max resolution 4096 x 2304 at 60 Hz)
- 1 x DB9 audio port, 1 x Line-out, 1 x Mic-in
- 3 x M12 X-Coded (F) Ethernet ports (LAN#2/3 support bypass as optional)
The ITA-520 accepts a wide-range 24 - 110VDC power input, compliant with EN 50155, via a 1 x M12 S-coded (M) 4-pin connector. It also provides a 24VDC power output through 2 x M12 A-coded (M) 4-pin connectors.
Operating temperature is -40 ~ 70 °C (with industrial SSD); non-operating temperature is -40 ~ 85 °C. Humidity range is 5% ~ 95% @ 40 °C (non-condensing).
The unit is compliant with EN 50155:2021 OT4, EN 50121-3-2 (EMC), EN 45545-2:2020 HL3 (fire protection), and IEC 61373 body mount class B (shock and vibration). It also carries CE/FCC Class A, CCC (EMC) and UL, CB, CCC, BSMI (safety) certifications. Ingress protection is rated IP40. Note: no RED certification.
Memory: 1 x SO-DIMM slot, dual channel DDR4 3200 MHz, non-ECC, with on-board RAM of 16GB (i7 model) or 8GB (i5 model), expandable up to 32GB max.
Storage: 2 x 2.5" 7mm SSD easy-swap trays supporting RAID 0/1/5/10 (up to 4 x 2.5" 7mm SSD as optional), 1 x mSATA slot, 2 x Mini PCIe sockets (full size), 2 x M.2 3042/3052 B+M Key slots, and 1 x M.2 2230 A+E Key slot.
The ITA-520 supports Windows 10, Windows 11, and Linux.
Dimensions are 427 x 88 x 198.7 mm (16.81 x 3.46 x 7.82 inch), or 482.6 x 88 x 224.3 mm (19 x 3.46 x 8.83 inch) with the mounting kit. The unit is designed for rack-mounting installation.
The ITA-520 supports advanced 5G and Wi-Fi 6 wireless connectivity, along with GPS, MVB, and CANBus, through Advantech iDoor technology communication modules. It also includes 4 x micro SIM slots, with each M.2 slot supporting dual micro SIM cards. Note: no RED certification.
The ITA-520-W7A1 uses an i7-11850HE processor with 16GB onboard RAM, while the ITA-520-W5A1 uses an i5-11500HE processor with 8GB onboard RAM. Both SKUs share the same I/O, storage, and connectivity configuration, including 3 x LAN M12 X-Coded ports, TSN support, 1 x USB2.0 M12, 4 x USB 3.2 ports, 2 x COM ports, 2 x mPCIe/M.2 SSD slot combos, 1 x mSATA slot, 2 x DP ports, 4DI/4DO digital I/O, and 24-110VDC power input.
Yes, the ITA-520 includes a watchdog timer with a programmable interval of 1~255 sec/min, and its output can trigger a system reset.
| Product Available On | May 31, 2030 |
|---|---|
| Manufacturer | Advantech |
| Short Description | ITA-520 is a compact and fanless 11th Gen Intel Core H-Series platform for railway applications. |
