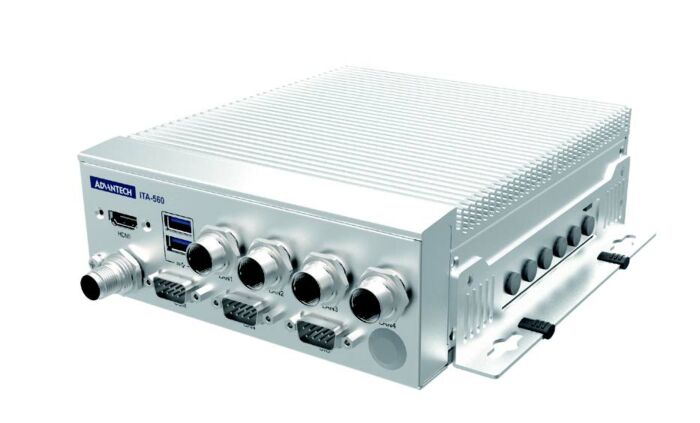

ITA-560NX: Railway Certified Jetson Orin NX Rugged Computer
ITA-560NXStarting at $2,995.00
- Fanless box computer designed for AI inference
- Embedded NVIDIA Jetson Orin NX platform
- Compliant with EN 50155 OT 1 and EN 5021-3-2 EMC standards
- Rugged M12 connectors suitable for harsh, industrial environments
- 1x mPCIe. 1x M.2 E-key. 1x M.2 M-key, 1x M.2 B-key for easy expansion
- Bundled with Linux Ubuntu 20.04
Frequently Asked Questions
The ITA-560NX provides the following external I/O:
- 1 x HDMI display output
- 1 x CAN port (DB9)
- 2 x USB 3.0 Type A
- 1 x RS-232/RS-422/RS-485 serial port (DB9)
- 1 x 8-bit DI/O (4 in / 4 out, DB9)
- 4 x M12 (X-coded) Gigabit Ethernet ports (Intel I210-IT controller, 10/100/1000 Mbps)
Internally there is also a Micro USB (OTG) pin header and an optional internal RS-232/RS-422/RS-485 serial port. All external connectors are rugged M12 type, suited to harsh industrial environments.
The ITA-560NX is powered by DC input and is available in two voltage variants: 24V DC (part number ITA-560NX-LOA1) and 110V DC (part number ITA-560NX-SOA1). Power connects via a 1 x M12 (S-coded) connector.
Operating temperature is -25 ~ 55 °C (-13 ~ 131 °F), and storage temperature is -40 ~ 85 °C (-40 ~ 185 °F). Humidity range is 5% ~ 95% at 40 °C (non-condensing).
The unit is compliant with EN 50155 OT1 (railway equipment) and EN 50121-3-2 (EMC for railway applications). It also carries EMC and Safety certifications: CE, FCC, BSMI, CCC. Additional EN 50155 compliance includes IEC 61373 body mount class B shock/vibration, Class S2 voltage interruptions, and Class C1 supply change over.
Memory: up to 16 GB 128-bit LPDDR5 (102.4 GB/s).
Expansion slots:
- 1 x Mini PCIe slot
- 1 x M.2 (M-key) 2280 for storage
- 1 x M.2 (B-key) 3052 for 5G/LTE
- 1 x M.2 (E-key) 2230 for Wi-Fi/Bluetooth
- 1 x Nano SIM card slot
Optional expansion modules listed by the manufacturer include a 128 GB M.2 2230 SSD module (SQF-C3AV1-128G-EDE), 5G M.2 3052 modules (AIW-355DQ series), Wi-Fi/BT M.2 2230 modules (AIW-152BQ-001, EWM-W158F01E), and an isolated digital I/O module (PCM-27D24DI-AE, requires a specific chassis).
The ITA-560NX is bundled with Linux Ubuntu 20.04.
Dimensions (W x H x D) are 190 x 60 x 160 mm (7.48 x 2.36 x 6.29 in). The listed mount option is wall mount.
Yes. The unit includes an M.2 (B-key) 3052 slot for 5G/LTE and an M.2 (E-key) 2230 slot for Wi-Fi/Bluetooth, along with a Nano SIM card slot and 6 antenna connections. Optional 5G modules (Qualcomm SDX55-based, EU/China/US variants) and Wi-Fi/BT modules are available separately.
Both models use the Jetson Orin NX processor with the same I/O configuration (4 x GbE, 2 x USB 3.1 Type A, Mini PCIe, CAN, COM, DI/O, HDMI, and M.2 M/E/B-key slots). The difference is the DC input voltage: the LOA1 model is 24V DC and the SOA1 model is 110V DC.
How-to Guides
- Use the M.2 (M-key) 2280 slot for a storage SSD, such as the optional SQF-C3AV1-128G-EDE 128 GB module.
- Use the M.2 (B-key) 3052 slot for a 5G/LTE module, such as the optional AIW-355DQ series modules, and insert a Nano SIM card into the Nano SIM slot for cellular service.
- Use the M.2 (E-key) 2230 slot for a Wi-Fi/Bluetooth module, such as the optional AIW-152BQ-001 or EWM-W158F01E modules.
- Use the Mini PCIe slot for additional expansion, such as the optional isolated digital I/O module (PCM-27D24DI-AE), noting that this module requires a specific chassis.
- Connect DC power to the unit's 1 x M12 (S-coded) power connector using the optional external cable FRU-ITA5831-0002 (Power to M12), matching the unit's rated voltage (24V DC for ITA-560NX-LOA1 or 110V DC for ITA-560NX-SOA1).
- Connect Ethernet using the optional external cable FRU-ARS2600-0001 (RJ45 to M12) to one of the 4 x M12 (X-coded) Gigabit Ethernet ports.
- If building custom cabling, use the external connector parts Y5A5231004 (PWR S-coded) and Y5D5231005 (LAN X-coded) as references for the connector types required.
| Manufacturer | Advantech |
|---|---|
| Short Description | AI Inference Box Computer Powered by NVIDIA Jetson Orin NX for Railway Applications |
