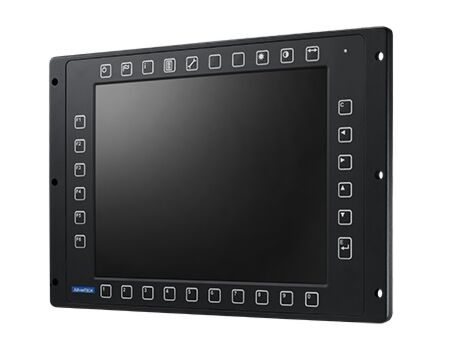

ITA-8120: Railway Certified 12.1" Fanless Touch Panel PC with Intel Atom x7-E3950 Processor
ITA-8120 SeriesStarting at $3,950.00
- Intel Atom x7-E3950 quad-core processor
- 12.1" LCD panel (600 nits) with 1024 x 768 resolution
- EN 50155 temperature class OT4+ST1: -40 ~ 70 °C/-40 ~ 158 °F
(85 °C/185 °F for 10 minutes) - EN 50155 power input range: 24/48/72/110 VDC (±40%)
- Fanless design for minimal maintenance
- Anti-shock and vibration tolerance
- IP65-rated front panel
- UIC 612-01 keypad layout
- Optional Expansion - MVB, CAN and GSM-R
- No RED Certification
Frequently Asked Questions
The ITA-8120 provides the following I/O, all via M12 connectors:
- 2 x 10/100/1000 Base-T Ethernet (Intel I210, M12 X-coded 8 pin)
- 1 x USB 2.0 (M12 A-coded 4 pin)
- 2 x RS-422/485 serial (M12 A-coded 5 pin)
- Audio line-out and mic-in, isolated (M12 A-coded 5 pin)
- Digital I/O: 5-channel input / 1-channel output, isolated (M12 A-coded 8 pin)
The ITA-8120 accepts 24/48/72/110 V DC (±40%) power, connected via an M12 A-coded 4 pin (male) connector.
The ITA-8120 operates from -40 to 70 °C (-40 to 158 °F), with tolerance up to 85 °C (185 °F) for 10 minutes, meeting EN 50155 temperature class OT4+ST1. Storage temperature range is -40 to 85 °C (-40 to 185 °F).
Certifications include EN 50155:2017, EN 50121-3-2, EN 50121-4, IEC 60571, EN 45545-2 (railway), IEC 61373 (shock/vibration), IP65-rated front panel, and CE/FCC Class A, UL 62368 (EMC/safety). Note: no RED certification.
The ITA-8120 supports 1 x DDR3L SODIMM, default 4GB and expandable up to 8GB. Storage is provided by 1 x M.2 2242 SSD slot, default 64GB.
The ITA-8120 supports Windows 10 and Linux.
The ITA-8120 measures 350 x 260 x 71.5 mm (13.8 x 10.2 x 2.8 in) and weighs 5 kg (11 lb). It has an aluminum/iron enclosure.
The ITA-8120 has a 12.1" TFT LCD panel with 1024 x 768 (XGA) resolution, 600 nits brightness, and 1000:1 contrast ratio. It uses a projected capacitive multi-touch touchscreen with automatic brightness adjustment via a built-in light sensor. It also includes 32 function keypads compliant with the UIC 612-01 layout.
The ITA-8120 supports optional expansion modules for MVB, CAN, and GSM-R. An optional expansion kit (ITA8-3SMA-01) can provide additional connections for GPS, WiFi, LTE, or GSM-R. Contact the manufacturer for more details on these expansion options. Note that the base unit has no RED certification.
The ITA-8120 series includes four part numbers that differ by input voltage and function key count:
ITA-8120-L00A1: 24-48V DC, 32 function keysITA-8120-L01A1: 24-48V DC, 1 function keyITA-8120-S00A1: 72-110V DC, 32 function keysITA-8120-S01A1: 72-110V DC, 1 function key
All four share the same Intel Atom x7-E3950 processor, 600 nits brightness, auto dimming, 4GB DDR3L RAM, and 64GB M.2 SSD.
How-to Guides
- Use the optional ITA8-CBLE-01 cable kit, which includes a power cable from M12 A-coded 4 pin (female) to Y-type terminals (50cm).
- Connect the terminal ends to a 24/48/72/110 V DC (±40%) power source, matching the voltage rating of your specific ITA-8120 SKU (24-48V or 72-110V).
- Connect the M12 A-coded 4 pin end to the unit's power connector.
- Use the ITA8-CBLE-01 cable kit for standard peripheral connections.
- For serial/COM devices, use the 2 x M12 A-coded 5 pin (male) to D-sub 9 pin (male) cables (20cm each).
- For LAN, use the 2 x M12 X-coded 8 pin (male) to RJ45 (female) cables (100cm each).
- For USB, use the M12 A-coded 4 pin (male) to USB Type-A (female) cable (50cm).
- Order the ITA8-2DB9-01 expansion kit for extra COM, CAN, DIO, or MVB connections.
- Order the ITA8-3SMA-01 expansion kit for extra GPS, WiFi, LTE, or GSM-R connections.
- Contact Advantech/CoastIPC for detailed installation information on these expansion kits before ordering or installing.
| Manufacturer | Advantech |
|---|---|
| Short Description | Advantech’s ITA-8120 touch panel PC is a fanless human machine interface (HMI) aimed at railway applications. ITA-8120 features a 12.1" display with a projective capacitive touchscreen. |
