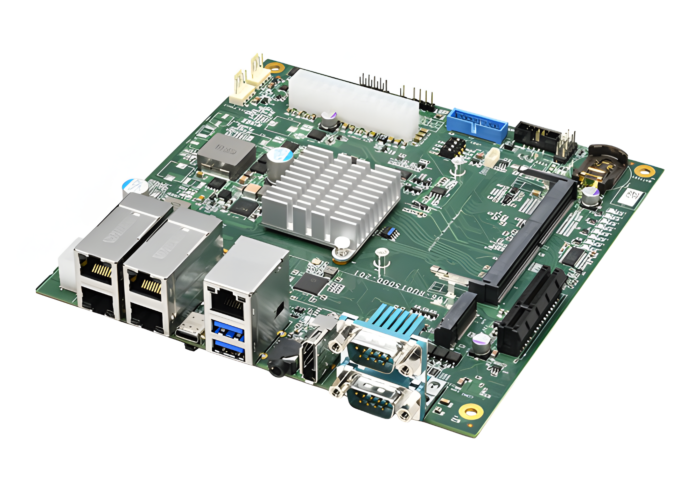

Jemii-150 Series: Mini-ITX Jetson carrier, compatible with NVIDIA Jetpack releases, 4x PoE++ GbE, 1x GbE, and PCIe
Jemii-150 SeriesThe Jemii-150 Series is designed to reduce the integration barrier for industrial NVIDIA Jetson deployments significantly. By combining
a Mini-ITX form factor with NVIDIA Jetson Orin Nano DevKit compatibility, the platform enables a streamlined transition from development to
field deployment on a unified hardware and software baseline, eliminating the need for custom BSP development, hardware redesign, or rugged
embedded systems expertise.
- Mini-ITX form factor
- Powered by all Jetson Orin NX and Orin Nano modules (Super Mode-enabled)
- Flash-ready and BSP-aligned with Orin Nano Dev Kit
- Support 4x GbE powered by Intel I350-AM4 with PoE++ and 1x GbE
- 1x PCIe Gen3 x4 expansion slot
Frequently Asked Questions
The Jemii-150 provides 5 Gigabit Ethernet ports total: 4x GbE powered by an Intel® I350-AM4 controller and 1x GbE from the NVIDIA Jetson Orin™ NX/Nano module. The 4x I350-AM4 ports support optional PoE++ (IEEE 802.3bt Type 3 and Type 4 PSE), with up to 90W on a single port and a shared total budget of 100W across the PoE ports. The PoE ports are also compatible with 802.3at (PoE+) and 802.3af (PoE) powered devices.
Power input depends on the specific SKU:
- Jemii-150D-PoE: 9V to 32V DC input via terminal block
- Jemii-150A-PoE: ATX power plus a PCIe 6-pin connector
- Jemii-150A: ATX power
The Jemii-150 operates from -25°C to 70°C and has a storage temperature range of -40°C to 85°C. It is CE/FCC Class A certified according to EN 55032 and EN 55035.
The board includes 1x M.2 M-key 2280 slot (PCIe Gen4 x1, though note the Jetson Orin Nano module restricts this interface to Gen3 due to its power budget) and 1x PCIe Gen3 x4 expansion slot for adding functions such as additional Ethernet, USB 3.0, PoE, or DIO cards.
The Jemii-150 provides 2x USB 3.2 Gen1 ports and 1x USB Type-C OTG port on the panel, plus 2x internal USB 3.2 Gen1 ports on a 2.0mm 2x10 pin header. Video output is via 1x DisplayPort supporting 3840x2160 at 60Hz. Audio is provided through a single 3.5mm jack for mic-in and speaker-out.
Yes. It includes 3x isolated digital inputs and 3x isolated digital outputs (DIO), plus 1x hardware-configurable RS-232/422/485 serial port. An additional internal RS-232 port (2.54mm box header) is available on the Jemii-150A-PoE and Jemii-150D-PoE variants only.
CAN bus 2.0 support (via a 2.54mm pin header) is only available on the Jemii-150D-PoE variant. It is not present on the Jemii-150A or Jemii-150A-PoE.
The Jemii-150 uses a Mini-ITX form factor with dimensions of 6.7" x 6.7" (170mm x 170mm) and weighs 200g.
The Jemii-150 is powered by NVIDIA Jetson Orin NX and Orin Nano modules (Super Mode-enabled) and is 100% BSP-compatible with the NVIDIA Jetson Orin™ Nano DevKit. It supports direct flashing via NVIDIA SDK Manager across all JetPack releases, allowing software from the DevKit to be carried over without custom BSP development.
The three variants differ as follows:
- Jemii-150A: ATX power only, 5x GbE (no PoE), Allxon OOB remote management supported, no CAN or internal RS-232 header
- Jemii-150A-PoE: ATX power + PCIe 6-pin connector, 4x PoE++ ports (100W total), Allxon OOB supported, includes internal RS-232 header, no CAN
- Jemii-150D-PoE: 9-32V DC terminal block input, 4x PoE++ ports (100W total), adds CAN 2.0 support and internal RS-232 header, but does not support Allxon OOB
How-to Guides
- Confirm the Jemii-150 is populated with a compatible NVIDIA Jetson Orin™ NX or Orin Nano module.
- Since the Jemii-150 is 100% BSP-compatible with the NVIDIA Jetson Orin™ Nano DevKit, connect the board to a host PC as you would the DevKit.
- Launch NVIDIA SDK Manager on the host PC and select the desired JetPack release.
- Proceed with flashing directly, as no custom BSP development is required for this platform.
- Identify your specific SKU: Jemii-150D-PoE, Jemii-150A-PoE, or Jemii-150A.
- For the Jemii-150D-PoE, connect a 9V to 32V DC power source to the DC terminal block.
- For the Jemii-150A-PoE, connect a standard ATX power supply and additionally connect the PCIe 6-pin power connector.
- For the Jemii-150A, connect a standard ATX power supply only.
- Verify the ATX/AT Mode Select jumper is set appropriately for your power configuration before powering on.
- Locate the M.2 M-key 2280 slot (PCIe Gen4 x1) for SSD installation, noting that when paired with a Jetson Orin Nano module the interface is limited to PCIe Gen3 due to the module's power budget.
- Insert the M.2 M-key SSD into the slot and secure it per standard M.2 mounting practice.
- For additional expansion (e.g. Ethernet, USB 3.0, PoE, or DIO functions), use the onboard PCIe Gen3 x4 slot to install a compatible add-in card.
The Jemii-150 Series is designed to reduce the integration barrier for industrial NVIDIA Jetson deployments significantly. By combining
a Mini-ITX form factor with NVIDIA Jetson Orin Nano DevKit compatibility, the platform enables a streamlined transition from development to
field deployment on a unified hardware and software baseline, eliminating the need for custom BSP development, hardware redesign, or rugged
embedded systems expertise.
Jemii-150 is 100% BSP-compatible with the NVIDIA Jetson Orin Nano DevKit, supporting direct flashing via NVIDIA SDK Manager across all JetPack
releases. This ensures software portability, minimizes migration effort, and reduces time-to-market risk associated with platform transitions. The
Mini-ITX form factor further leverages a mature ecosystem of standard chassis, thermal solutions, and power supplies, simplifying mechanical
integration and system redesign.
Engineered for industrial edge AI applications, Jemii-150 operates over a wide temperature range of -25°C to 70°C and accepts either 9–32 V DC
or standard ATX power input. Its I/O includes 5× GbE LAN featuring optional PoE++ support with a shared 100W total budget, 3× isolated DI and
3x isolated DO, and hardware-configurable RS-232/422/485 serial interfaces. The platform also provides a PCIe expansion slot for system function
extension such as Ethernet, USB 3.0, PoE, or DIO.
The product line comprises of three variants: Jemii-150A and Jemii-150A-PoE, which integrate Allxon out-of-band (OOB) remote management for
retail and intelligent transport system (ITS) applications, while Jemii-150D-PoE adds CAN 2.0 support for indoor AMR and autonomous logistics.
Purpose-built for indoor IVA and AMR applications, the Jemii-150 Series is a deployment-ready edge AI platform backed by Neousys’
commitment to industrial product longevity and lifecycle stability.
| Product Available On | Sep 30, 2026 |
|---|---|
| Manufacturer | Neousys |
| Short Description | The Jemii-150 Series is designed to reduce the integration barrier for industrial NVIDIA Jetson deployments significantly. By combining |
| Processor | NVIDIA Jetson Orin NX system-on module (SOM), comprising NVIDIA Ampere GPU and ARM Cortex CPU |
| Memory | 16GB/ 8GB LPDDR5 @ 3200 MHz on SOM |
| PoE | In compliance with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximum 90W output on single PoE++ port (total 100W max.), compatible with 802.3at (PoE+) and 802.3af (PoE) PD |
| Video Port | 1x DisplayPort, supporting 3840x2160 at 60Hz |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 3x isolated DI+3x isolated DO |
| PCI Express | 1x PCIe Gen3 x4 slot |
| M.2 | 1x M.2 M 2280 key (PCIe Gen4 x1) |
| DC Input | Jemii-150D-PoE: 9V to 32V DC input |
| Fan | 2x Fan connector (2.54mm Wafer) |
| Dimension | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| Weight | 200g |
| Input Connector | 1x Front Panel Connector |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
