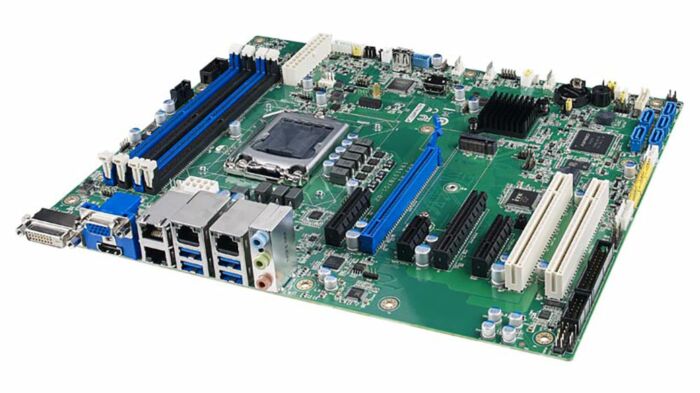

LGA 1200 Intel® Xeon® W 10th Gen. Core™ ATX Server Board with 4 x DDR4, 5 x PCIe, 2 x PCI, 4 x USB 3.2, 5 x SATA 3, Quad/Dual LANs, and IPMI
ASMB-787Starting at $600.00
Main Features
- LGA 1200 Intel® Xeon® W & 10th Gen. Core™ i9/i7/i5/i3 processors with W480E chipset
- DDR4 2933/2666/2400 MHz ECC/Non-ECC UDIMM up to 128 GB
-
One PCIe x16 link (or two x8 link), two PCIe x4, and one PCIe x1 slots
- Triple displays - DVI-D, VGA, and HDMI 2.0 ports
- Five SATA 3 ports and four x USB 3.2 ports
- One M.2 2280/2242 (SATA / PCIe compatible)
- Rackmount optimized placement with positive air flow design
- 0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range
Note: Supported OS including Windows 10 (64-bit) and Server 2019 (64-bit) have been validated.
Frequently Asked Questions
The ASMB-787 uses an Intel® LGA 1200 socket and supports Intel® Xeon® W-1270x/W-1290x processors as well as 10th Generation Core™ i3/i5/i7/i9 series processors (TDP up to 125W). The core logic chipset is Intel W480E.
The board has 4 DDR4 DIMM slots (dual channel) supporting DDR4 ECC/Non-ECC UDIMM at 2933/2666/2400 MHz, up to a maximum of 128 GB total. Supported module sizes are 4 GB, 8 GB, 16 GB, and 32 GB. Note that ECC is not supported when paired with Core i5/i7/i9 processors.
There are 7 total PCI/PCIe slots: 2 x PCI, 1 x PCIe x16 (Gen3 x8 or x16 link), 2 x PCIe x4 (Gen3 x4 link), 1 x PCIe x8 (Gen3 x8 link), and 1 x PCIe x1.
The board provides 5 x SATA 3 (6 Gb/s) ports via the Intel W480E chipset with Intel Rapid Storage Technology support (Windows only), supporting software RAID 0, 1, 10 and 5. There is also 1 x M.2 2280/2242 connector supporting PCIe or SATA SSDs.
The board supports triple displays via DVI-D, VGA, and HDMI 2.0 ports. VGA and DVI-D support resolutions up to 1920 x 1200 @ 60 Hz, and HDMI supports up to 4096 x 2160 @ 60 Hz.
The board provides 4 x USB 3.2 ports total. Rear I/O includes 4 x external USB 3.2 Gen 2 ports. Onboard connectors include 1 x USB 3.2 Gen 1 (2 ports), 3 x USB 2.0 headers (6 ports), and 1 x USB Type-A.
The G2 version has 2 x RJ-45 GbE LAN ports and the G4 version has 4 x RJ-45 GbE LAN ports. LAN1 uses an Intel I219 controller; LAN2~4 use Intel I210-AT controllers. Interface speed is 10/100/1000 Mbps.
The operating temperature range is 0 ~ 60 °C (32 ~ 140 °F), depending on CPU speed and cooler solution. Non-operating temperature range is -40 ~ 85 °C. Operating humidity is rated at 40 °C @ 95% RH non-condensing, and non-operating humidity at 60 °C @ 95% RH non-condensing.
Supported OSes include Windows 10 (64-bit) and Windows Server 2019 (64-bit), which have been validated by Advantech.
The ASMB-787 is an ATX form factor board with dimensions of 304.8 x 244 mm (12 x 9.6 in).
Both SKUs use the W480E chipset, DDR4 Non-ECC/ECC UDIMM memory, and VGA + DVI-D + HDMI display outputs, with 5 SATA III ports. The ASMB-787G2 has 2 x RJ-45 LAN ports and no IPMI. The ASMB-787G4 has 4 x RJ-45 LAN ports and includes IPMI support.
How-to Guides
- Locate the onboard M.2 connector, which supports M.2 2280/2242 form factors and is compatible with SATA or PCIe SSDs.
- Insert the M.2 module into the connector at an angle, matching the correct 2280 or 2242 mounting position.
- Secure the module with the appropriate screw for the selected form factor length.
- Connect the 24-pin SSI power connector to the board's main power input.
- Connect the 8-pin SSI 12V power connector to supply additional power to the CPU.
- Use the proprietary CPU cooler purchased from Advantech; other brands' CPU coolers may not be compatible with the ASMB-787.
- Identify the 2 x RS-232 serial port headers onboard.
- Use the included COM1 cable (or optional single/quad port RS-232 cable kits) to bring the serial signals to an external bracket.
- Connect your RS-232 serial device to the bracketed port.
| Manufacturer | Advantech | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Short Description | The LGA 1200 with the powerful Intel Xeon 10th-Gen processor is a rugged and versatile ATX server board designed for industrial applications. The versatile LGA 1200 is capable of supporting up to three displays, and has five SATA 3 ports. It’s ideal for many industrial environments, as it is optimized for rackmount placement, providing sufficient airflow throughout the board. This rugged server board is capable of a wide operating temperature of 0~60 °C(32~140° F) | ||||||||||||||||||||||
| CPU Family | Intel Xeon | ||||||||||||||||||||||
| Video Output | DVI-D, VGA, HDMI | ||||||||||||||||||||||
| Serial Ports | 1-2, 3-4 | ||||||||||||||||||||||
| USB 3.2 | 1 - 4 | ||||||||||||||||||||||
| Max Memory | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB | ||||||||||||||||||||||
| Operating System | Windows 7, Windows 10 | ||||||||||||||||||||||
| Effective Memory Speed | 2400 MHz, 2666 MHz, 2933 MHz | ||||||||||||||||||||||
| Native Storage Type | M.2 SATA S80 | ||||||||||||||||||||||
| CPU | Intel® Xeon® W-1270x/W-1290x and 10th Generation Core™ i3/i5/i7/i9 series (TDP up to 125W) | ||||||||||||||||||||||
| Memory |
| ||||||||||||||||||||||
| Storage |
| ||||||||||||||||||||||
| I/O |
| ||||||||||||||||||||||
| Expansion Slots |
| ||||||||||||||||||||||
| Watchdog TImer |
| ||||||||||||||||||||||
| Humidity |
| ||||||||||||||||||||||
| Dimension | 304.8 x 244 mm (12 x 9.6 in) |
