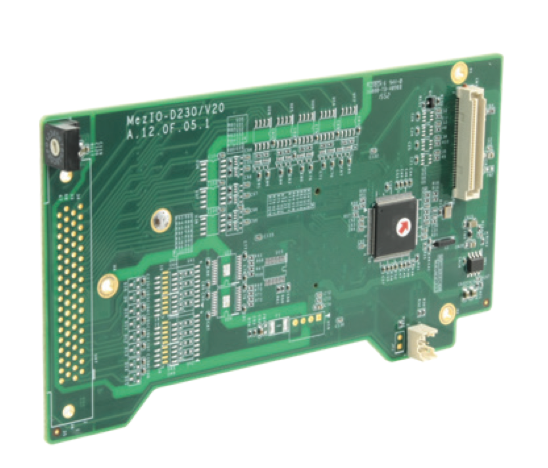

MezIO-V20 Series Ignition Power Control Modules
MezIO-V20 SeriesStarting at $95.00
- Ignition Power Control with 16 predefined on/off delay modes
- Ultra-low 12mA ignition-off standby power
- Advanced ignition control features
- Low battery protection
- Guarded power on/power off delay duration
- System hard off
- BIOS POST check
- Supports 12V DC (small vehicle) and 24V DC (bus/truck) vehicles
Frequently Asked Questions
The MezIO-V20 is an ignition power control module with 16 predefined on/off delay modes. It provides advanced ignition control features including low-battery protection, guarded power-on/power-off delay duration, system hard-off, and BIOS POST check.
The MezIO-V20 supports 12V DC input for small vehicles and 24V DC input for buses/trucks.
The module has an ultra-low ignition-off standby power draw of 12 mA.
Both modules provide 16-mode ignition power control. The MezIO-V20 additionally includes 1x mini-PCIe socket, while the MezIO-V20-EP does not have this expansion socket. The MezIO-V20-EP is intended for use with Nuvo-9000E/P/DE, Nuvo-9160GC, Nuvo-9166GC, Nuvo-7160GC, Nuvo-7164GC, Nuvo-7000E/P/DE, Nuvo-5026E, Nuvo-5000E/P, and Nuvo-5095GC systems. The MezIO-V20 is intended for use with POC-700, POC-500, POC-400, POC-300, Nuvo-9000LP, Nuvo-7000LP, and Nuvo-5000LP systems.
The MezIO-V20-EP variant is compatible with Nuvo-9000E/P/DE, Nuvo-9160GC, Nuvo-9166GC, Nuvo-7160GC, Nuvo-7164GC, Nuvo-7000E/P/DE, Nuvo-5026E, Nuvo-5000E/P, and Nuvo-5095GC. The MezIO-V20 variant is compatible with POC-700, POC-500, POC-400, POC-300, Nuvo-9000LP, Nuvo-7000LP, and Nuvo-5000LP.
The MezIO-V20 (non-EP) variant includes 1x mini-PCIe socket for expansion. The MezIO-V20-EP variant is described only with the 16-mode ignition power control feature and does not list a mini-PCIe socket.
| Manufacturer | Neousys |
|---|---|
| Processor | Intel® Pentium® N4200 1.1/2.5 GHz quad-core processor |
| Graphics | Integrated Intel® HD Graphics 505 |
| Memory | 1x SODIMM socket for DDR3L-1866, up to 8GB |
| PoE | IEEE 802.3at PoE+ on port #2 and #3 |
| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| Audio | 1x speaker-out|1x microphone-in |
| Mini PCI-E | 1x full-size mini PCI Express slot with USIM socket |
| SATA | 1x SATA port for 2.5" SSD/ HDD installation (optional with MezIO-R11) |
| mSATA | 1x half-size mSATA port |
| Dimension | 56mm (W) x 108mm (H) x 153mm (D) |
| Mounting | DIN-rail mount (standard)|Wall-mount (optional) |
| Operating Temperature | -25°C ~ 70°C with SSD, 100% CPU loading|-10°C ~ 50°C with HDD, 100% CPU loading |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022, EN 55024, and EN 55032 |
