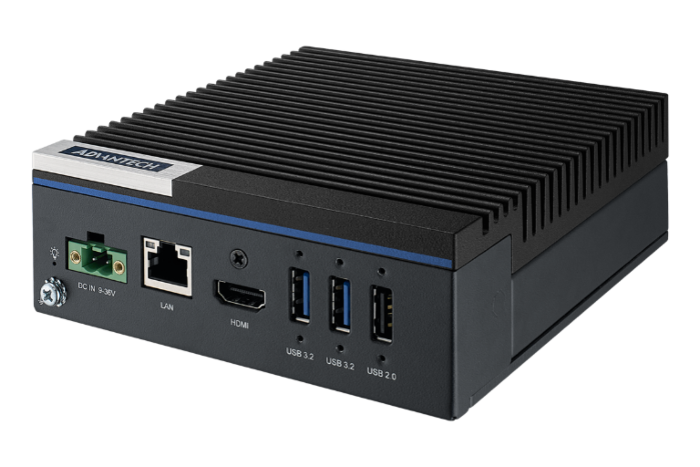

MIC-711-OX AI Inference System Based on NVIDIA Jetson Orin NX
MIC-711-OX SeriesStarting at $1,450.00
- Fanless and ultra-compact design
- Embedded with NVIDIA Jetson Orin NX up to 100 TOPS
- Includes 128GB Standard Temp Commercial NVMe M.2
- Supports 1 x GbE, 2 x USB3.2 Gen1 (5Gbit/s)
- Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
Frequently Asked Questions
The MIC-711-OX provides 1 x Gigabit Ethernet (10/100/1000 Mbps), 1 x HDMI video output (max resolution 3840x2160 @ 60Hz), 2 x USB 3.2 Gen1 and 1 x USB 2.0 externally, plus 1 x USB 2.0 internally via pin header. It also has 1 x Micro USB (OTG) for system recovery, 1 x Micro SD card slot, 1 x mPCIe slot (PCIe + USB 2.0 signal), 1 x M.2 3052 B-Key slot (USB signal), 1 x M.2 2280 M-Key slot (NVMe, PCIe x4), and 2 x Nano SIM slots.
The MIC-711-OX accepts 9 ~ 36 VDC input through a 2-pin terminal block in AT power mode. The unit must be supplied by a UL-certified power supply or DC source rated 9-36 VDC, 6-1.5A minimum, meeting SELV or ES1, suitable for use at a minimum Tmax of 50°C.
The MIC-711-OX operates from -10 to 60 °C with 0.7 m/s air flow, and storage temperature is -40 to 70 °C. Operating humidity is rated at 95% @ 40 °C non-condensing. It carries CB, UL, CE, FCC, BSMI, and CCC certifications. Note: it does not have RED certification, and derating of max operating temperature is possible when using a cellular LTE module.
The MIC-711-OX4A1 comes with a 16GB Jetson Orin NX module (LPDDR5 memory) and the MIC-711-OX3A1 comes with an 8GB Jetson Orin NX module. Both are shipped with a pre-installed 128GB NVMe SSD via the M.2 2280 slot. Additional storage can be added: the M.2 2280 slot supports PCIe x4 NVMe devices, and there is also a Micro SD card slot for removable storage.
The MIC-711-OX ships with a pre-installed system BSP based on NVIDIA JetPack, version 5.1 or above.
The MIC-711-OX measures 130 x 130 x 46 mm (5.1\" x 5.1\" x 1.8\") and weighs approximately 1.2 kg (2.65 lb) per the datasheet (1 kg per the user manual). It is designed for desktop or wall mount installation using the included mounting brackets.
The MIC-711-OX has 2 x Nano SIM slots: SIM1 is paired with the mPCIe slot and SIM2 is paired with the M.2 3052 slot, allowing use of a cellular module installed in either expansion slot. Note the unit has no RED certification, and using a cellular LTE module may require derating the maximum operating temperature.
Both are part of the MIC-711-OX series built on the NVIDIA Jetson Orin NX module. The MIC-711-OX4A1 uses the 16GB Orin NX module (8-core CPU, 2MB L2 + 4MB L3 cache), while the MIC-711-OX3A1 uses the 8GB Orin NX module (6-core CPU, 1.5MB L2 + 4MB L3 cache). Both ship with a pre-installed 128GB NVMe SSD and the same system BSP.
How-to Guides
- Disconnect power from the unit before opening the enclosure.
- Locate the M.2 2280 slot, which supports PCIe x4 NVMe storage devices.
- Insert the M.2 NVMe module into the slot.
- Secure the module using the M.2 screw included in the accessory kit.
- Disconnect power from the unit before opening the enclosure.
- Locate the MiniPCIe slot (signal: PCIe x1 & USB 2.0).
- Insert the MiniPCIe card into the slot.
- Secure the card using the Mini PCIe screw included in the accessory kit.
- Unplug the power source before installing a SIM card.
- Identify which slot corresponds to your installed expansion card: SIM1 is used with the MiniPCIe slot, SIM2 is used with the M.2 3052 slot.
- Insert the Nano SIM card into the appropriate slot.
- Ensure this step is performed by a skilled/qualified person.
- Use copper conductors only, with an appropriate wire diameter (the terminal block is suitable for 14 AWG, torque value 4.5 lb-in).
- Connect a 9-36 VDC power source to the 2-pin terminal block connector.
- Set the AT/ATX jumper (PSON1) to the desired mode: pins 1-2 for AT, pins 2-3 for ATX.
- Connect the green-yellow Earth-Ground cable (16 AWG) from the chassis ground to other protective bonding.
- Take the mounting kit (2x bracket, P/N 1960095312N003) from the accessory box.
- Secure the brackets to the unit using the 4x included screws (P/N 1930001241).
- Install the system on the wall using the mounted brackets.
| Manufacturer | Advantech |
|---|---|
| Short Description | AI Inference System Based on NVIDIA Jetson Orin NX. |
| CPU Family | Jetson AGX Orin |
| LAN Ports | 1-4 |
| USB 2.0 | 1-2 |
| USB 3.2 | 1 - 4 |
| Max Memory | 16 GB |
| Certification | CB/UL/CE/FCC/BSMI/CCC (No RED certification) |
| CPU | 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit |
| L2 Cache | 8GB: 1.5MB 16GB: 2MB |
| L3 Cache | 8GB: 4MB 16GB: 4MB |
| Memory | 8GB LPDDR5 16GB LPDDR5 |
| Storage | 1 x M.2 2280 (Mkey, NVMe, Signal: PCIex4) 1 x Micro SD |
| Network (LAN) | 1 x 10/100/1000 Mbps |
| I/O | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| Humidity | 95% @ 40 °C (non-condensing) |
| Operating Temperature | -10 ~ 50 °C with 0.7 m/s air flow |
| Shock | 10G / 11ms |
| Vibration Protection | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Power Input Voltage | 9 ~ 36VDC |
| Weight | 1.2 kg (2.65lbs) |
| Dimension | 130 x 130 x 46 mm (5.1 x 5.1 x 1.8 inch) |
