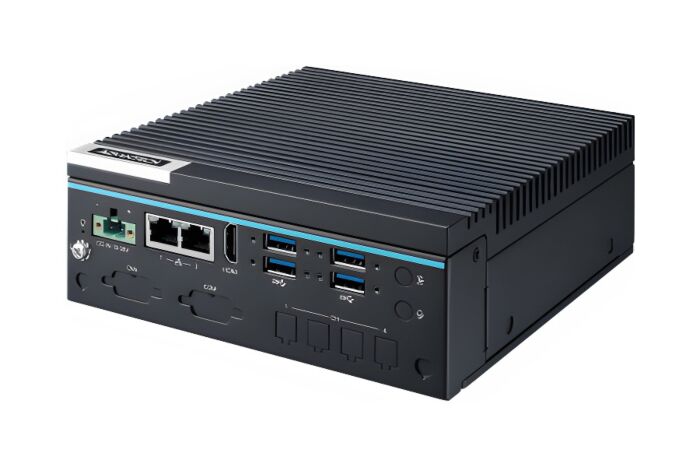

MIC-712-OX: AI Inference System based on NVIDIA Jetson Orin NX
MIC-712-OXStarting at $1,880.00
Aimed at helping AI developers in safety & security applications, MIC-712-OX comprises a compact fanless computing system with diverse I/O and peripherals.
- Ultra-slim design for mobile equipment in safety & security applications
- Embedded with NVIDIA Jetson Orin NX/Orin Nano
- Multiple expansions for GMSL, PoE, and USB
- Support NVIDIA power mode up to 157 TOPS performance
- Integrate Out-of-Band management within the system
Frequently Asked Questions
The MIC-712-OX provides:
- 2 x 10/100/1000 Mbps Ethernet
- 1 x HDMI (max resolution 3840x2160 @ 60Hz)
- 4 x USB 3.2 Gen 2 (external)
- 1 x Micro USB debug console
- 1 x Micro USB OTG
- 1 x Nano SIM slot
- Optional: RS-232/422/485 serial port and CANBus port (on-board pin header reserved)
The system supports the NVIDIA Jetson Orin NX module with either 16GB or 8GB LPDDR5 memory. For storage, it includes 1 x M.2 2280 slot (PCIe x1, Gen 4) and 1 x Micro SD card slot. The system BSP is pre-installed on a 128GB NVMe M.2 SSD.
The MIC-712-OX supports several expansion options:
- 1 x M.2 E-key (2230, PCIe + USB 2.0)
- 1 x M.2 B-key (3052, USB)
- Optional TPM 2.0 module
- Optional MIPI connector for GMSL expansion
- Optional RS-232/422/485 serial port (on-board pin header reserved)
- Optional CANBus port (on-board pin header reserved)
The MIC-712-OX accepts a DC input voltage range of 19 ~ 36 V.
The system operates from -20 to 70 °C with 0.7 m/s airflow. It is rated for 95% humidity at 40 °C (non-condensing), 3 Grms vibration (5-500 Hz, random, 1 hr/axis), and 10G/11ms shock.
The MIC-712-OX is certified CE, FCC, UKCA, CB, UL, BSMI, and CCC. Note: it does not have RED certification.
The unit measures 160 x 160 x 60 mm (6.3" x 6.3" x 2.36") and weighs 2.05 kg without packing material. It is designed for desktop installation.
The MIC-712-OX runs on NVIDIA Jetpack JP6.2 or above as its board support package (BSP).
The MIC-712-OX4A1 uses the NVIDIA Jetson Orin NX module with 16GB memory, while the MIC-712-OX3A1 uses the 8GB memory version. Both come with a 128GB NVMe M.2 SSD pre-installed with the system BSP.
How-to Guides
- Locate the Micro USB cable for system recovery included in the packing list.
- Connect the Micro USB cable to the system's Micro USB debug console or OTG port as required for recovery mode.
- Follow NVIDIA Jetpack recovery procedures to reflash or restore the system.
- Confirm the power source supplies DC voltage within the 19 ~ 36 V input range.
- Use the included 2-pin power connector (part number 1652002202) to connect the power source to the system.
- Optionally, use one of the listed power adapters (e.g., 96PSA-A65W19P2-1, 100-240V 65W 19V) with an appropriate regional power cord for AC-to-DC conversion.
- Locate the 2 mounting brackets and 4 mounting screws (part number 1930007979) included in the packing list.
- Attach the mounting brackets to the system chassis using the provided screws.
- Secure the system in the desired desktop installation location using the mounting brackets.
Aimed at helping AI developers in safety & security applications, MIC-712-OX comprises a compact fanless computing system with diverse I/O and peripherals.
| Product Available On | Mar 18, 2026 |
|---|---|
| Manufacturer | Advantech |
| Short Description | Aimed at helping AI developers in safety & security applications, MIC-712-OX comprises a compact fanless computing system with diverse I/O and peripherals. |
