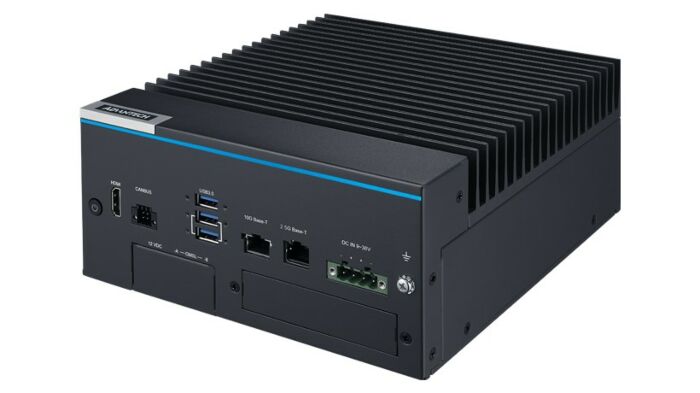

MIC-732-AO: AI Inference System Based on NVIDIA Isaac Nova Orin
MIC-732-AOStarting at $5,445.00
- Fanless and ultra-compact design
- Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- Supports 1 x 10GbE, 1 x 1GbE, 3 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x CANbus, 1 x mPCIe, 2 x Nano SIM slots
- Support Total 8-ch GMSL3.0/2.0 with FAKRA connectors
- Support NVIDIA Isaac Robot Operating System (ROS2)
Frequently Asked Questions
The MIC-732-AO provides the following external I/O:
- 1 x 10GbE and 1 x 10/100/1000/2500 Mbps Ethernet
- 1 x HDMI display output
- 3 x USB 3.2 Gen 2, plus 2 x USB micro B (one used for UART debug)
- 2 x CANbus
- 2 x RS-232/422/485 on-board pin header
- 1 x mPCIe slot and 2 x Nano SIM slots
- Optional 8-channel GMSL3.0/2.0 with FAKRA connectors
Internally there is also 1 x USB 2.0 pin header.
The unit accepts DC input from 9~36V, with a rated input of 12V. It supports AT/ATX power mode, with AT as the default.
The MIC-732-AO operates from -20 to 60 °C with 0.7 m/s air flow. It is rated for 95% relative humidity at 40 °C (non-condensing), 3 Grms vibration (5~500 Hz, random, 1 hr/axis), and 10G/11ms shock.
The MIC-732-AO is CE and FCC certified.
The MIC-732-AO6A1 comes with 64GB LPDDR5 memory and 64GB eMMC. It also supports an additional M.2 2280 (B/M-Key, NVMe, PCIe x4) for storage expansion.
The system supports the following expansion interfaces:
- 1 x M.2 3052 (B-Key), signal: USB 3.0 + USB 2.0
- 1 x M.2 2230 (E-Key), signal: PCIe + USB 2.0
- 1 x M.2 2280 (B/M-Key, NVMe, PCIe x4) for storage
- 1 x mPCIe (Signal: PCIe + USB 2.0)
- 2 x Nano SIM slots
- Optional 8-channel GMSL3.0/2.0 with FAKRA connectors
- Optional 1 x iDoor bracket reserve
The MIC-732-AO supports NVIDIA Jetpack above 6.0 as its BSP, and supports the NVIDIA Isaac Robot Operating System (ROS2).
The MIC-732-AO can be installed as a desktop unit or wall-mounted. Its dimensions are 192 x 203 x 90 mm (W x H x D), including the heat sink.
The MIC-732-AO includes 2 x Nano SIM slots along with a mPCIe slot, allowing for cellular module installation, though the cellular module itself is not detailed as included in the base specification.
How-to Guides
- Confirm your power source supplies between 9~36V DC, with a rated 12V input.
- Use the included power terminal block (4P) to connect the DC power lines to the unit.
- Select AT or ATX power mode as required; note that AT is the factory default.
- Locate the 2 x CANbus interfaces on the MIC-732-AO.
- Use the included CANbus Plug-In Block (2x3P) to wire your CAN devices to the corresponding CANbus port.
- Locate the USB micro B port designated for UART/debug on the unit.
- Connect the included Micro USB cable for system recovery between the unit and a host PC.
- Press the onboard Reset/Recovery button to initiate recovery mode.
- Choose either a desktop or wall-mount installation, as both are supported.
- Ensure sufficient clearance around the unit, accounting for its 192 x 203 x 90 mm dimensions (with heat sink) and the required 0.7 m/s air flow for rated operating temperature.
- Secure the unit using the wall-mount points if wall mounting.
| Manufacturer | Advantech |
|---|---|
| Short Description | AI Inference System Based on NVIDIA Isaac Nova Orin. |
| Processor | MIC-732-AO5A1: 8-core ARM Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
| Graphics | MIC-732-AO5A1: 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz |
| Memory | MIC-732-AO5A1: 32GB LPDDR5 |
| Video Port | 1 x HDMI Display |
| M.2 | 1 x M.2 3052 (B-Key) (Signal: USB 3.0+USB 2.0) |
| Mini PCI-E | 1 x mPCIe (Signal: PCIe+USB 2.0) |
| Power Input Voltage | 9~36VDC, Rated 12VDC |
| Fan | Fanless |
| Dimension | 192 x 203 x 90 mm (with heat sink) |
| Weight | TBC |
| Mounting | Desktop / Wall mount |
| Operating Temperature | -20 ~ 60 °C with 0.7 m/s air flow |
| Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G / 11 ms |
