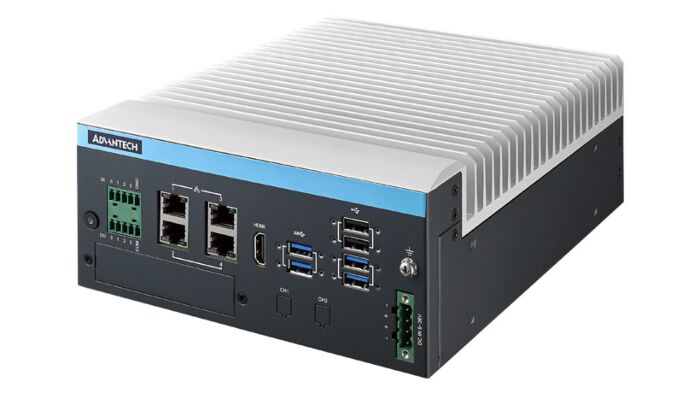

MIC-733-AO AI Inference System based on NVIDIA Jetson AGX Orin
MIC-733-AOStarting at $3,755.00
- Fanless compact design
- Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- Support 4x GbE (optional PoE), 4 x USB 3.2 Gen2 (10Gbit/s)
- Support 2 x mPCIe, 2 x Nano SIM slot
- Support 4x GbE (optional PoE, IEEE 802.3af/at)
- Support PCIex8 add on card by iModule
- Support Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
Frequently Asked Questions
The MIC-733 provides the following I/O:
- 4 x Gigabit Ethernet LAN ports (10/100/1000 Mbps)
- 1 x HDMI video output
- External: 2 x USB 2.0, 4 x USB 3.2 Gen 2; Internal: 1 x USB 2.0
- 4ch digital input / 4ch digital output (DI/DO)
- 2 x RS-232/RS-422/RS-485 (pin header reserved, internal)
- 2 x Mini PCIe slots (signal: PCIe x1 + USB 2.0)
- 1 x OTG Micro USB (internal, for system recovery)
- 1 x iDoor expansion space and 1 x iModule slot
- 1 x M.2 2280 slot (signal: PCIe x4 NVMe)
- 1 x M.2 3052 slot (signal: USB)
- 1 x Micro SD card slot
- 2 x NANO SIM slots
The MIC-733 uses AT/ATX power type with a DC input range of 9-36V. The unit is intended to be powered by a UL-certified power supply or DC source rated 9-36V, 15-5A minimum, with output meeting SELV or ES1, suitable for use at a maximum temperature of 60°C.
The MIC-733 operates from 0 to +60°C (14 to 140°F), with operating humidity up to 95% at 40°C (non-condensing). Storage temperature range is -40 to 85°C (-40 to 185°F), with storage humidity up to 95% RH at 60°C (non-condensing).
The system includes 32GB or 64GB LPDDR5 memory and 64GB eMMC 5.1 onboard storage. Additional storage can be added via the M.2 2280 slot (PCIe x4 NVMe) or a Micro SD card slot.
The MIC-733 measures 192 x 230 x 87 mm (7.56" x 9.06" x 3.43") and has a reference weight of 4.5 kg.
The MIC-733 provides 2 x Mini PCIe slots (signal: PCIe x1 + USB 2.0) for wireless modules, and 2 x NANO SIM slots — SIM1 pairs with the Mini PCIe slot and SIM2 pairs with the M.2 3052 slot for cellular connectivity.
The MIC-733 supports one iModule connector, compatible with the MIC-75M10 to add one PCIe x8 card. Note that the iDoor on the MIC-75M10 chassis is not compatible with the MIC-733.
The MIC-733 is pre-integrated with the NVIDIA Jetson AGX Orin module, intended for industrial AI inference applications.
The user name and password for the MIC-733 AGX Orin platform is mic-733ao. The root name for the MIC-733 series is root.
How-to Guides
- Ensure installation is performed by a skilled person.
- Use copper conductors only for the DC-In connector.
- Choose an appropriate wire diameter; the terminal block is suitable for 14 AWG wire with a torque value of 7 in-lbf.
- Connect the green-yellow Earth-Ground cable (16 AWG) from the chassis ground to the other protective bonding point.
- Confirm the DC source is rated 9-36V and meets SELV or ES1 output requirements before connecting power.
- Power off the system and disconnect all power sources before opening the enclosure.
- Locate the M.2 2280 slot, which supports a PCIe x4 NVMe storage device.
- Insert the M.2 2280 SSD into the slot and secure it per the mounting hardware provided.
- Locate the Micro SD card slot on the MIC-733.
- Insert the Micro SD card into the slot for use as a storage device.
- Locate the PSON1 jumper on the MIC-733.
- Set pins 1-2 for AT mode.
- Set pins 2-3 for ATX mode.
- Take the mounting kit out of the accessory box.
- Secure the brackets using the 4 provided screws (P/N: 1930007259-01 M4x4L).
- Install the system on a table surface using the mounted brackets.
| Manufacturer | Advantech |
|---|---|
| Short Description | Aimed at helping AI developers in manufacturing and smart city industries, MIC-733 comprises a compact fanless computing system with diverse I/O and peripherals. |
| CPU Cores | 12 |
| CPU Family | Arm Cortex |
| Base CPU Speed | 2.1 to 3.0 GHz |
| Video Output | HDMI |
| PoE Ports | 4 |
| USB 2.0 | 3-4 |
| USB 3.2 | 1 - 4 |
| Max Memory | 64 GB |
| Form Factor | Fanless |
| Native Storage Type | M.2 NVMe SSD |
| Certification | UL/CB/CE/FCC/BSMI/CCC (No RED certification) |
| CPU | 12-core Cortex A78 ARM 64-bit CPU, 3 clusters (4 x 256KB L2 + 2MB L3) + 4MB L4 |
| Memory | JAO 64G : 64GB LPDDR5 JAO 32G : 32GB LPDDR5 |
| Storage | 1 x Micro SD slot 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) |
| Expansion Slots | 1 x PCIe x8 (MIC-75M10-00A2) 2 x mPCIe (Signal: PCIe+USB) 2 x Nano SIM slots 1 x M.2 3052 (B-Key, Signal: USB) 1 x TPM 2.0 2 x GMSL2.0 with FAKRA connectors 1 x iDoor bracket reserve |
| Humidity | 95% @ 40 °C (non-condensing) |
| Operating Temperature | -10 ~ +60 °C with 0.7 m/s airflow (MaxN mode) |
| Shock | 10G / 11 ms |
| Vibration Protection | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Power Input Voltage | 9 ~ 36 VDC, 16-4A |
