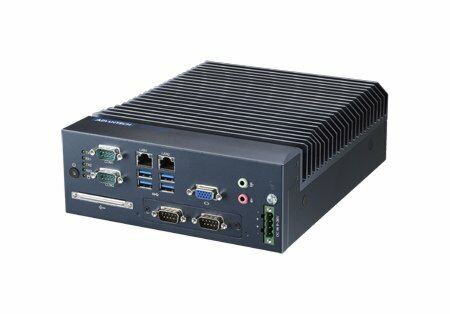

Advantech Intel Xeon Processor Broadwell-DE SoC Compact Fanless System
MIC-7900An Alternative Product May Be Available!
Contact us for more information at 866-412-6278 or enter your information below.
Main Features:
- Intel® Xeon® D-1539/D-1559 SoC processor
- Wide operating temperature (-20 ~ 50 °C)
- 9 ~ 36 VDC input power range
- 2 x RS-232/422/485 and 2 x RS232 serial ports (with expansion cable)
- 1 x 2.5" HDD/SSD, 1 x CFast, 1 x M.2
- 4 x GigaLAN and 4 x USB 3.0
- Supports Advantech i-Modules, SUSIAccess, and embedded software APIs
- Supports Windows Server 2016, Linux OS, and VMware
Intel Xeon Processor Broadwell-DE SoC Compact Fanless System
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 8, 12 |
| CPU Family | Intel Xeon |
| Base CPU Speed | Under 2.0 Ghz |
| Video Output | VGA |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| USB 3.0 | 5-6 |
| Max Memory | 32 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 2400 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, M.2 NVMe SSD, Cfast/Compact Flash |
| Memory | Dual Channel(Non-ECC) DDR4 1866/2133 MHz 32 GB |
| Watchdog TImer | Programmable 1 ~255 sec |
| Operating Temperature | -20°C ~ 50°C with 0.7 m/s air flow |
| Shock | With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration |
| Weight | 2.9kg (6,39lbs) |
| Dimension | 74mm x 192mm x 230mm (2.9" x 7.6" x9") |
