NRU-230V-240S-AWP: IP66 Waterproof AGX Orin Computer with 8x GMSL2, 4x PoE+ GbE, and 1x 10GbE Ports
NRU-230V-240S-AWP SeriesStarting at $4,075.00
- NVIDIA Jetson AGX Orin SoM bundled with JetPack 5.1.1
- NVIDIA Jetson AGX Orin Industrial bundled with JetPack 6.0
- Rugged -25°C to 70°C fanless operation (JAO32/JAO64)
- No throttling at 55°C with JAO64 MAXN Mode
- Rugged -40°C to 75°C fanless operation (JAOi)
- No throttling at 55°C with JAO64 MAXN Mode
- IP66 waterproof and dustproof
- -25°C to 70°C fanless operation
- Support 8x GMSL2 FAKRA Z automotive cameras (NRU-230V-AWP)
- 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
- 2x isolated CAN 2.0, 1x RS232, and 1x isolated RS485 via M12 A-coded connectors
- 1x system monitoring port by automotive-grade MCU
- 8V to 48V wide-range DC input with built-in ignition power control
Frequently Asked Questions

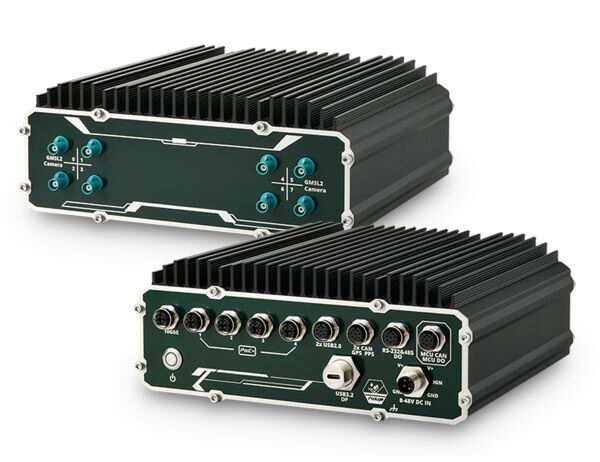

The front panel provides an M12 X-coded 10 Gigabit Ethernet port (backward compatible with 5Gb, 2.5Gb, and 1Gb), 4x M12 X-coded Gigabit Ethernet ports with IEEE 802.3at PoE+ (100W total power budget), 2x M12 A-coded USB 2.0 ports, 1x waterproof USB Type-C port (USB 3.2 Gen1 and alternative DisplayPort up to 3840x2160@60Hz), 2x isolated CAN 2.0 with 1x isolated DI (GPS PPS input), 1x isolated RS-485, 1x RS-232, 1x isolated DO, and 1x M12 A-coded MCU CAN/DO port for system monitoring by an automotive-grade MCU. The NRU-230V-AWP additionally has 8x FAKRA Z connectors for GMSL2 cameras on the rear panel.
The system accepts 8V to 48V DC input with reverse polarity protection and built-in ignition power control, via an M12 L-coded 5-pin connector. The maximum current per pin is 16A. Supplying a voltage over 48V will damage the system.
With the JAO32 or JAO64 module in 30W TDP mode, the operating temperature is -25°C to 70°C without 10GbE transmission and PoE load, or -25°C to 60°C with full function. With the JAOi (Industrial) module in 35W TDP mode, the range is -40°C to 70°C without 10GbE/PoE load, or -40°C to 60°C with full function. Under full CPU+GPU stressing, the system is rated non-throttling at 65°C (30W TDP mode), 55°C (JAO64 MAXN 60W TDP mode), and 50°C (JAOi MAXN 75W TDP mode). Storage temperature is -40°C to 85°C. For sub-zero or over 60°C operation, a wide-temperature SSD is required.
Yes. The system is rated IP66 waterproof and dustproof. It is also tested for vibration per MIL-STD-810H Method 514.8 Category 4, shock per MIL-STD-810H Method 516.8 Procedure I, and carries CE/FCC Class A EMC certification according to EN 55032 and EN 55035.
The system includes 32GB or 64GB LPDDR5 memory on the Jetson AGX Orin SOM (depending on JAO32/JAO64 configuration) and 64GB eMMC 5.1 on the SOM. Expansion storage includes 1x M.2 2280 M-key NVMe socket (PCIe Gen4x2) and 2x internal SATA ports for 2.5" HDD/SSD installation.
The system has two full-size mini-PCIe sockets: one supporting PCIe + USB 2.0 for WiFi 6 or CAN modules, and one supporting USB 2.0 only for GNSS or 4G LTE modules. It also has one M.2 3042/3052 B-key socket (USB 3.2 Gen1 + USB 2.0) with dual micro SIM support for 4G LTE/5G NR modules.
The NRU-230V-AWP supports up to 8x GMSL2 automotive cameras via FAKRA Z connectors, available in configurations of 8x AC-IMX390 (2MP@30FPS), 8x AC-ISX031 (3MP@30FPS), or 8x AC-IMX490 (5MP@30FPS). It also supports 4x PoE+ GbE ports for industrial GigE or IP cameras. Note this GMSL2 camera support is exclusive to the NRU-230V-AWP; the NRU-240S-AWP does not include the FAKRA connectors.
The system measures 225mm (W) x 194-195mm (D) x 88.5-89.5mm (H), depending on whether rubber feet are included, and weighs 4.4kg excluding the wall-mount bracket. A wall-mount bracket is included as standard mounting.
Ignition power control is an MCU-based feature for in-vehicle use that monitors the ignition (IGN) signal and turns the system on/off based on configurable power-on and power-off delays. It supports low battery detection (shuts down if input voltage drops below 11V for 12VDC or 22V for 24VDC systems for 60 seconds), guarded delay cancellation, system hard-off after 10 minutes if soft shutdown fails, and a smart off-delay mode. Standby power consumption while waiting for the ignition signal is less than 2mW. The system offers 16 operation modes (0-15) with different power-on/power-off delay combinations, configurable via a rotary switch.
How-to Guides
- Disassemble the system enclosure as described in the enclosure disassembly procedure.
- Insert the M.2 NVMe module into the M.2 2280 M-key slot at a 45° angle.
- Gently press the module down and secure it with an M2.5 P-head screw.
- Remove the thermal pad's protective film at the bottom of the enclosure panel for the NVMe module.
- Reinstall the enclosure when done.
- Remove the indicated bottom panel screws.
- Place a 2.5" HDD/SSD into the drive mount, noting the orientation of the drive's connector relative to the panel, and secure it with four screws.
- Connect the SATA cable to the connector.
- Repeat the steps if installing a second drive.
- Place the panel back onto the enclosure and secure the screws at a torque range of 6.3-7.7 kgf-cm in ascending order to complete installation.
- Disassemble the system enclosure.
- If installing a mini-PCIe module with 4G/3G that requires a SIM card, push the SIM slot holder open and place the SIM into the slot, then flip the holder back and push to lock it in.
- Insert the gold finger end of the mini-PCIe card at a 45° angle into the slot, gently push the other end down onto the motherboard, and secure it with a screw.
- If an antenna is needed, clip the IPEX-to-SMA cable onto the module and secure the antenna to the side panel.
- Reinstall the enclosure when done.
- Confirm the DC power source is within 8V to 48V; supplying over 48V will damage the system.
- Connect the vehicle battery positive line (12V for sedan, 24V for bus/truck) to V+.
- Connect the vehicle battery negative/GND line to GND.
- Connect the ACC line to IGN.
- Ensure the DC power source and IGN signal share the same ground.
- Remove the four rubber stands at the bottom of the enclosure.
- Take the wall mount bracket and four M4 screws from the accessory box and fix the bracket to the bottom of the system enclosure.
- Place the system on a flat surface portion of the wall and secure it with four M4 screws, orienting the heatsink fins perpendicular to the ground for better heat dissipation.
NRU-230V-AWP is a rugged, IP66 waterproof NVIDIA Jetson AGX Orin computer targeting edge AI applications in harsh environments, such as roadside, food, and chemical factories, mining, construction, agriculture, or harbors. It aims to redefine rugged Edge AI with waterproof features at an affordable cost through its streamlined mechanical design, standardized cable kit, and carefully selected waterproof connectors.
Powered by NVIDIA Jetson AGX Orin, NRU-230V-AWP offers up to 275 sparse TOPS (INT8) AI inference and can simultaneously transcode up to twenty-two 1080P video streams. To meet versatile camera requirements for vision-based AI applications, NRU-230V-AWP not only offers 4x waterproof M12 PoE+ GbE ports for industrial GigE cameras or IP cameras, but it also provides 8x waterproof GMSL2 FAKRA ports for automotive cameras or industrial stereo cameras. The waterproof Type-C connector also provides 4K DisplayPort output for ADAS applications involving real-time surround-view awareness. A waterproof 10GbE port is also provided for high-speed data communication.
For in-vehicle deployment, NRU-230V-AWP is equipped with an 8V to 48V wide DC input range, ignition power control, 2x isolated CAN bus ports, 1x RS232 port, and 1x isolated RS485 port. It also features two mini-PCIe sockets for CAN/ COM/ WiFi modules and one M.2 B-key socket for 4G LTE/5G NR mobile communication module. Regarding storage, NRU-230V-AWP comes with 64GB eMMC on the Orin module, an M.2 2280 NVMe socket for fast SSD read/write speeds, and two internal 2.5" SSD slots for storage expansion. Lastly, NRU-230V-AWP has a system monitoring port to report the latest power, thermal, and Jetson status via an onboard automotive-grade MCU for potential functional safety system design.
Integrating IP66 waterproof capability, AGX Orin AI performance, and rich onboard IO strikes a sweet spot between ruggedness, performance, and cost. It is an ideal waterproof edge AI platform for industrial vehicles, outdoor AMR, edge inspection, and roadside.
| Manufacturer | Neousys |
|---|---|
| Short Description | NRU-230V-AWP is a rugged, IP66 waterproof NVIDIA Jetson AGX Orin computer targeting edge AI applications in harsh environments, such as roadside, food, and chemical factories, mining, construction, agriculture, or harbors. It aims to redefine rugged Edge AI with waterproof features at an affordable cost through its streamlined mechanical design, standardized cable kit, and carefully selected waterproof connectors. |
| Processor | NVIDIA Jetson AGX Orin system-on-module (SOM), comprising NVIDIA® Ampere GPU and Arm Cortex-A78AE CPU |
| Memory | 32GB/64GB LPDDR5 (JAO 32GB/JAO 64GB) @ 3200 MHz on SOM |
| PoE | IEEE 802.3at PoE+ PSE for Port 1 to Port 4, 100 W total power budget |
| Video Port | 1 x DisplayPort (supports 3840x2160 at 60Hz) |
| DIO | 1 x isolated DO via M12 A-coded 8-pin connector |
| M.2 | 1 x M.2 2280 M key NVMe socket (PCIe Gen4x2) for NVMe SSD |
| Mini PCI-E | 1 x full-size mini PCI Express socket (PCIe + USB 2.0) for WiFi 6 or CAN 1 x full-size mini PCI Express socket (USB 2.0) for GNSS or 4G LTE |
| SATA HDD | 2 x internal SATA ports for 2.5" SSD installation |
| DC Input | 8V to 48V DC input and ignition power control via M12 L-coded, 5-pin connector* * The maximum current of each pin is 16A. |
| Fan | Fanless |
| Dimension | 225 mm (W) x 195 mm (D) x 89 mm (H) |
| Weight | 4.4kg (excluding wall-mount bracket) |
| Mounting | Wall-mount bracket (standard) |
| Operating Temperature | -25°C to 70°C (30W TDP mode, without 10GbE transmission and PoE Load) ** -25°C to 60°C (30W TDP mode, with full function) With full CPU+GPU stressing: 1. NRU-230V-AWP non-throttling at 65C with 30W TDP mode 2. NRU-230V-AWP non-throttling at 55C with 60W TDP mode (JAO64 MAXN ) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) |
