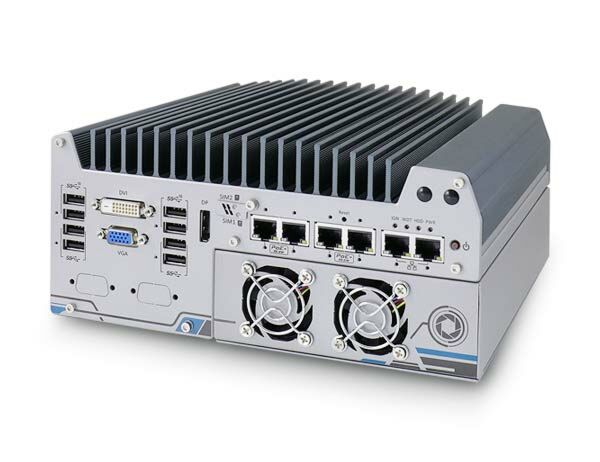

Nuvis-7306RT Neousys 9th / 8th Gen Intel Vision Controller with Vision-Specific I/O and GPU Computing
Nuvis-7306RTStarting at $2,025.00
Main Features:
- Intel 9th / 8th Gen Core i7/i5 65W/35W CPU, up to 32 GB DDR4
- Integrated vision-specific I/O
- 4-CH CC/CV lighting controller
- 4-CH camera trigger outputs
- 1-CH quadrature encoder input
- 8-CH isolated DI and 8-CH isolated DO
- Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
- Built-in camera interfaces
- 4-CH IEEE 802.3at Gigabit PoE+ ports
- 4-CH USB 3.0 ports
- Two 16 PCIe slots : one for NVIDIA 120W GPU card, one for image capture card
Frequently Asked Questions
The Nuvis-7306RT includes:
- 6x Gigabit Ethernet ports (via Intel I219 and I210), 4 of which are IEEE 802.3at Gigabit PoE+ ports with RJ45 connectors
- 4x USB 3.1 Gen2 (10Gbps) ports and 4x USB 3.1 Gen1 (5Gbps) ports, plus 1x internal USB 2.0 port
- Video: 1x VGA (1920x1200), 1x DVI-D (1920x1200), 1x DisplayPort (up to 4096x2304)
- Serial: 2x software-programmable RS-232/422/485 ports (COM1/COM2) and 2x RS-232 ports (COM3/COM4)
- 1x 3.5mm audio jack for mic-in and speaker-out
- Vision-specific I/O: 4-CH CC/CV LED lighting controller, 4-CH isolated camera trigger output, 1-CH quadrature encoder input (A/B/Z), 4-CH isolated high-speed digital output, 4-CH isolated high-current digital output, and 8-CH isolated digital input
The unit takes an 8~35VDC input via a 3-pin pluggable terminal block. A separate 3-pin pluggable terminal block is provided for remote control and PWR LED output. Optional AC/DC power adapters are available: a 280W adapter (24V/11.67A) and a 480W DIN-rail mount adapter (24V/20A, 90~264VAC input).
Operating temperature is -25°C to 60°C with a 35W CPU and NVIDIA 120W GPU. With a 65W CPU and NVIDIA 120W GPU, the range is -25°C to 60°C when configured in 35W TDP mode, or -25°C to 50°C when configured in 65W TDP mode. Storage temperature is -40°C to 85°C. Note: for sub-zero operation a wide-temperature HDD or SSD is required, and for i7-9700E/i7-8700 running at 65W the max operating temperature is limited to 50°C with possible thermal throttling under sustained full load.
Humidity tolerance is 10%~90%, non-condensing. The unit meets MIL-STD-810G vibration (Method 514.6, Category 4) and shock (Method 516.6, Procedure I, Table 516.6-II) standards, and EMC compliance is CE/FCC Class A per EN 55032 & EN 55024.
Storage: 2x internal SATA ports for 2.5" HDD/SSD (supporting RAID 0/1), 1x M.2 2280 M-key socket (PCIe Gen3 x4) for NVMe SSD or Intel Optane memory, and 1x full-size mSATA port (mux with mini-PCIe).
Memory: up to 64GB DDR4 2666/2400 SDRAM across two SODIMM slots.
Expansion: 2x PCIe x16 slots at Gen3 (8-lane PCIe signals in cassette) supporting a 120W NVIDIA GPU card and/or COTS CameraLink and CoaXPress camera interface cards. There is also 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA), and 1x M.2 2242 B-key socket with dual front-accessible SIM sockets supporting dual SIM mode with a selected M.2 LTE module.
The Nuvis-7306RT measures 240mm (W) x 225mm (D) x 111mm (H) and weighs 3.7 kg. It is designed for wall mounting.
The unit has a mini PCI Express socket with an internal SIM socket (mux with mSATA), and a separate M.2 2242 B-key socket with dual front-accessible SIM sockets that supports dual SIM mode when used with a selected M.2 LTE module.
The Nuvis-7306RT provides 2x PCIe x16 slots at Gen3 (8-lane PCIe signals in cassette) that can accommodate a 120W NVIDIA GPU card and/or COTS CameraLink and CoaXPress camera interface cards, enabling GPU-accelerated deep learning vision processing.
Both models are Intel 9th/8th-Gen Core i machine vision controllers with vision-specific I/O and GPU computing support. The difference is the real-time I/O controller firmware: the -DTIO model uses the patented DTIO V2 controller, while the -NuMCU model uses the patented NuMCU controller.
The Nuvis-7306RT uses an LGA1151 socket supporting Intel 9th/8th-Gen Coffee Lake CPUs: Core i7-9700E, i7-9700TE, i7-8700, i7-8700T, i5-9500E, i5-9500TE, i5-8500, or i5-8500T (65W/35W TDP). It uses the Intel Q370 platform controller hub with integrated Intel UHD Graphics 630. It also supports Intel AMT 12.0 and TPM 2.0.
How-to Guides
- Locate the 3-pin pluggable terminal block labeled for DC input on the unit.
- Connect a DC power source rated between 8~35VDC to the terminal block.
- If using an optional power adapter, the PA-280W-ET2 (280W, 24V/11.67A) or PA-480W-DIN (480W, 24V/20A DIN-rail mount) can be used with the terminal block connections provided.
- Use the separate 3-pin pluggable terminal block for remote control and PWR LED output as needed.
- For 2.5" HDD/SSD, use one of the 2 internal SATA ports; these can be configured for RAID 0/1.
- For an NVMe SSD or Intel Optane memory, install into the M.2 2280 M-key socket (PCIe Gen3 x4).
- For an mSATA storage device, use the full-size mSATA port (note this is muxed with the mini-PCIe slot, so both cannot be used simultaneously in that configuration).
- Identify the 2x PCIe x16 slots (Gen3, 8-lane PCIe signals) located in the expansion cassette.
- Install a 120W NVIDIA GPU card into one of the PCIe x16 slots for GPU-accelerated vision processing.
- Alternatively, install a COTS CameraLink or CoaXPress camera interface card into the available PCIe x16 slot.
- Locate the M.2 2242 B-key socket, which has dual front-accessible SIM sockets.
- Install a supported M.2 LTE module into this socket.
- Insert SIM cards into the front-accessible SIM sockets to enable dual SIM mode.
- Alternatively, the mini PCI Express socket (with internal SIM socket, muxed with mSATA) can be used for a cellular module if mSATA storage is not in use.
- The Nuvis-7306RT is designed for wall mounting.
- Confirm the unit's footprint (240mm W x 225mm D x 111mm H) and weight (3.7 kg) fit the intended installation location before mounting.
| Manufacturer | Neousys |
|---|---|
| Processor | 9th / 8th Gen Intel Core GPU |
| Graphics | Integrated Intel UHD Graphics 630 |
| Memory | Up to 64GB DDR4-2666/2400 SDRAM by two SODIMM sockets |
| Chipset | Intel® Q370 Platform Controller Hub |
| AMT | Supports AMT 12.0 |
| PoE | Option : IEEE 802.3at PoE+ PSE on GigE Port 3 ~ Port 6 |
| Ethernet Standard | I219 I210 |
| Video Port | 1x VGA, 1X DVD-D, 1x DisplayPort |
| Audio | 1x Mic-in and 1x Speaker-out |
| DIO | 4-CH isolated high speed digital output 4-CH isolated high current digital output 8-CH isolated high speed digital input |
| PCI Express | 2x PCIe x16 slots |
| M.2 | 1x M.2 Socket for NVMe storage 1x M.2 socket with dual SIM for Cellular card (contact CoastIPC for limitations) |
| Mini PCI-E | 1x mPCIe (mux with mSATA) |
| SATA HDD | 2x SATA ports for 2.5" SDD |
| mSATA | 1x full-size mSATA port (mux with mPCIe) |
| 2.5" Drive | 2x internal SATA |
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC input |
| Power Adapter | 280W 480W recommended |
| Power Input Voltage | 8~35VDC |
| Power Type | DC |
| Fan | Cassette only |
| Remote Ctrl. & Status Output | 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 kg estimated no packaging, no GPU |
| Mounting | Wall-mount |
| Operating Temperature | varies - see manual |
| Storage Temperature | -40-85C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G Method 516.6, Procedure 1, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55022, EN55032 & EN 55024 |
| CPU Cores | 4, 6 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz |
| Video Output | Display Port, DVI-D, VGA |
| PoE Ports | 4 |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 2.0 | 1-2 |
| USB 3.1 | 5-8 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 2400 MHz, 2666 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, mSATA Full, M.2 NVMe SSD |
| On/Ignition | Remote On/Off |
