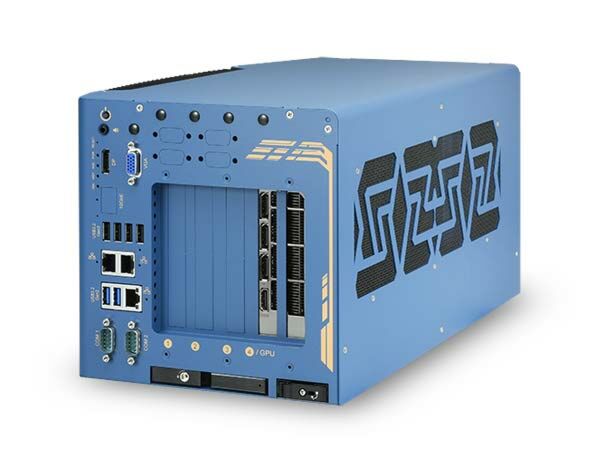

Nuvo-10108GC: Industrial Edge AI Computer Supporting a 350W NVIDIA RTX GPU and Intel 12th/13th-Gen Core Processor with Three Additional PCIe Slots
Nuvo-10108GC SeriesStarting at $1,995.00
Main Features:
- Supports an NVIDIA 350W GPU (Gen4 x16 PCIe)
- Dedicated GPU-locking bracket
- Intel 12th/13th-Gen Core™ 35W/ 65W LGA1700 CPU
- Up to 64GB ECC/ non-ECC DDR5 4800 with Intel R680E chipset (2x SODIMM)
- Three x8 PCIe slots (Gen3 x4) for add-on cards
- 6x USB 3.2, 2x 2.5GbE, 1x GbE, and 1x optional 10GbE
- Two front-accessible tray storage options: 1x 2.5" SATA and 1x optional NVMe
- 8V to 48V wide-range DC input with ignition power control
- -25°C to 60°C wide temperature operation
Nuvo-10108GC is Neousys' response to ruggedized Edge AI computer with extreme CPU and GPU performance for autonomous driving and AI-powered factory automation. It leverages an Intel 12th/13th-Gen CPU and an NVIDIA RTX 40 series or the latest RTX 6000 Ada GPU that offers single-precision GPU performances up to 48 TFLOPS or 91 TFLOPS, respectively.
Powered by Intel 12th/13th-Gen CPU with up to 24 cores and 32 threads, Nuvo-10108GC offers up to twice the performance compared to previous Intel 10th or 11th-Gen platforms. Plus, Nuvo-10108GC supports ECC memory to deliver mission-critical computation, e.g., automated driving in urban traffic. It inherits a proven thermal dissipation design for the CPU and GPU to guarantee -25°C to 60°C wide-temperature operation. Featuring an innovative GPU locking bracket to fasten the GPU to the chassis and Neousys' patented damping bracket to absorb high-frequency vibration allowing Nuvo-10108GC to thrive in continuous shaking and juddering conditions in on/ off highway applications.
Nuvo-10108GC incorporates an abundance of onboard I/Os, such as 6x USB3.2 Gen2, 3x 2.5GbE/GbE, and 1x optional 10GbE. Expansion-wise, Nuvo-10108GC offers 3x additional PCIe slots for GMSL2/ industrial camera frame grabbers and various add-on cards. Also, it provides 2x full-size mini PCI Express sockets for CAN bus/ COM expansion and 1x M.2 B key sockets for mobile connectivity with 4G LTE, 5G NR, or WiFi modules. In terms of data storage, Nuvo-10108GC offers an M.2 2280 M socket for Gen4x4 NVMe, and dual front-accessible storage options, including a 2.5" SATA HDD/SSD and an optional M.2 2280 Gen4x4 NVMe tray.
By utilizing Intel's 12th/13th-Gen platform, state-of-the-art NVIDIA RTX GPU, and Neousys' industrial-grade power, thermal and mechanical designs with rich I/O and expansion, Nuvo-10108GC is a rugged edge AI platform that offers unprecedented GPU and CPU computing power for modern AI applications.
| Manufacturer | Neousys |
|---|---|
| Short Description | Industrial Edge AI Computer Supporting a 350W NVIDIA RTX GPU and Intel 12th/13th-Gen Core Processor with Three Additional PCIe Slots. |
| Processor | Supporting Intel 12th and 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU)/ 730 (24EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel® R680E Platform Controller Hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| Ethernet Standard | I226-IT |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 1x PCIe x16 slot @Gen4, 16-lanes with 6.5 mm slot width. The standard GPU locking bracket is designed for NVIDIA RTX A4000, A5000, A6000, 6000 Ada, and selected RTX 40 Series GPU cards. |
| M.2 | 1x M.2 2242/3052 B key socket with internal SIM sockets |
| Mini PCI-E | 2x full-size mini PCI Express sockets with internal SIM sockets |
| SATA HDD | 1x front-accessible, hot-swappable HDD trays for 2.5" HDD/ SSD installation |
| DC Input | 3-pin + 4-pin pluggable terminal block for 8V to 48V DC input with ignition control |
| Dimension | 214 mm (W) x 400 mm (D) x 196 mm (H) (without damping bracket) |
| Weight | TBD |
| Mounting | Wall-mount with damping brackets |
| Operating Temperature | With 35W CPU and NVIDIA 350W GPU: -25°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 (with damping bracket) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I (with damping bracket) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Family | Intel Core, Jetson AGX Orin |
| Base CPU Speed | 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz |
| Video Output | Display Port, VGA |
| PoE Ports | 2 |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 5-6 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 4800 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, M.2 NVMe SSD |
