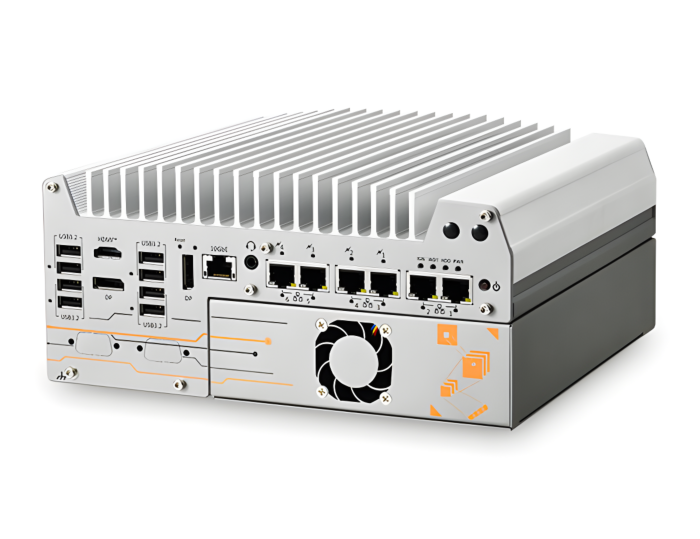

Nuvo-11160GC Series: Ruggedized Edge AI Platform Supporting 150W GPU and Intel Core Ultra 200S Series Processor
Nuvo-11160GC SeriesStarting at $1,925.00
- Supports Intel Core Ultra 200 Series 24C/24T 35W/65W LGA1851 CPU
- Supports NVIDIA RTX series GPU card up to 150W
- Rugged, -25°C to 60°C wide temperature operation
- 5x 2.5GbE and 1x GbE ports with optional PoE+ (ports 3~6)
- 1x optional 10GBASE-T Ethernet
- 8x USB 3.2 Gen2 Type-A ports
- 4-CH isolated DI and 4-CH isolated DO
- MezIO interface for easy function expansion
Frequently Asked Questions
The Nuvo-11160GC supports Intel® Core™ Ultra 200 series processors in the LGA1851 socket, with 35W and 65W TDP options. Supported models include Intel® Core™ Ultra 9 285/285T, Core™ Ultra 7 265/265T, and Core™ Ultra 5 245/245T. The chipset is the Intel® Q870E Platform Controller Hub, and the system includes an integrated Neural Processing Unit and integrated Intel Xe LPG Graphics.
Yes. The system has a PCIe x16 slot (Gen4, 16-lane) in a cassette designed for installing an NVIDIA® RTX series GPU card up to 150W. Maximum supported graphics card dimensions are 178 mm (L) x 128 mm (W), and the slot uses dual slot allocation.
The Nuvo-11160GC provides 5x 2.5GbE ports (Intel I226-IT) and 1x 1GbE port (Intel I219-LM) with screw-lock connectors. An optional 10GBASE-T Ethernet port is also available. Ports 3 through 6 support optional IEEE 802.3at PoE+ with a 100W total power budget on PoE-enabled models.
Power is supplied through a 3-pin pluggable terminal block accepting 8 to 48V DC input, rated at 20A. There is also a 10-pin (2x5) wafer connector for remote on/off control and status LED output.
With a 35W CPU and 150W GPU, the operating temperature range is -25°C to 60°C. With a 65W CPU and 150W GPU, the range is -25°C to 60°C when configured as 35W TDP, or -25°C to 50°C when configured as 65W TDP. Storage temperature range is -40°C to 85°C. Note: for sub-zero operating temperatures, a wide temperature HDD/SSD/NVMe is required.
The system supports up to 128 GB DDR5 6400 SDRAM across two SODIMM slots. For storage, it has 2x internal SATA ports for 2.5" HDD/SSD installation (supporting RAID 0/1) and 1x M.2 2280 M-key NVMe socket (PCIe Gen5x4) for an NVMe SSD.
The Nuvo-11160GC has 8x USB 3.2 Gen2 Type-A ports plus 1x internal USB 2.0 port with Type-A connector. Serial connectivity includes 2x software-programmable RS-232/422/485 ports (COM1/COM2) and 2x 3-wire RS-232 ports (COM3/COM4).
Yes, it includes 4-channel isolated digital input (DI) and 4-channel isolated digital output (DO) for factory automation integration.
The unit measures 240 mm (W) x 225 mm (D) x 111 mm (H) and weighs 3.89 kg. It supports wall-mount (standard) or an optional damping bracket for mounting.
The Nuvo-11160GC has a MezIO® expansion port for Neousys MezIO® modules, which can add functions such as additional USB ports (MezIO®-U4), additional GbE ports (MezIO®-G4 or PoE+ variant MezIO®-G4P, PoE models only), additional isolated DIO (MezIO®-D220/D230/D330), or additional serial ports (MezIO®-C180/C181). It also has 2x full-size mini PCI Express sockets, which can support 4G/5G module expansion for remote operation.
The system meets CE/FCC Class A EMC standards according to EN 55032 & EN 55035. It is also rated for operating vibration per MIL-STD-810H Method 514.8 Category 4 and operating shock per MIL-STD-810H Method 516.8 Procedure I, both with the optional damping bracket.
There are three models in the series: the base Nuvo-11160GC; the Nuvo-11160GC-PoE, which adds the option of 802.3at PoE+ PSE for 2.5GbE ports 3 to 6; and the Nuvo-11160GC-PoE-10G, which adds both the 10GbE port and the same PoE+ option on ports 3 to 6.
How-to Guides
- Confirm the GPU card fits within the maximum supported dimensions of 178 mm (L) x 128 mm (W) and does not exceed 150W power draw.
- Install the GPU into the PCIe x16 (Gen4, 16-lane) slot located in the cassette design of the chassis.
- Allocate the dual slot space required for the card as specified.
- Optionally use the AccsyBx-Cardholder-11160GC GPU bracket kit for selected GPUs to secure the card; contact Neousys for compatible bracket details.
- For 2.5" HDD/SSD storage, use one of the 2x internal SATA ports; these support RAID 0/1 configuration if two drives are installed.
- For NVMe storage, install a compatible NVMe SSD into the 1x M.2 2280 M-key socket (PCIe Gen5x4).
- If deploying the unit in sub-zero operating temperatures, ensure a wide temperature-rated HDD/SSD/NVMe drive is used.
- Locate the 3-pin pluggable terminal block on the unit for DC power input.
- Connect a DC power source rated between 8 and 48V, ensuring the supply can provide up to the rated 20A.
- Optionally, use the remote on/off control and status LED output via the 10-pin (2x5) wafer connector for remote power management.
- Select the appropriate MezIO® module for the needed function, e.g. MezIO®-U4 for additional USB 3.1 ports, MezIO®-G4 for additional GbE ports, or MezIO®-D330 for additional isolated DIO.
- Connect the module to the 1x MezIO® expansion port on the Nuvo-11160GC.
- Note that the MezIO®-G4P (PoE+ ports) module is only supported on the Nuvo-11160GC-PoE and Nuvo-11160GC-PoE-10G models.
- By default, mount the Nuvo-11160GC using the standard wall-mount option.
- For applications requiring vibration/shock resistance per MIL-STD-810H, install the optional damping bracket (Dmpbr-Nuvo9160, which is compatible with Nuvo-11160GC).
The Nuvo-11160GC is CoastIPC's latest rugged, wide-temperature edge AI platform built on the Intel Core Ultra 200S series processor with support for NVIDIA RTX GPU cards up to 150W. With high-performance density and comprehensive I/O connectivity, it is ideal for demanding edge AI applications across both fixed and mobile deployments in indoor and outdoor environments, such as AI-driven vision inspection, video analysis, and autonomous mobile robots.
Designed for demanding real-world applications, the Nuvo-11160GC simplifies connecting sensors and control devices through extensive I/O. Its compact form factor enables deployment in space-constrained environments. For stationary use cases such as vision-based robotic guidance, AI-driven vision inspection, and video analysis, it offers 8x USB 3.2 Gen 2 ports and 6x Gigabit Ethernet ports for multi-camera setups, 4-channel isolated digital input and 4-channel isolated digital output for factory automation integration, and an optional 10GbE port for high-bandwidth communication. For greater I/O and functionality, the patented MezIO interface enables flexible expansion: the MezIO-U4 adds 4 additional USB 3.1 ports, the MezIO-G4 adds 4 additional Gigabit Ethernet ports, and the MezIO-D330 adds 16-channel DIO.
For more demanding mobile robot applications such as AMRs and outdoor delivery robots, the optional built-in PoE+ capability simplifies GigE camera deployment, while mini PCIe slots support 4G/5G module expansion for remote operation. A proven thermal design, featuring the patented segregated cassette with an upgraded GPU cooling fan, ensures reliable performance across a wide temperature range of -25°C to 60°C, making it well-suited for outdoor environments. On the power-efficiency side, the Intel Core Ultra 200S delivers 1.2 times the CPU performance while consuming only 80% of the power of the previous generation, enabling longer battery life for mobile robotics.
By integrating the latest Intel Core Ultra 200S platform with support for up to 150W Blackwell GPU, a rugged wide-temperature design, and flexible I/O expansion within a compact footprint, the Nuvo-11160GC is an ideal edge AI platform for both stationary and mobile applications.
| Short Description | The Nuvo-11160GC is CoastIPC's latest rugged, wide-temperature edge AI platform built on the Intel Core Ultra 200S series processor with support for NVIDIA RTX GPU cards up to 150W. With high-performance density and comprehensive I/O connectivity, it is ideal for demanding edge AI applications across both fixed and mobile deployments in indoor and outdoor environments, such as AI-driven vision inspection, video analysis, and autonomous mobile robots. |
|---|---|
| Graphics | Integrated Intel Xe LPG Graphics |
| Memory | Up to 128 GB DDR5 6400 SDRAM (two SODIMM slots) |
| Chipset | Intel Q870E Platform Controller Hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget |
| Video Port | 1x HDMI, supporting 3840 x 2160 resolution 2x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| PCI Express | 1x PCIe x16 slot@Gen4, 16-lanes PCIe signal in Cassette for installing NVIDIA GPU up to 150W (Max. graphics card dimension is 178 mm(L) x 128 mm(W), dual slot allocation) |
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD |
| SATA HDD | 2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/1 |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input, rated current 20A |
| Remote Ctrl. & Status Output | 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 3.89kg |
| Mounting | Wall-mount (standard) or damping bracket (optional) |
| Operating Temperature | With 35W CPU and 150W GPU: - Range: -25°C to 60°C With 65W CPU and 150W GPU: - Range: -25°C to 60°C (configured as 35W TDP) For sub-zero operating temperatures, a wide-temperature HDD/SSD/NVMe is required. |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | Operating, MIL-STD-810H, Method 514.8, Category 4 (with optional damping bracket) |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I (with optional damping bracket) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
